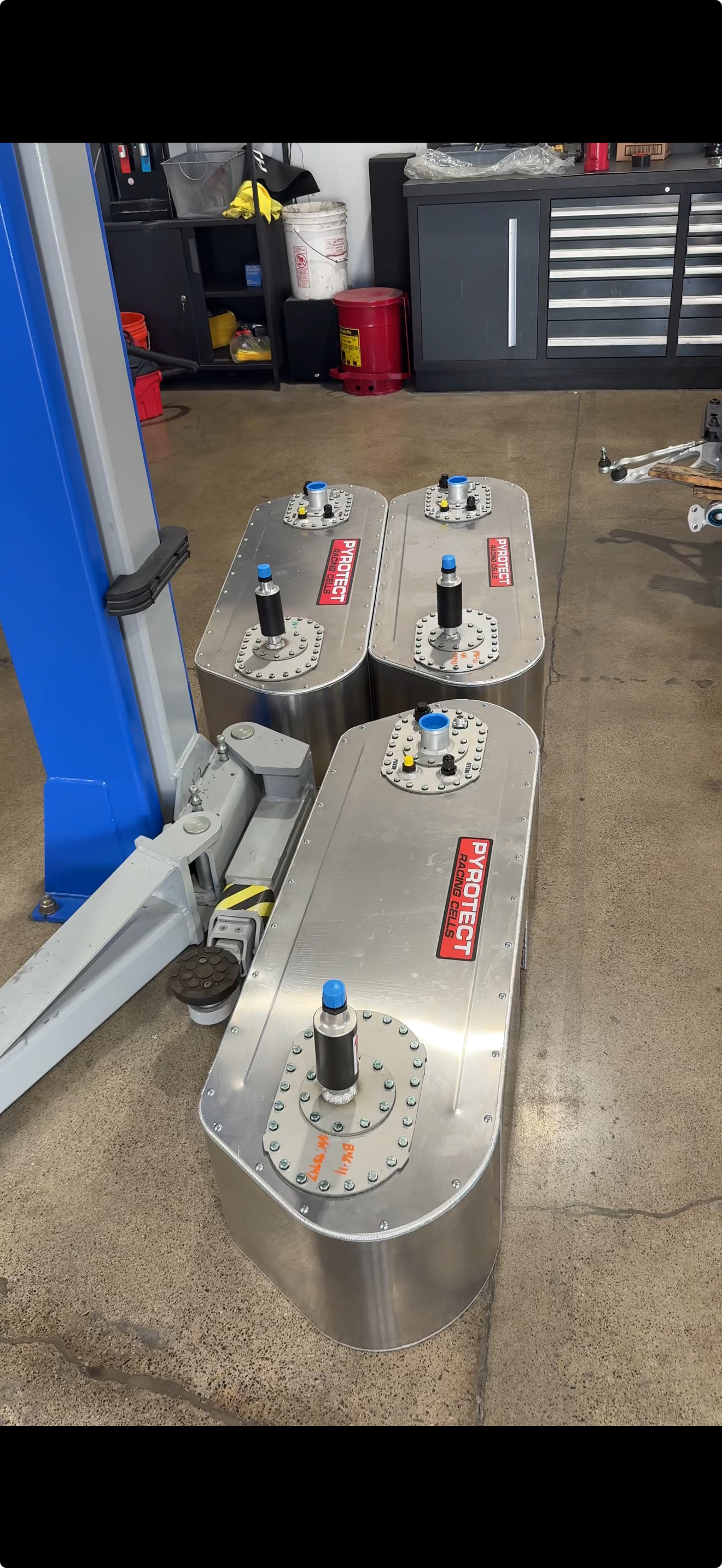

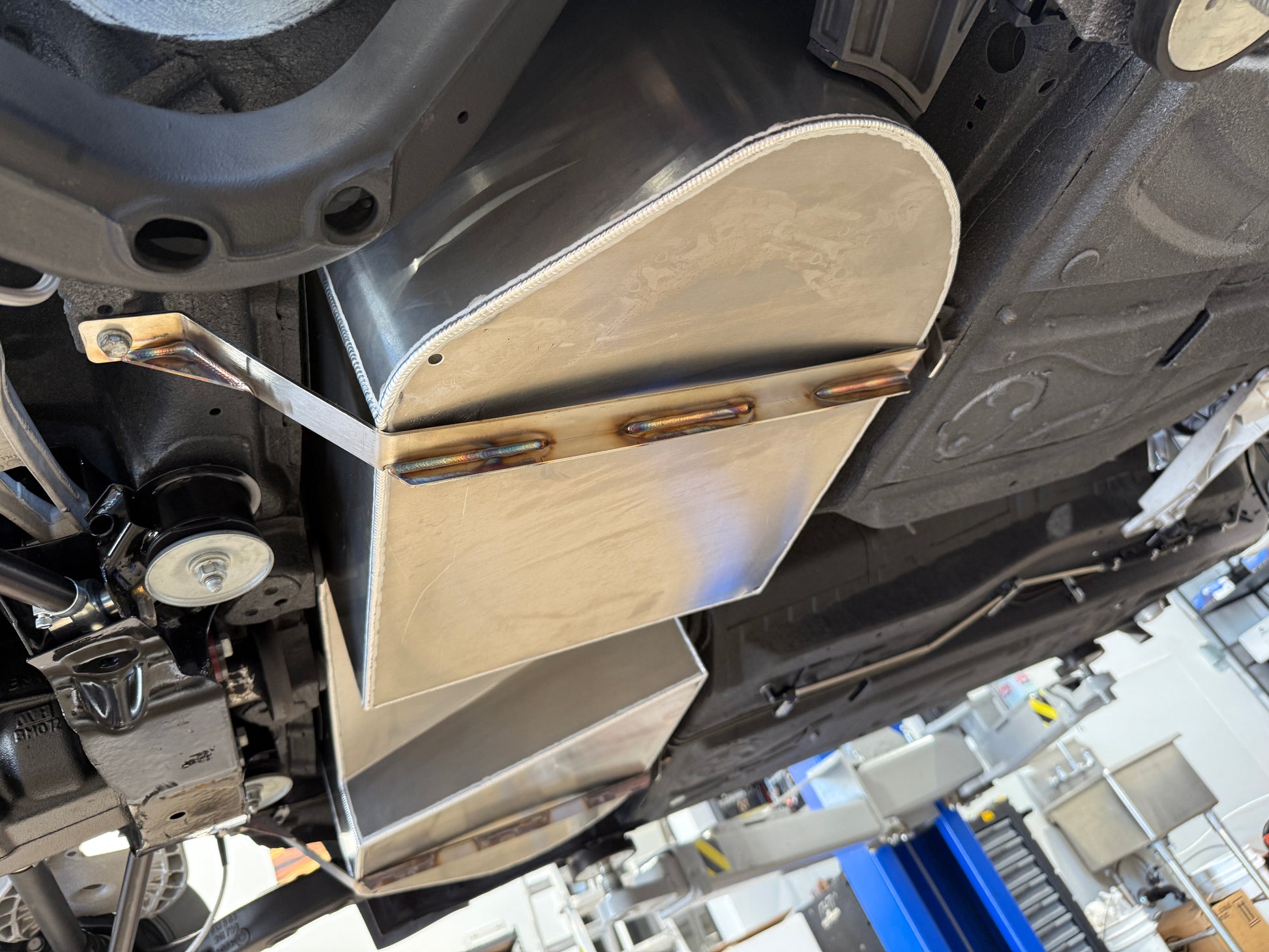

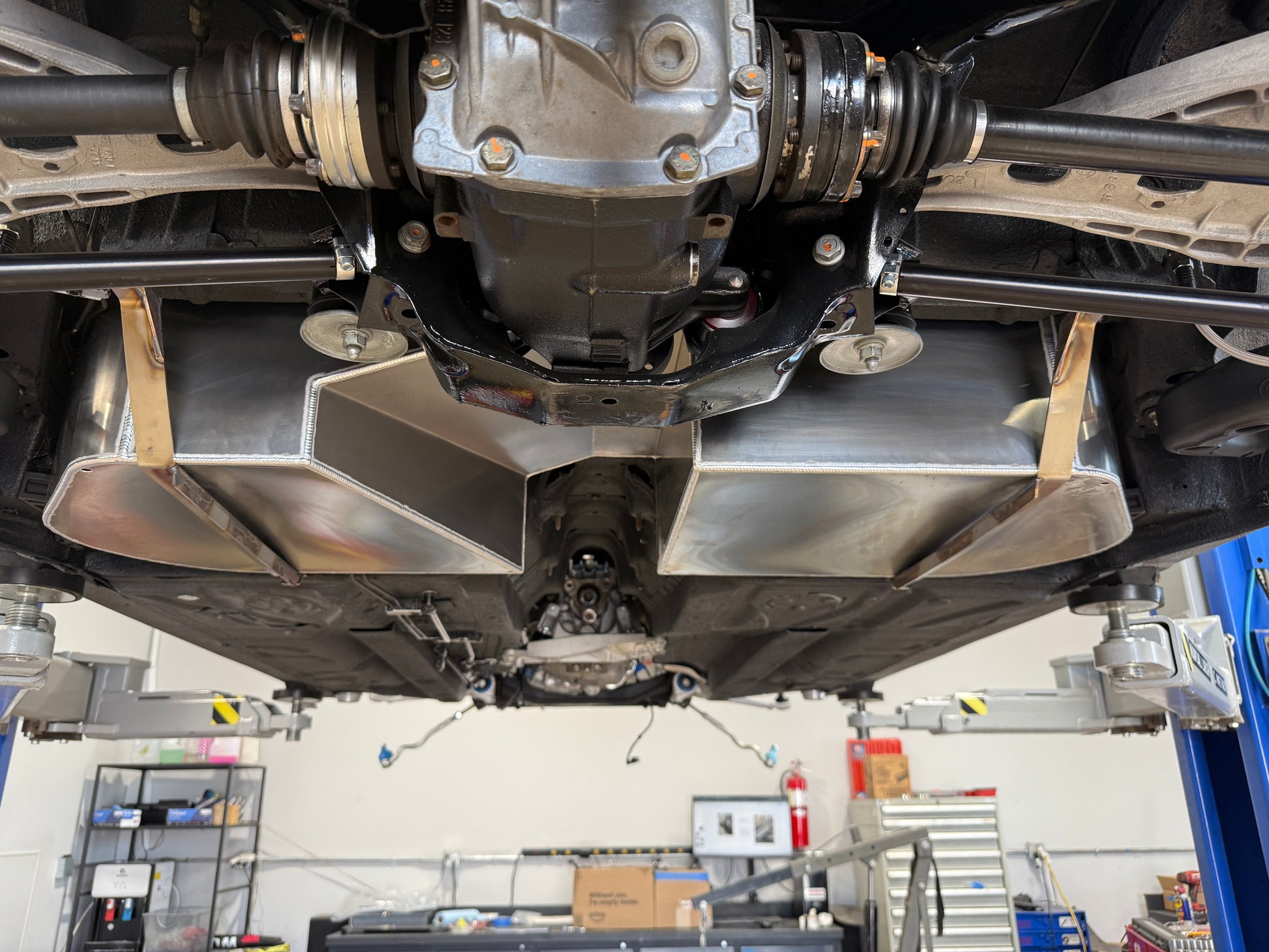

Designed in house for our B46 Race Car and manufactured by Pyrotect. We designed this cell to mount perfectly in the center of the car and leave room for the driveshaft and exhaust.
Meets FIA FT3 standards
Dual Walbro GSL 392 - 255LPH Fuel Pumps
Dual Holley 15x8" Hydramats
Duel internal return so pumps do not run dry
Bulkhead electric connector, built in roll over vent valve. Opening on the right side for fuel level sensor (not provided).
26 Gallon capacity
Designed to fit a coupe
Optionally omit plumbing
As delivered with the internal plumbing the cell includes internal wiring and plumbing. We designed this for the B46 which is somewhat specific. Currently both fuel pumps pickup individually from the hydramats and send the fuel to a manifold and then out of the cell. Fuel out and fuel return is on the left side of the cell. The right side fuel pump can run dry if the car is left to idle for a long time so it recommended to run a power module that shuts the right side pump down when the car is not moving. We combine the pumps at an internal manifold so the car can continue to run if one pump has failed but it will starve for fuel in left hand corners when low.
Available with mounting kit and cover plate. Will be posted on website shortly.
Contact us for custom shipping quote. Otherwise average freight is added at $350.
