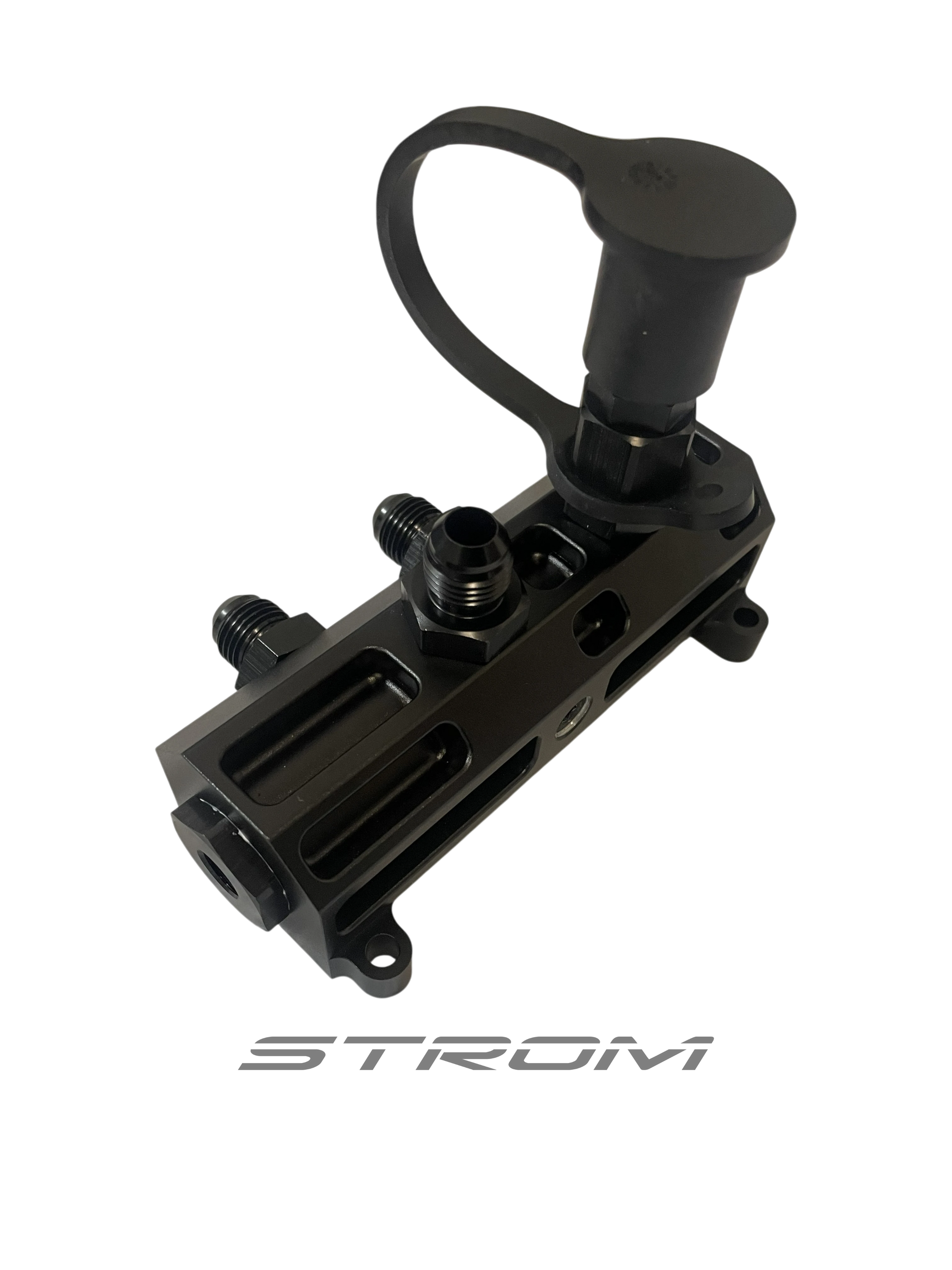

Fuel Distribution Block for our B46 race cars and B48 engine retrofits where multiple sensors and lines are needed.
Made from 3D printed aluminum
Used specifically on our B48 engine setup but can be used for other purposes.
Puts lots of fittings in one easy spot. Holes in the block are tapped for (4) -6AN ORB, (1) -8 ORB and (1) ⅛” NPT.
Includes:
7bar WHP fuel pressure sensor with connector
Jiffy 2000 Series Female Quick Connect with valve in the block as well as its mating connector 21506JD to be used for fuel drain
(3) -6AN connections - used on our setup for fuel pressure inlet, outlet to direction injection, outlet to port injection

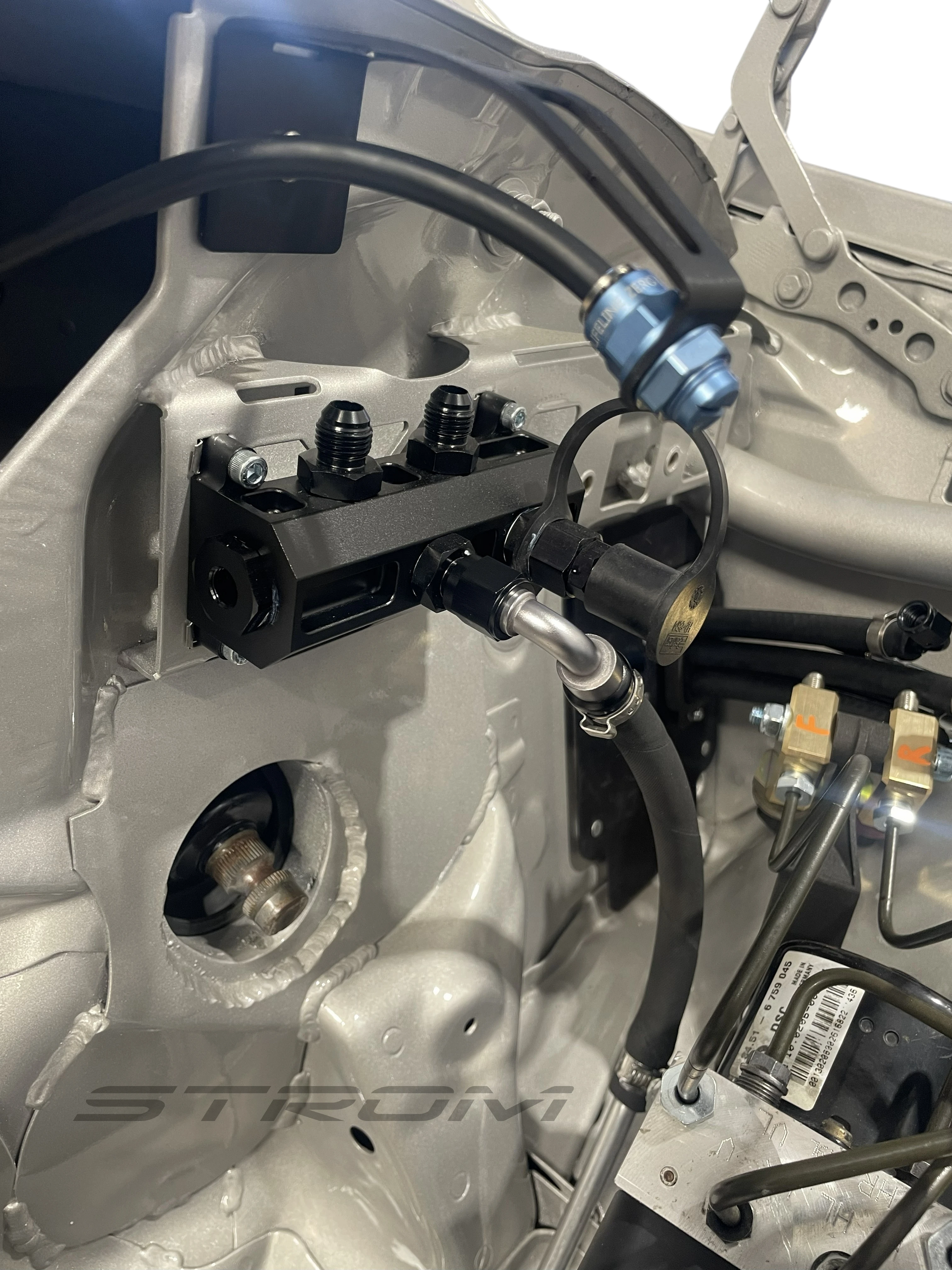

**Shown with Radium fuel pulse damper which is not included and not recommended for this application. This port will be provided with a plug to cap or can be used for another inlet/outlet like to a fuel pressure regulator on a return system.
