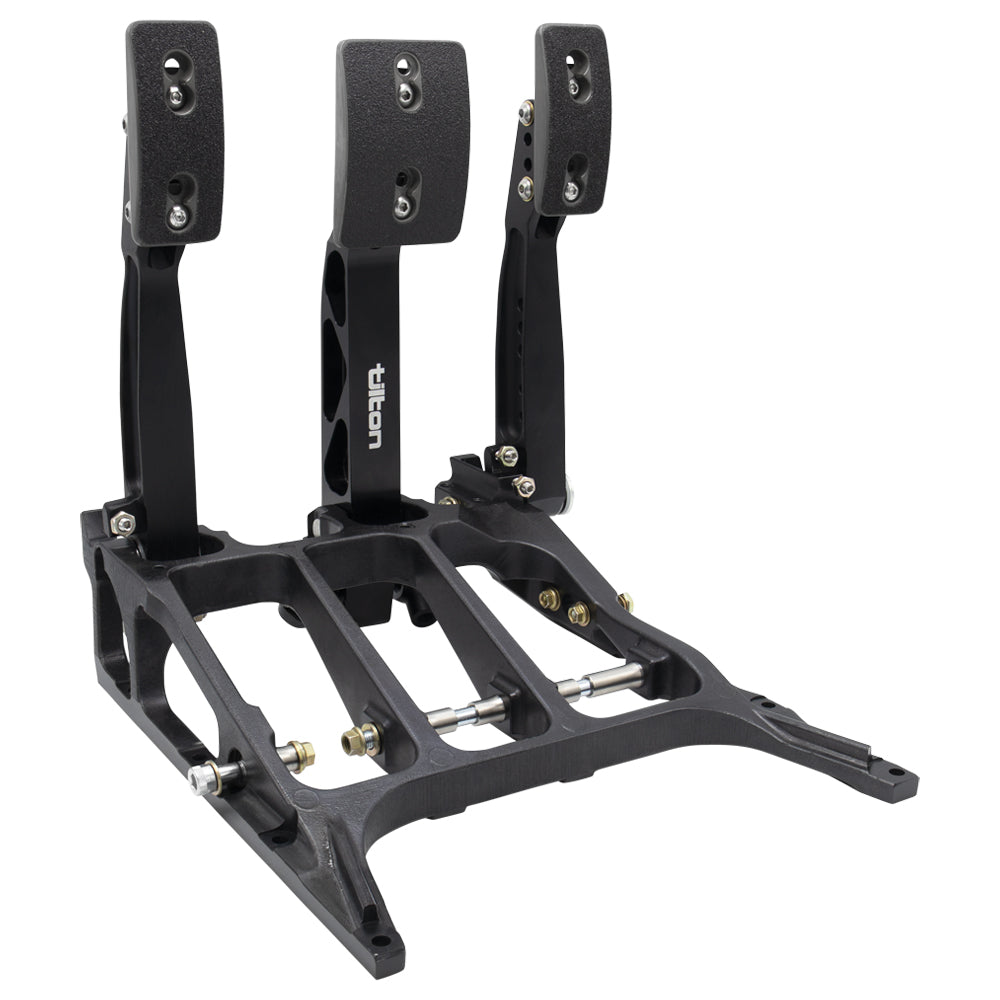

850-Series 3-Pedal Underfoot Pedal Assembly

The pedal assembly we trust for our B46 race cars. This usually fits with a number of other components so contact us to purchase multiple parts and save some cash.

Does require Masters, brake balance bar and usually a throttle pedal sensor add on

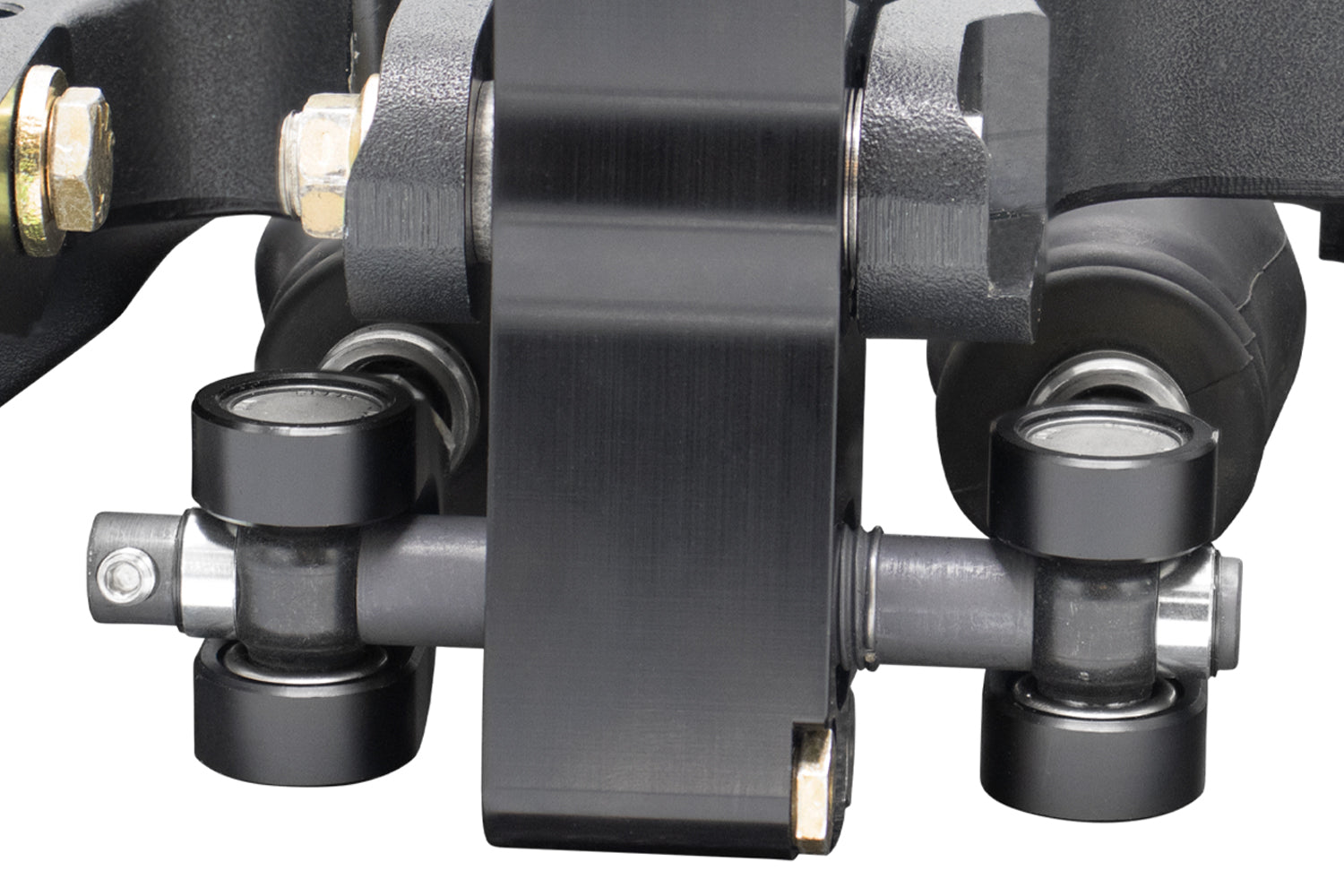

• Ultra-efficient 7/16”-20 trunnion type balance bar virtually eliminates brake migration through braking zone
• Billet aluminum brake pedal with ball bearings in pivot
• Forged aluminum throttle and clutch pedal with oil-impregnated bronze bushing in pivot
• Lightweight and high-strength aluminum frame
• Adjustable pedal ratio (4.8:1 to 6.1:1) enables the brake pedal to be tuned to driver preference without having to change master cylinder bore size
• Foot pads can be adjusted vertically, horizontally and in angle to suit individual driver preferences
• Throttle linkage kits options for mechanical linkage and Drive-by-Wire systems (sold separately)
• Weighs 7.6 lbs (does not include master cylinders)

Master Cylinders ((contact us for master sizing and pricing):
Brakes: 78-Series or 79-Series master cylinders
Clutch: 78-Series master cylinders
