E46 Brake Reservoir/ Fuel Block Mount - Digital Download

This product is a Digital Download consisting of STEP files for the parts shown and described below. Assembly instructions and parts list are included in a pdf with file purchase.

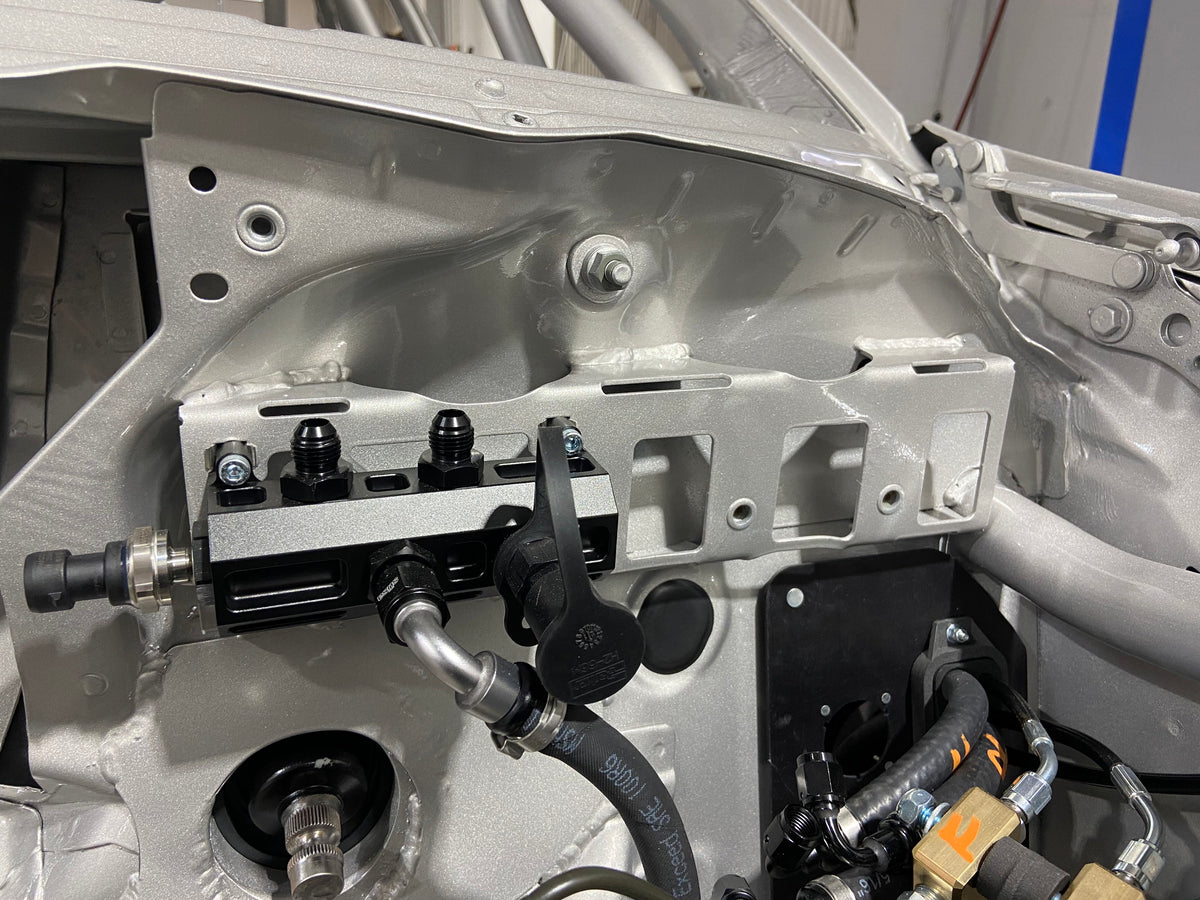

Weld-in mounting provisions for a Tilton Brake/ Clutch 3-in-1 reservoir (p/n: 72-578) and STROM Fuel distribution block.

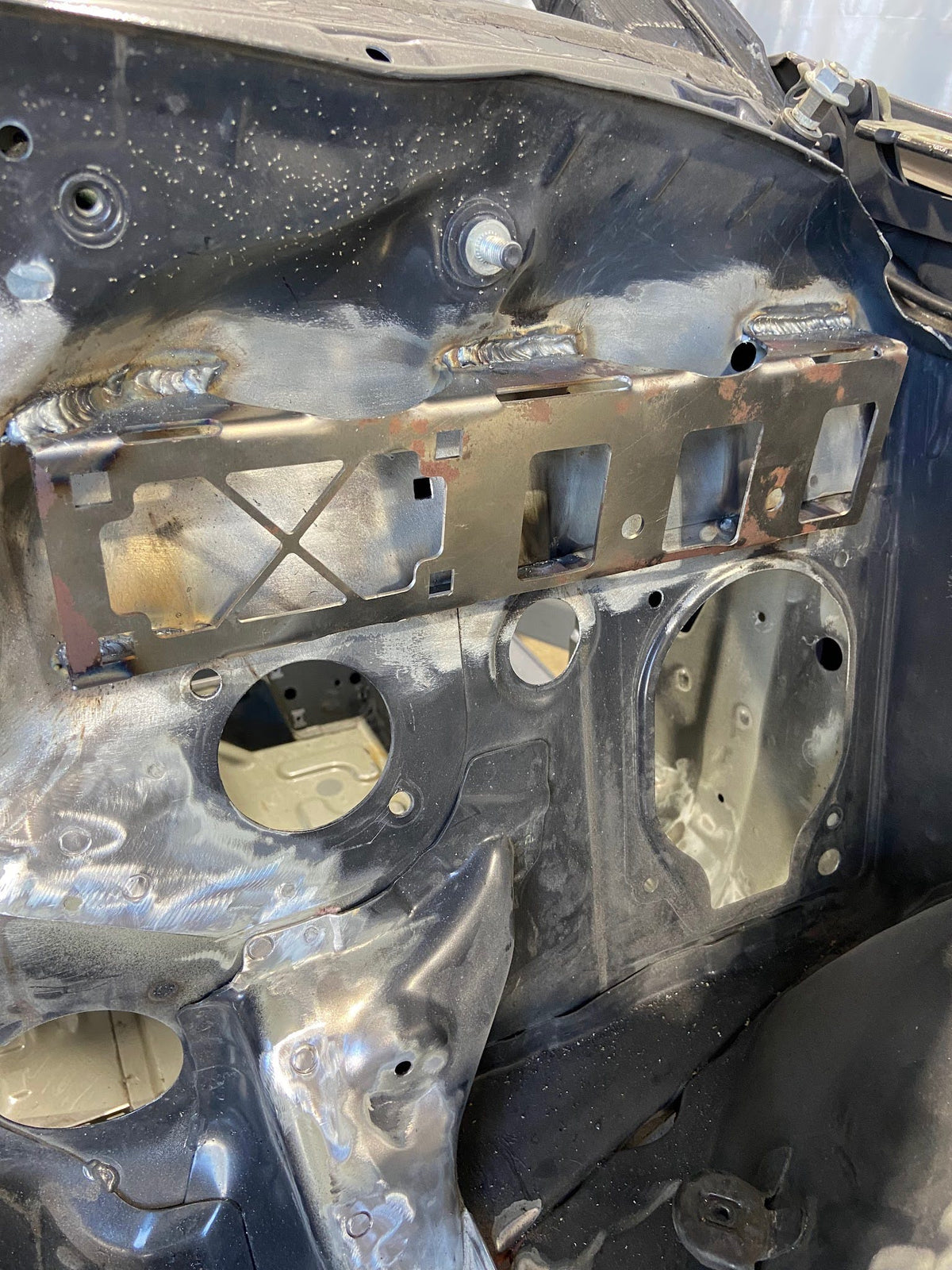

Note that this part is intended for use on a non-street application, as this requires welding the bracket to the firewall and removing the fuse box, and brake booster from the factory location.

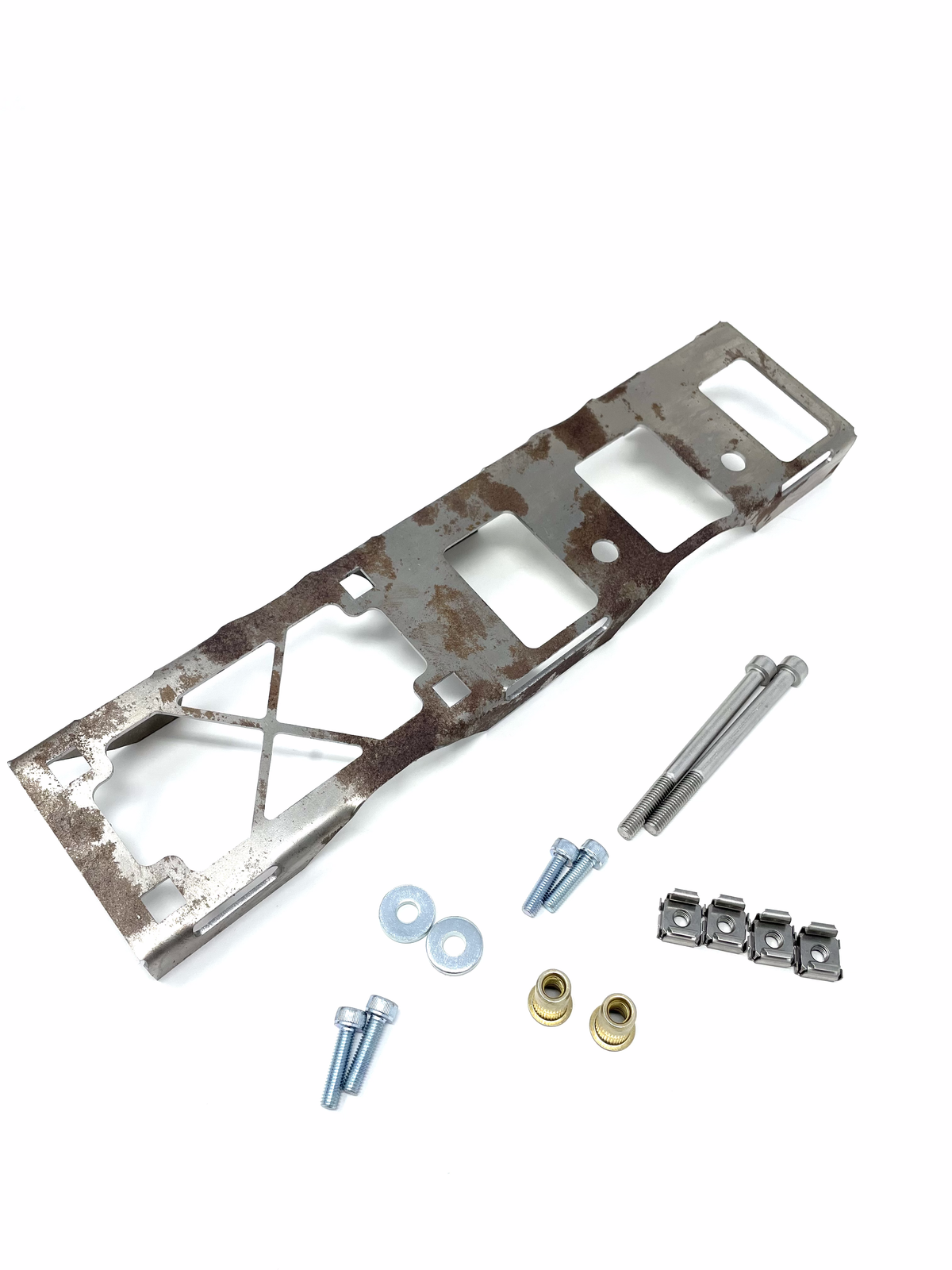

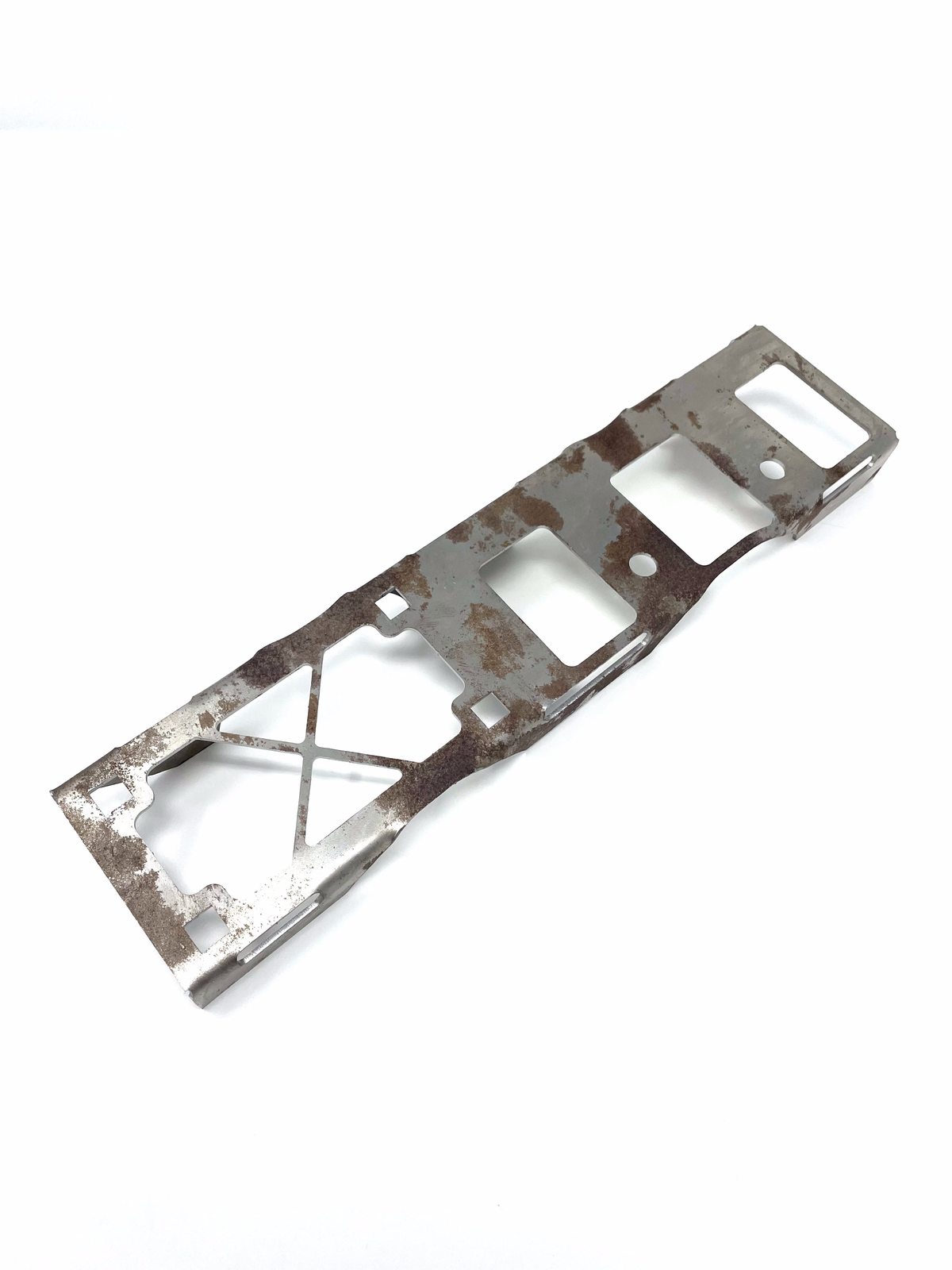

The part pictured was produced in 0.074" A36/1008 Mild sheet steel.

Assembly instructions and parts list are included in the pdf will file purchase.

By purchasing, you agree: These design files are licensed for personal use only. You may produce these designs for your own personal use but you may not resell the manufactured parts or redistribute/resell the files themselves. You may also use these designs as a starting point to design something different. If you would like to purchase this design for commercial use please contact us at info@strommotorsports.com
