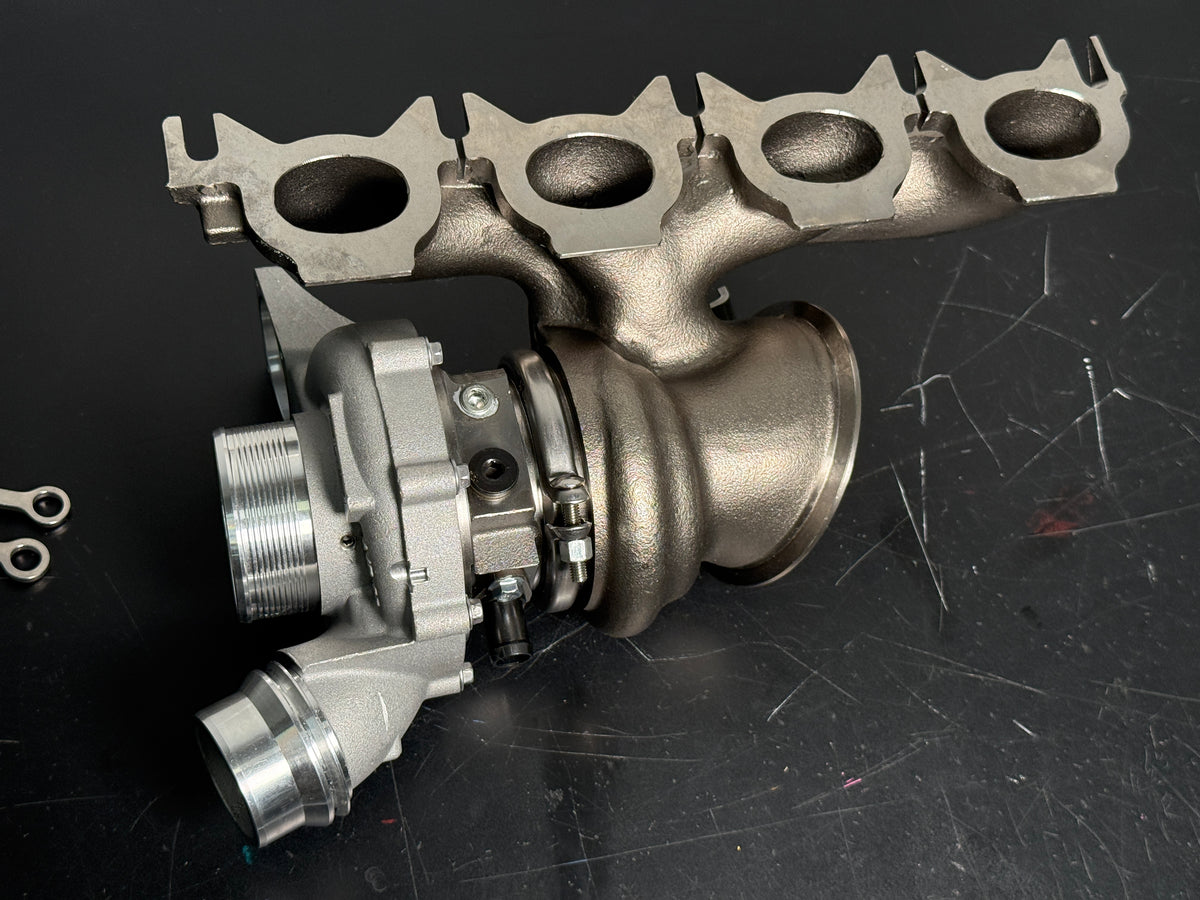

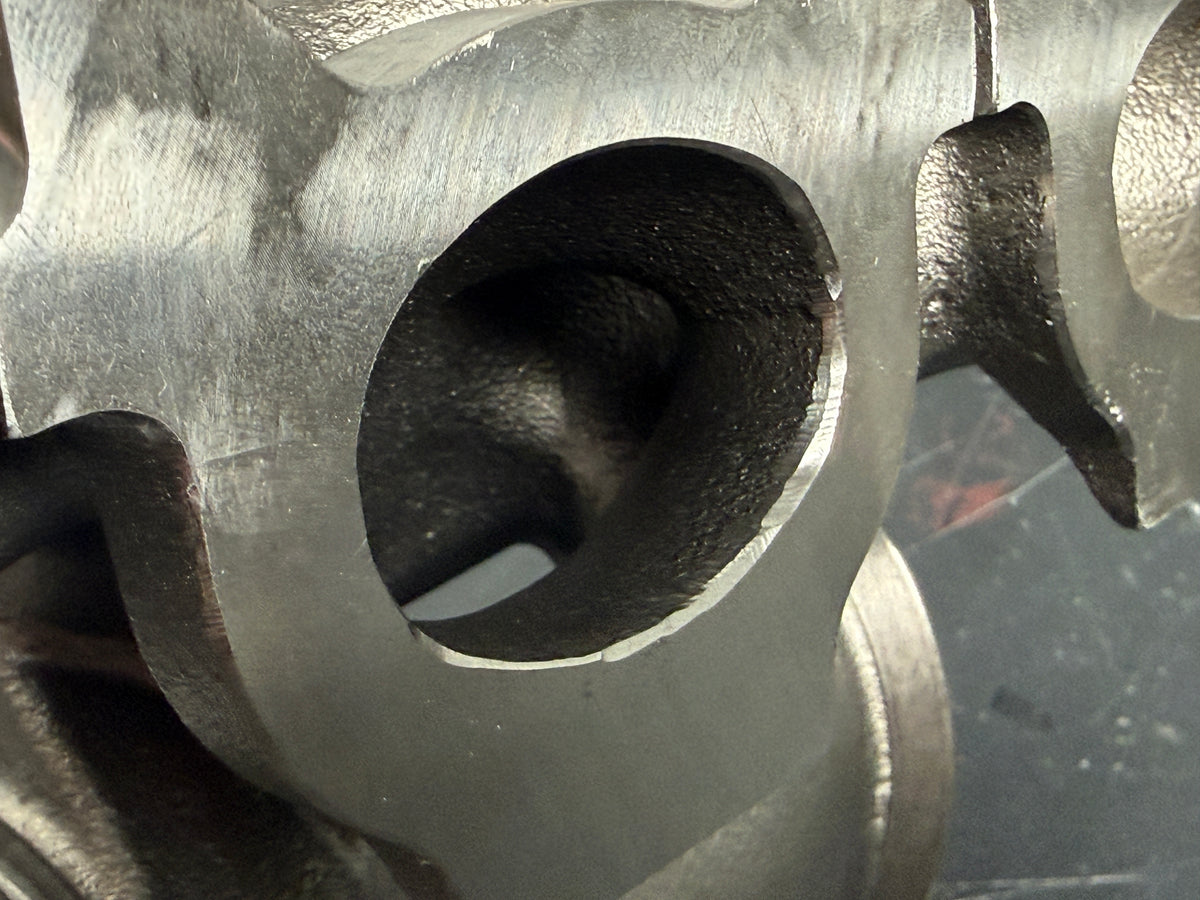

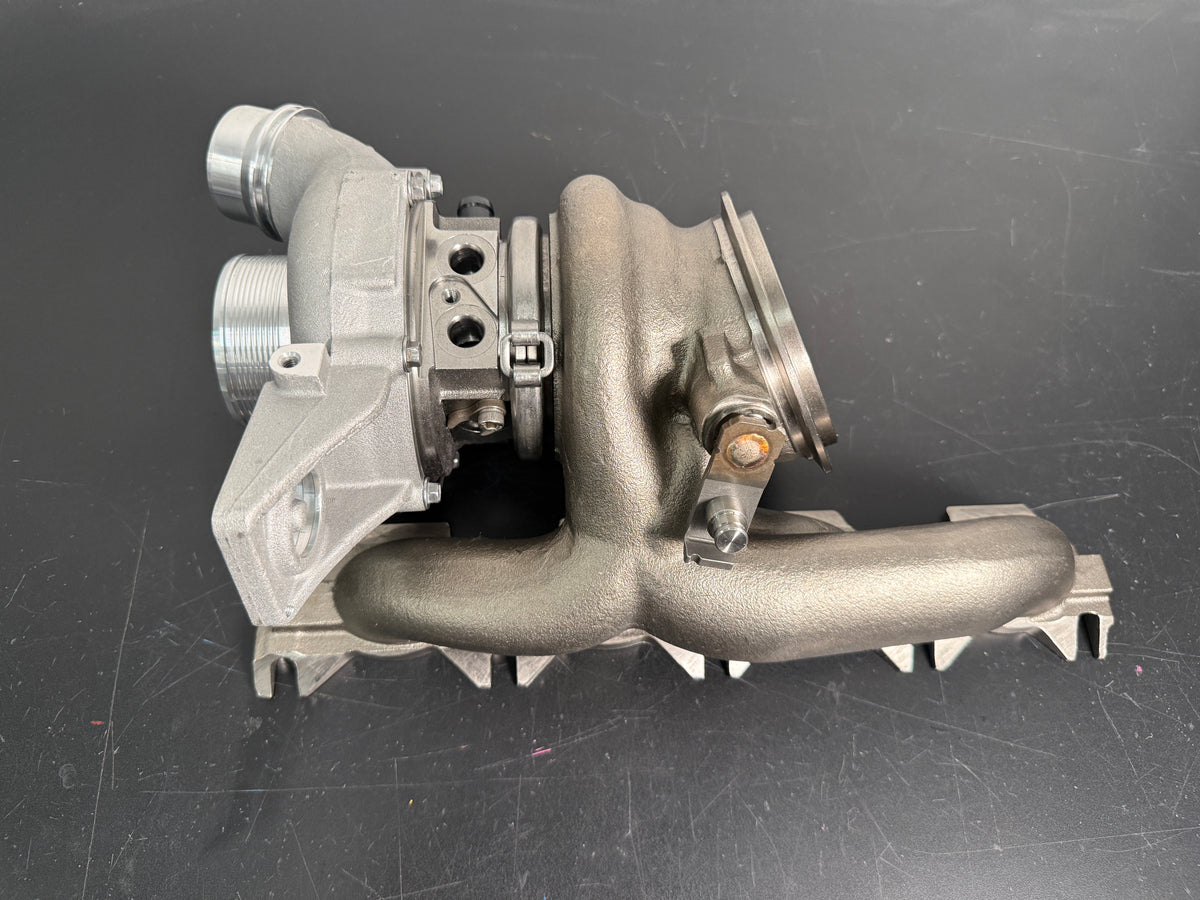

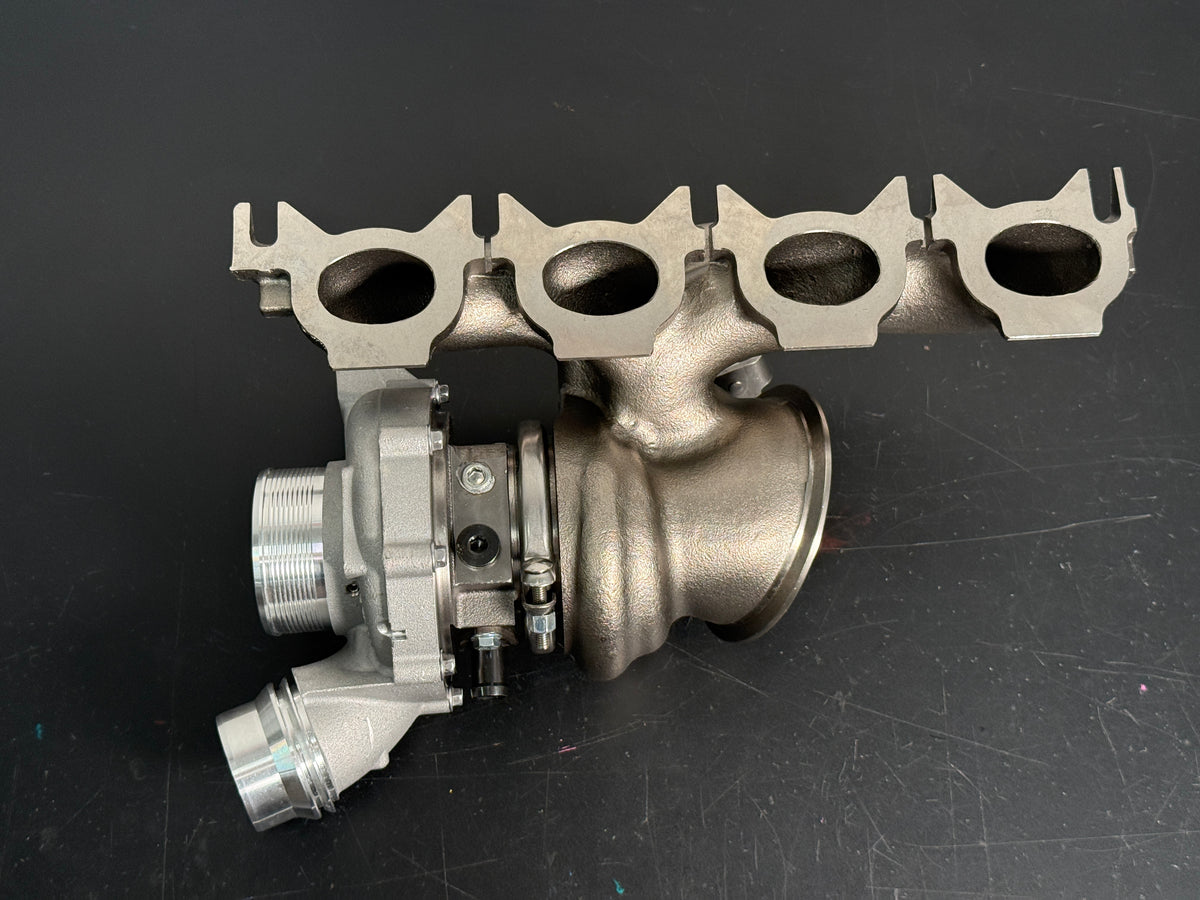

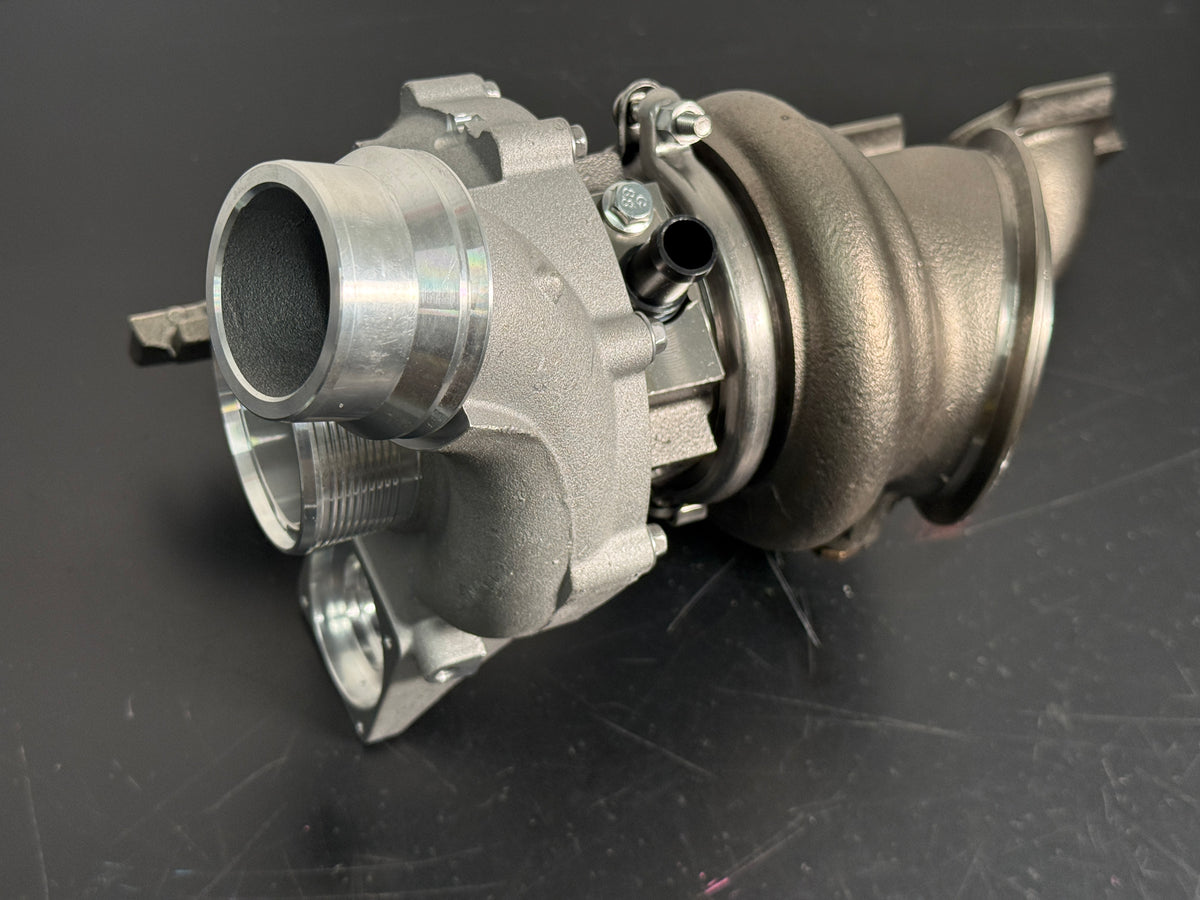

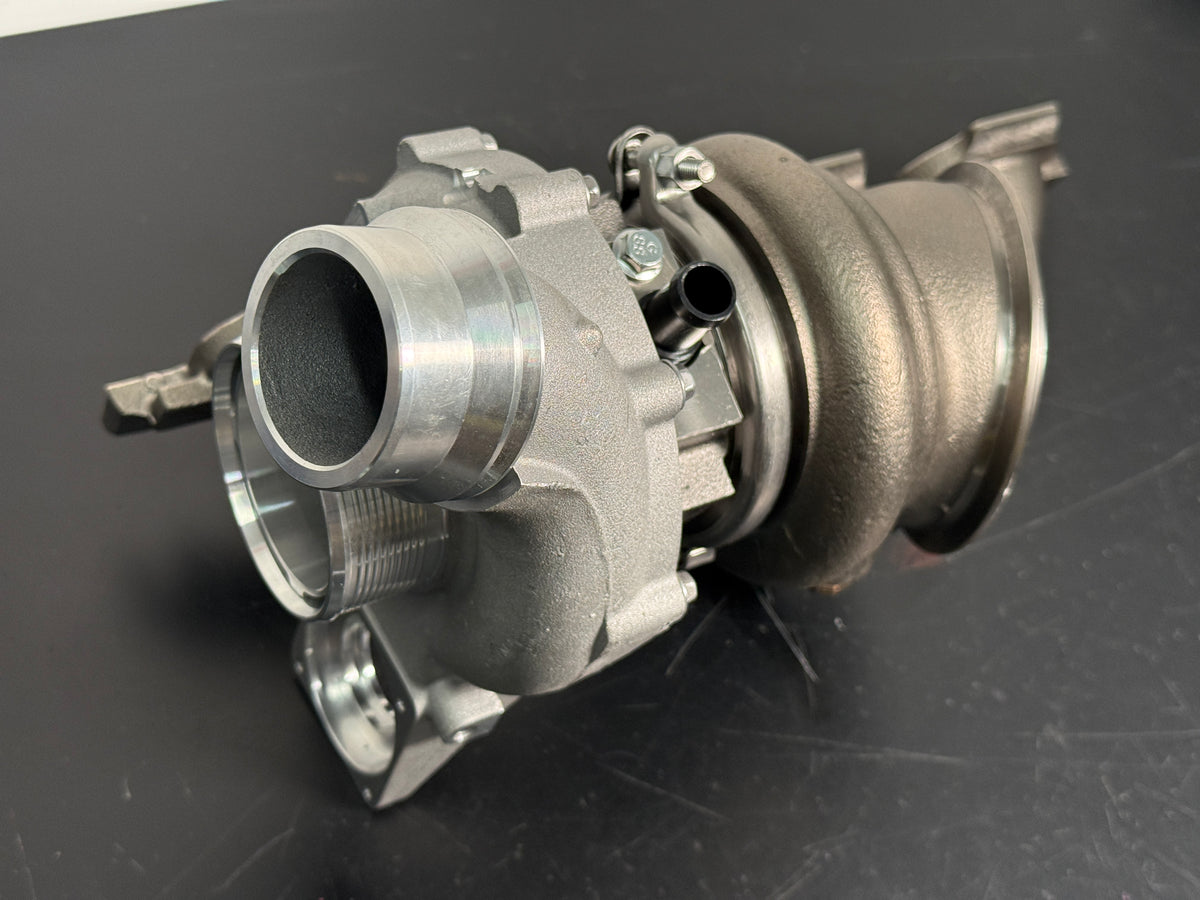

This turbocharger features nearly factory fitment. It has a larger cast exhaust manifold to allow increased flow.
The following power levels are possible depending on other factors like other engine parts, fuel, transmission (drivetrain loss), run conditions and dyno it was measured on.

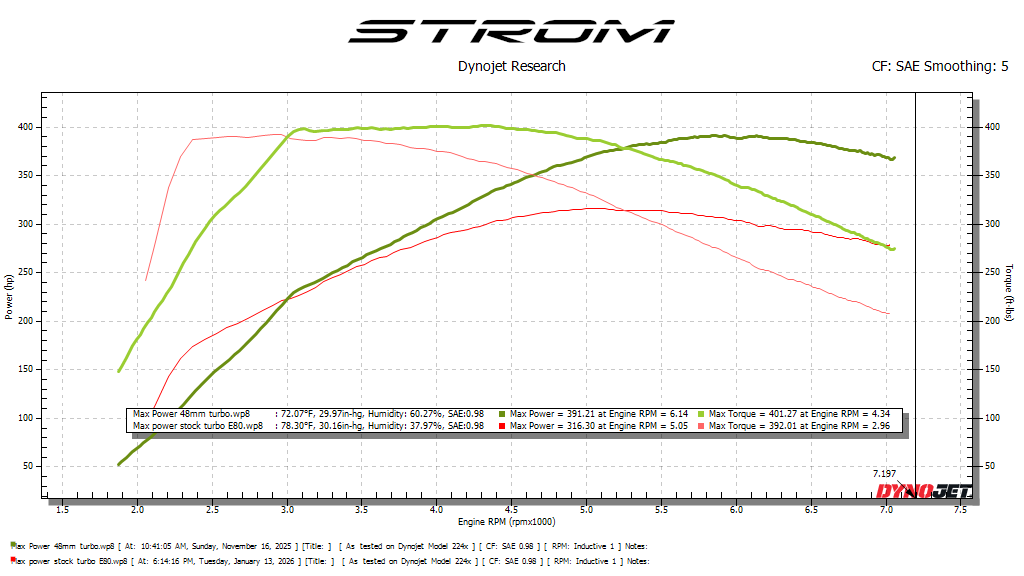

CSS48 - 48mm version good for 420whp max and 390whp sustained track use.

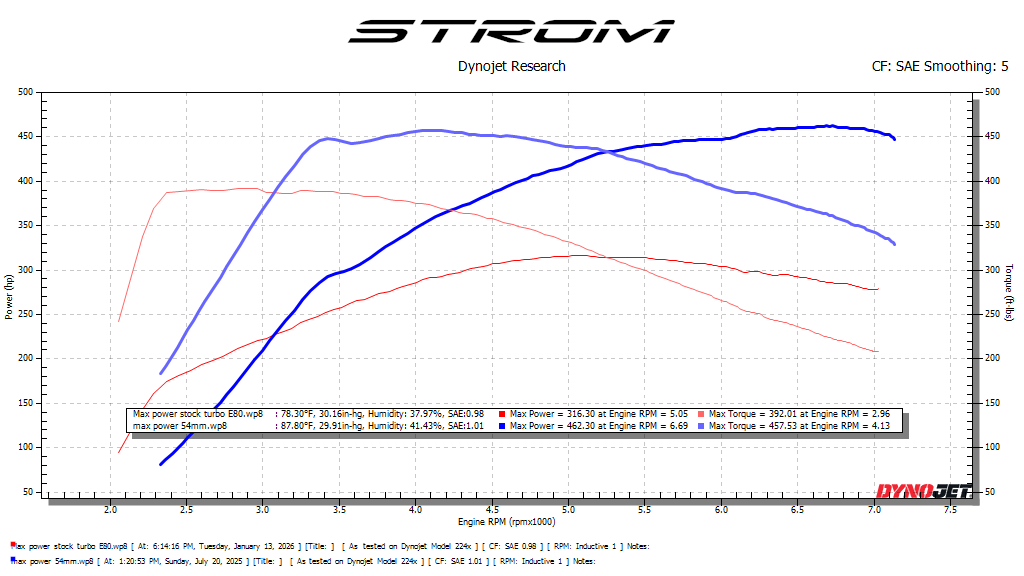

CSS54 - 54mm version good for 490whp max and 460whp sustained track use.
The turbo core has the same sizing specs as the Garrett G25-550 or G25-660. It has a ceramic ball bearing cartridge and the plumbing to match the stock B48D ( 2020-2024 G20 330i and similar) oil and coolant hoses. We have modified it further so it bolts right in and all you need is to make an intake.

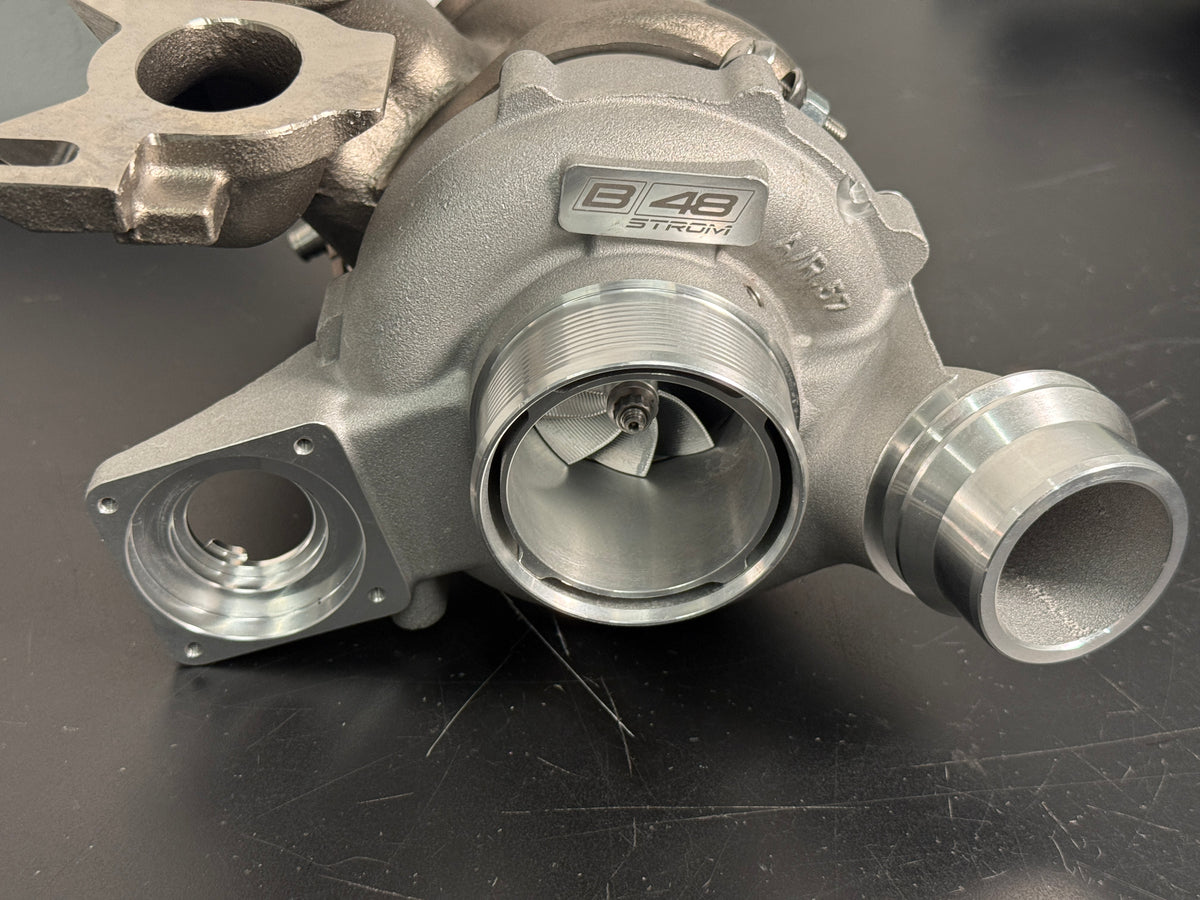

- Features a 48/60mm or 54/67mm Compressor Wheel with 0.57 AR Housing

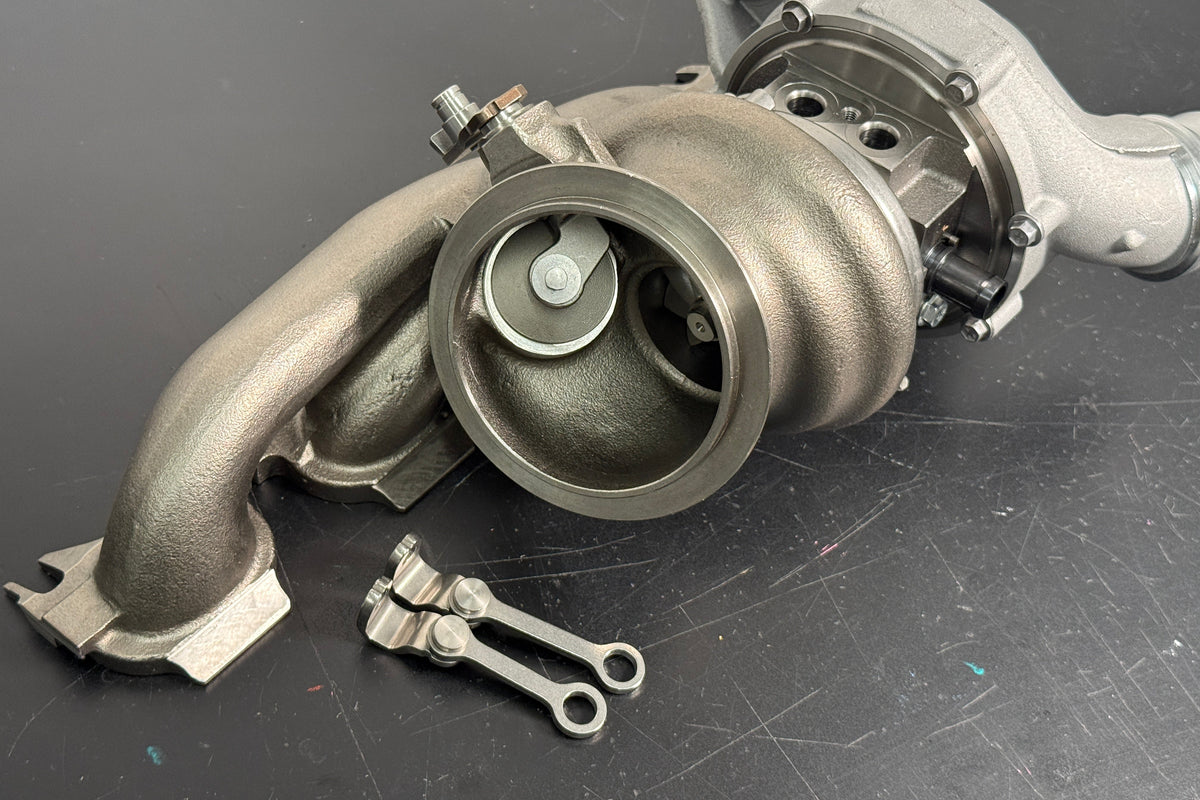

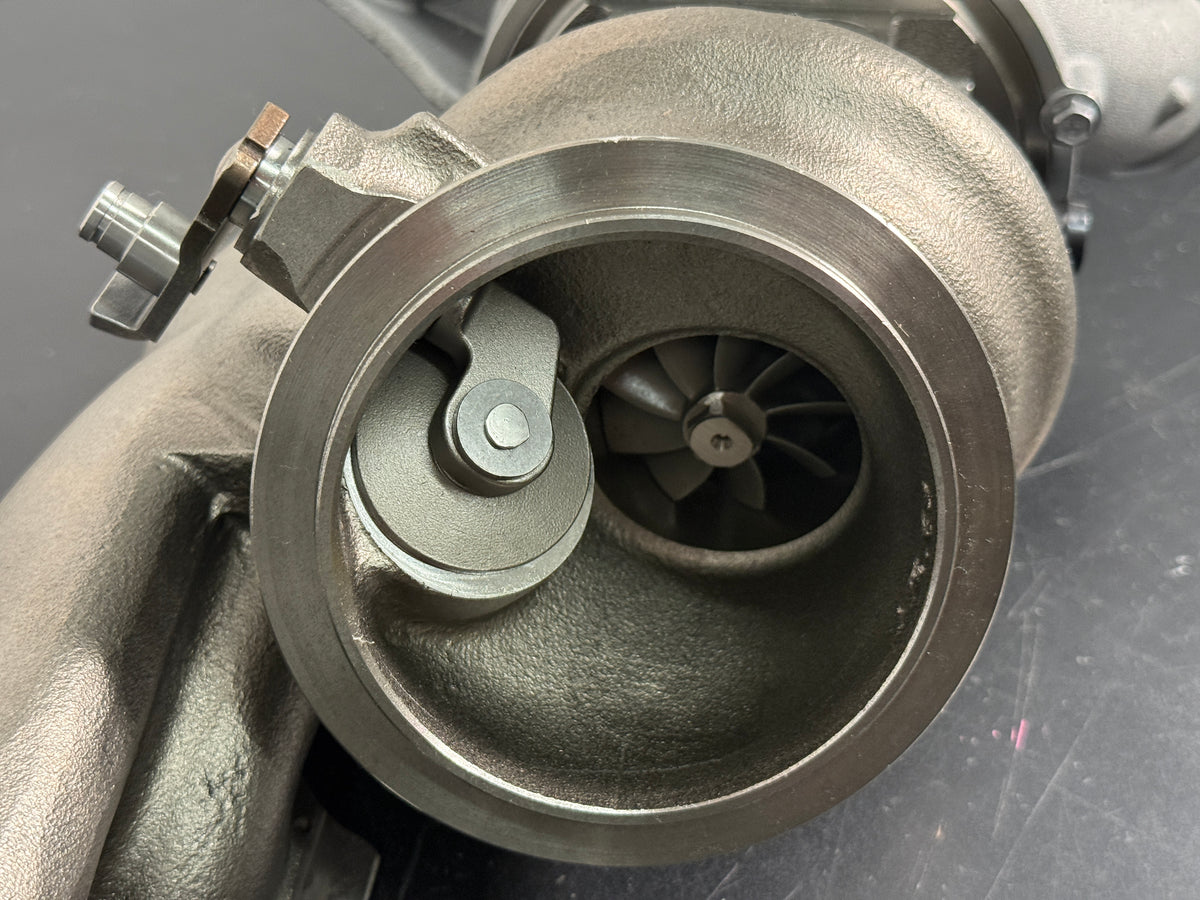

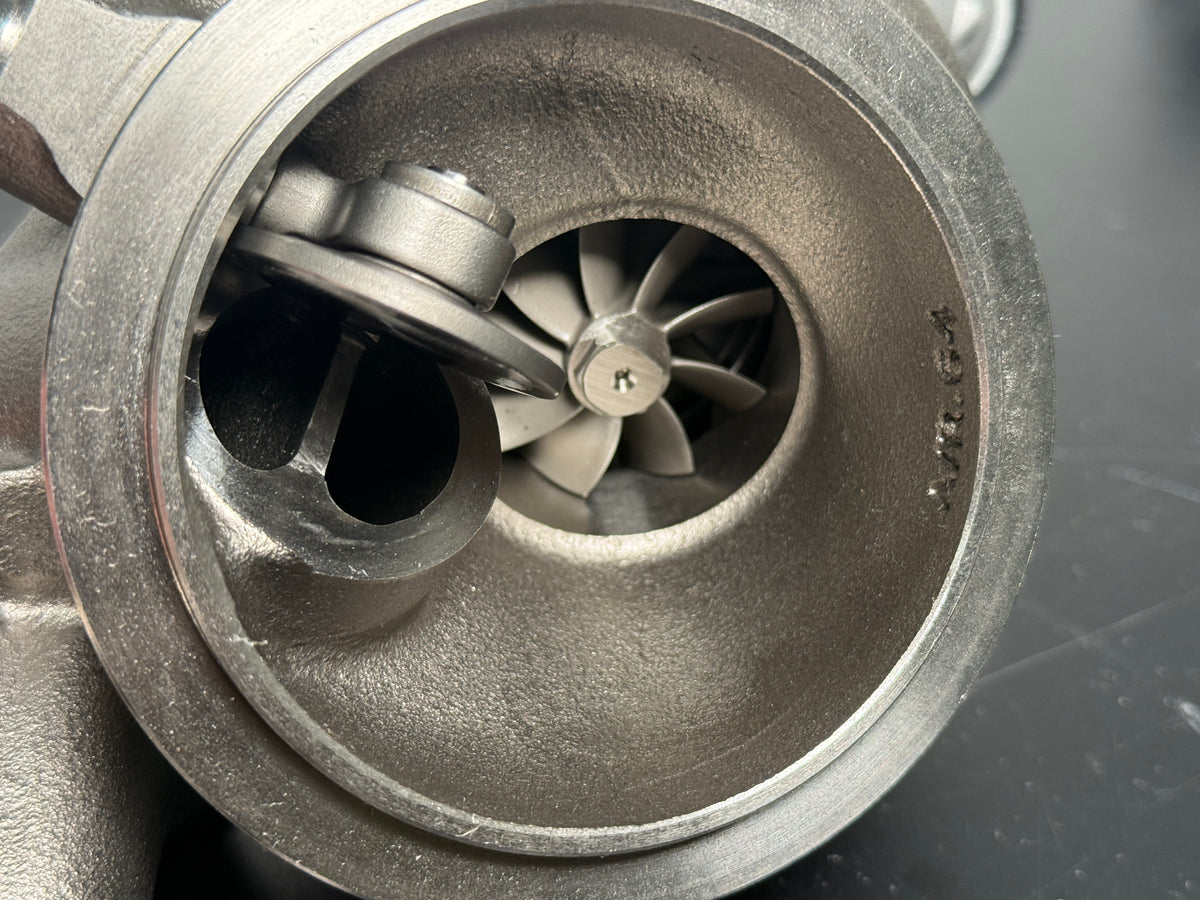

- 49/54mm Turbine with 0.64 AR Housing

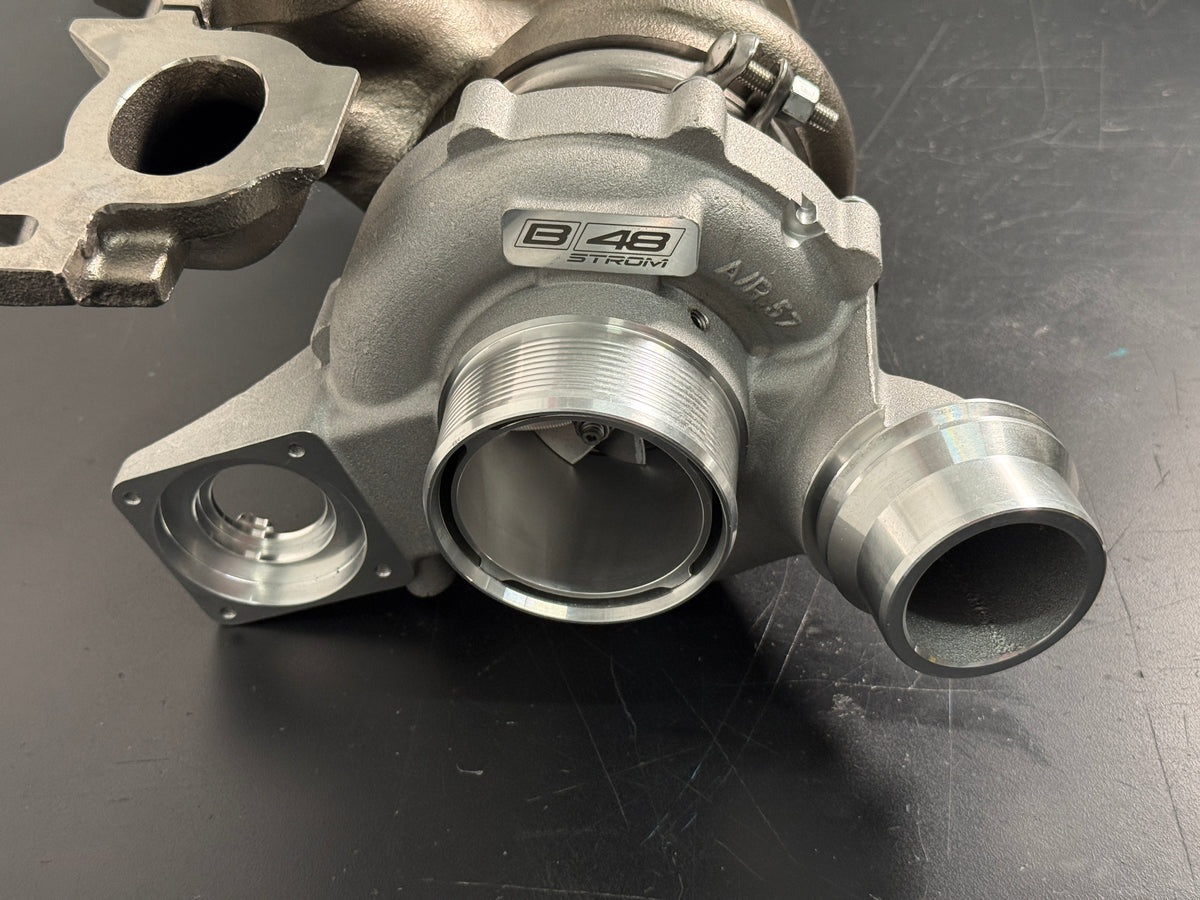

- 2.75" Inlet requires use of aftermarket or modified intake but allows for greater flow than stock housing.
- Anti-surge inlet housing.
- Depending on load these can make peak torque around 2800rpm and 3200rpm.
Installation Instructions
STROM
B48TU / B48D Upgraded Turbocharger
B48TU / B48D Upgraded Turbocharger
SKU:CSS48B48
2 in stock
Couldn't load pickup availability
As used on our B46 race cars and B48 engine packages.

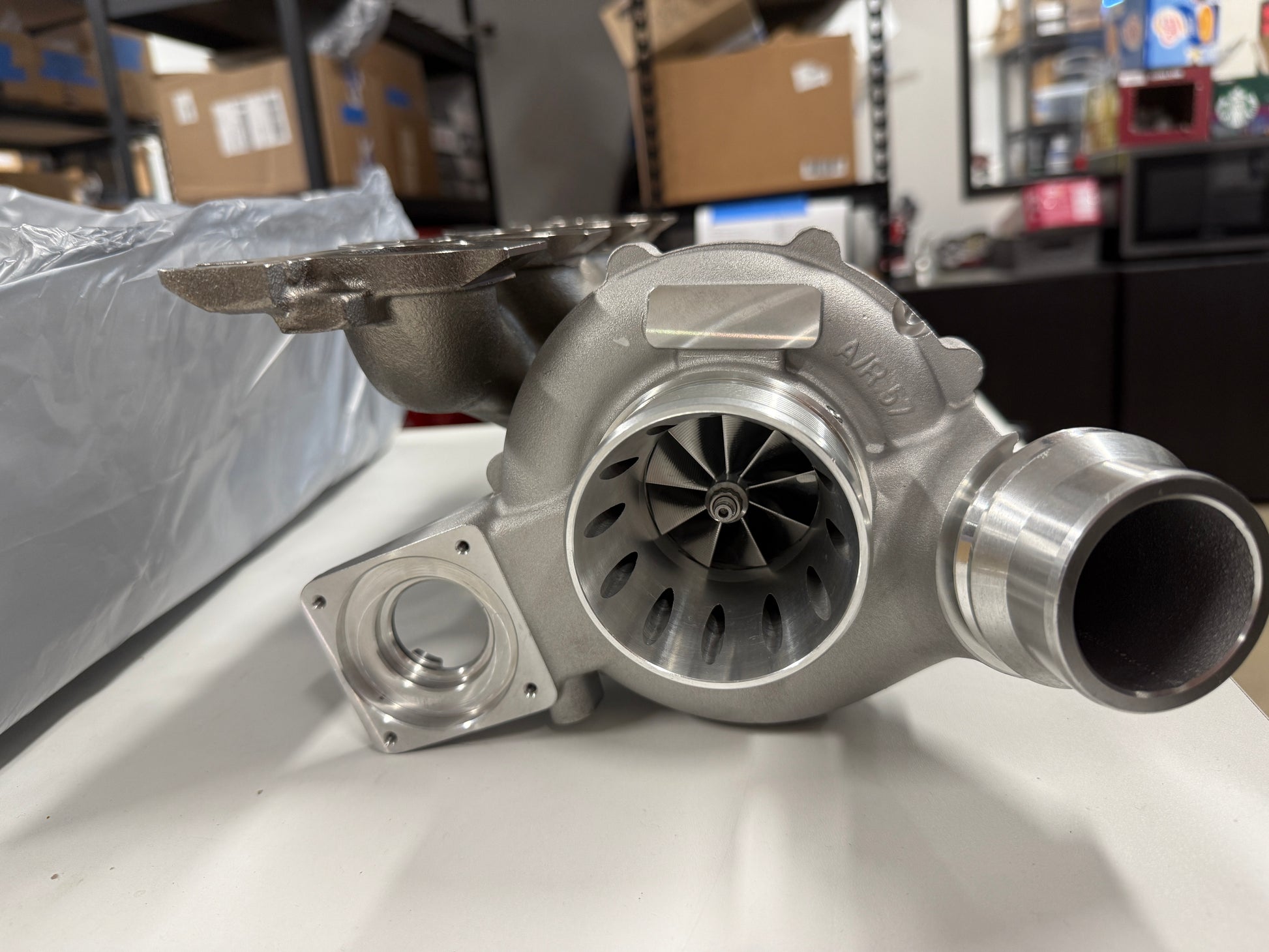

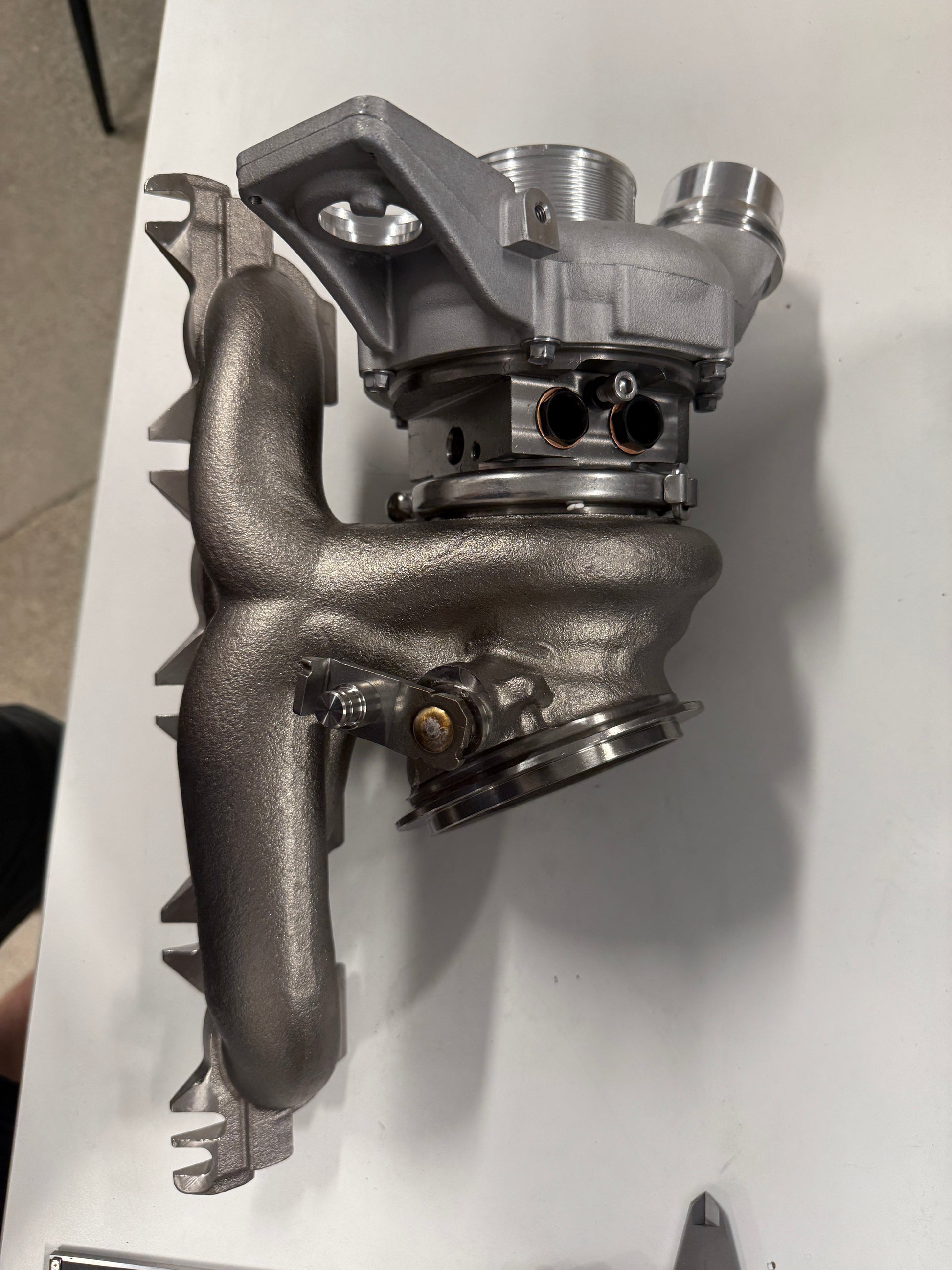

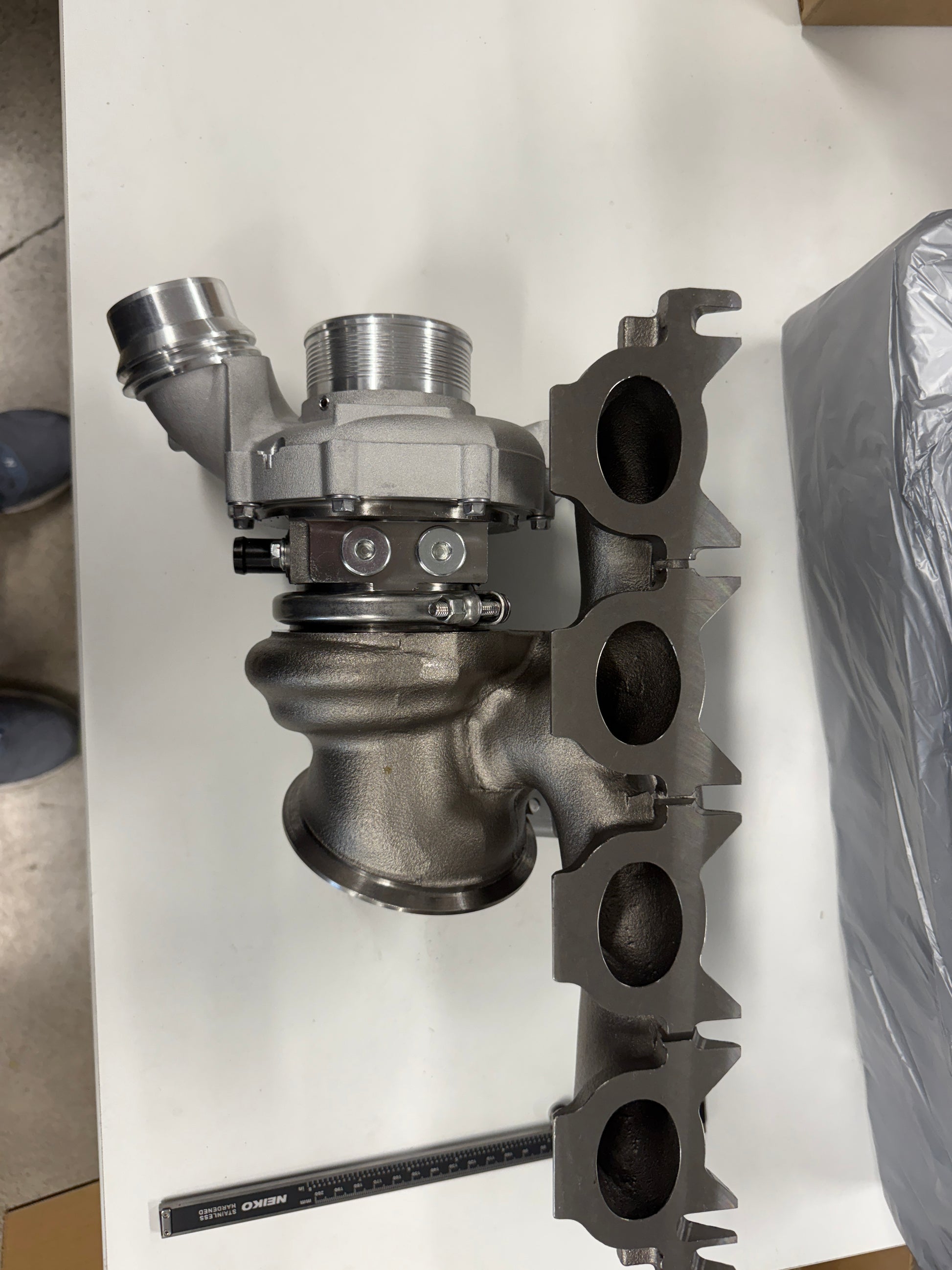

This turbocharger features nearly factory fitment. It has a larger cast exhaust manifold to allow increased flow.

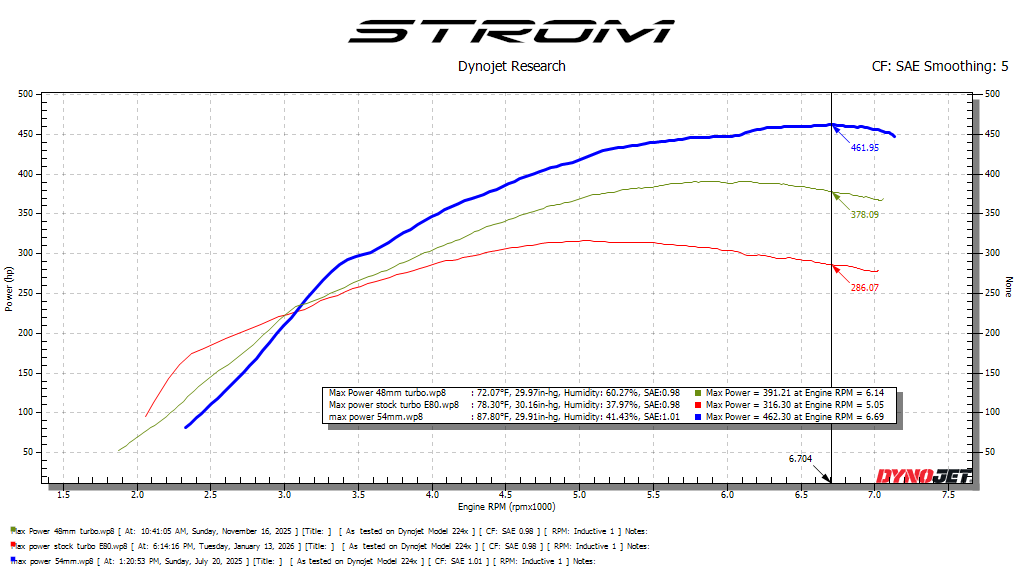

The following power levels are possible depending on other factors like other engine parts, fuel, transmission (drivetrain loss), run conditions and dyno it was measured on.
CSS48 - 48mm version good for 420whp max and 390whp sustained track use.
CSS54 - 54mm version good for 490whp max and 460whp sustained track use.
The turbo core has the same sizing specs as the Garrett G25-550 or G25-660. It has a ceramic ball bearing cartridge and the plumbing to match the stock B48D ( 2020-2024 G20 330i and similar) oil and coolant hoses. We have modified it further so it bolts right in and all you need is to make an intake.

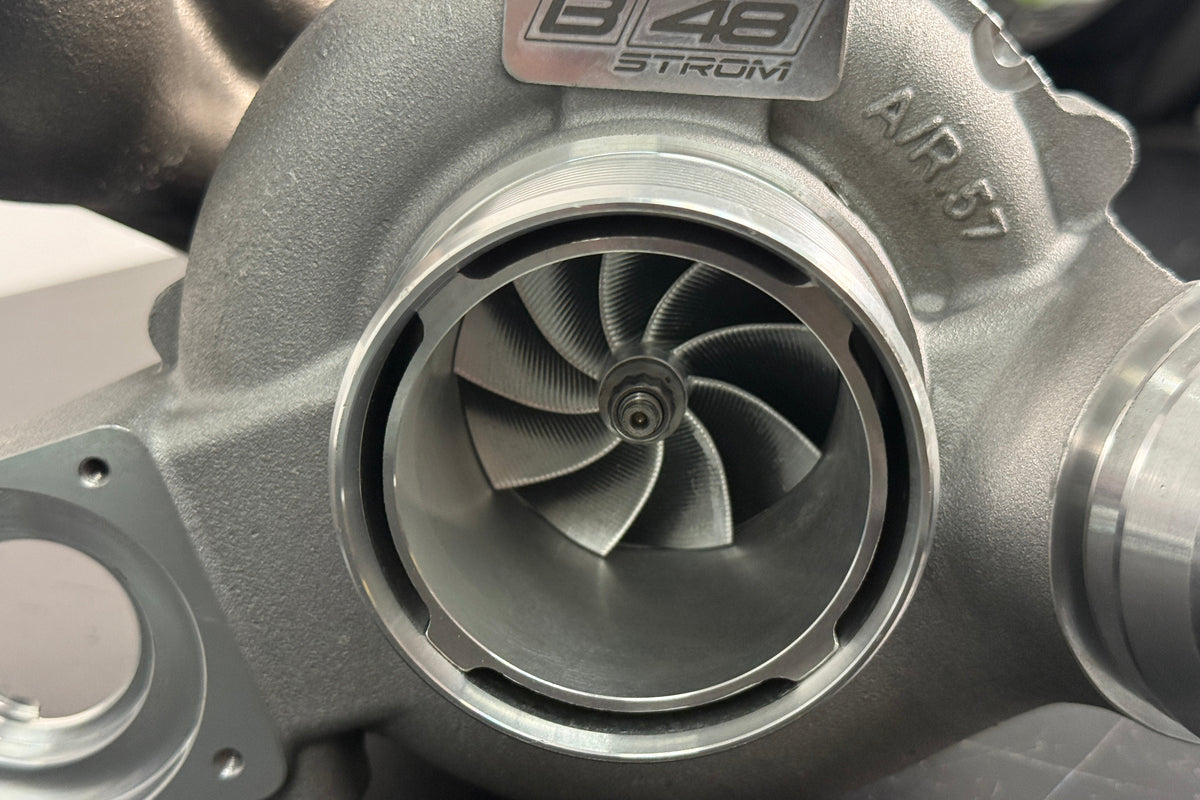

- Features a 48/60mm or 54/67mm Compressor Wheel with 0.57 AR Housing

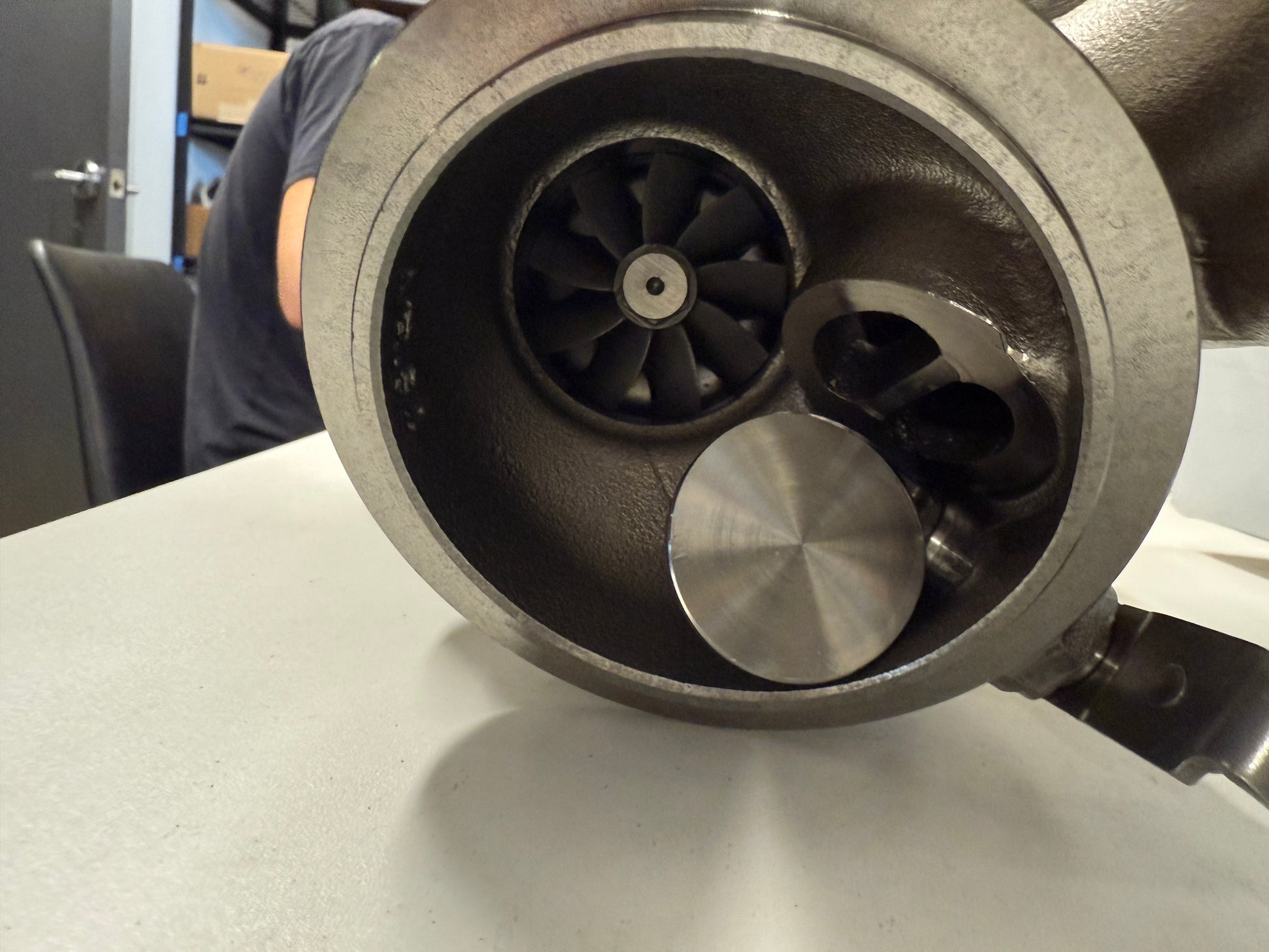

- 49/54mm Turbine with 0.64 AR Housing

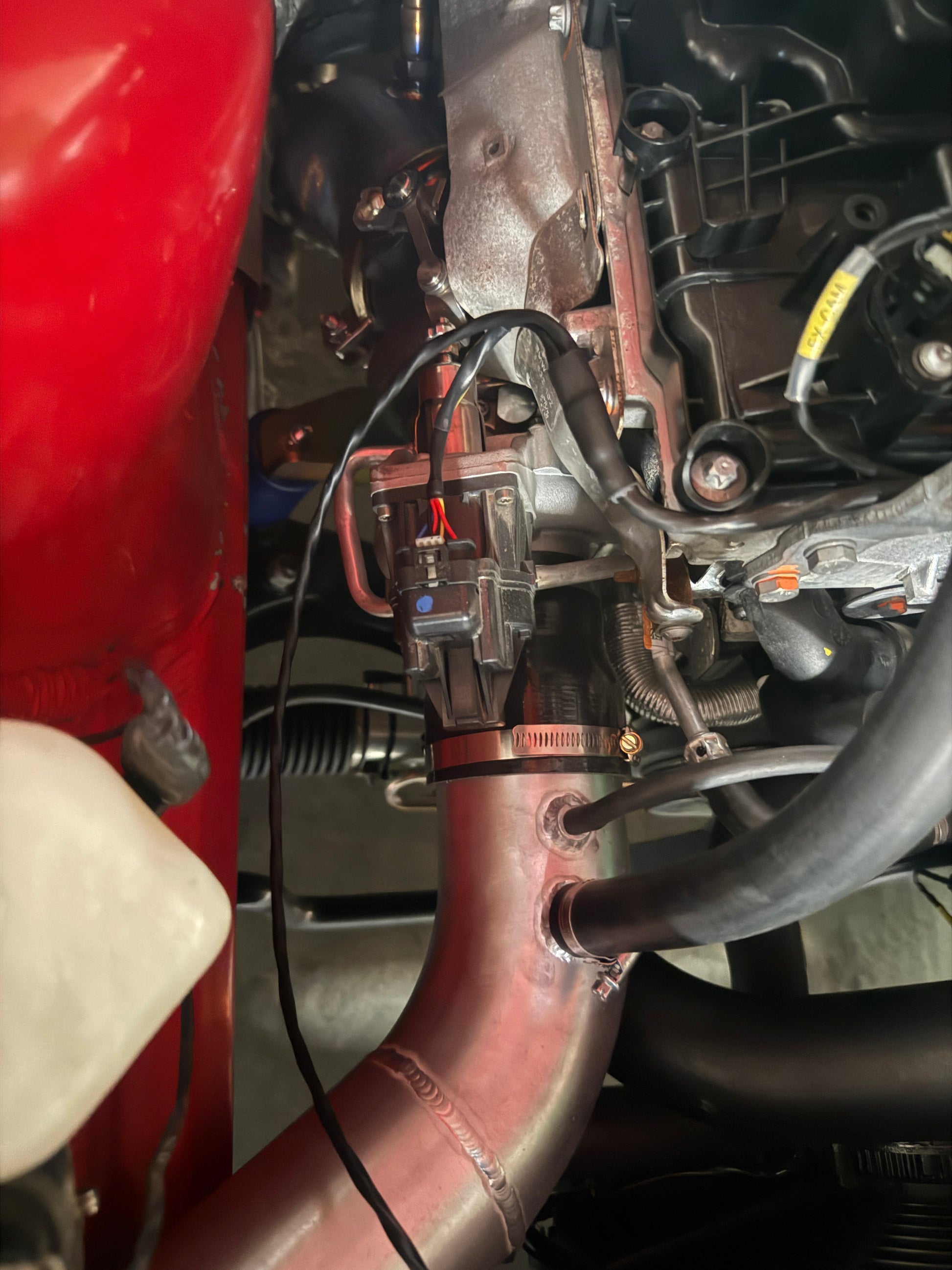

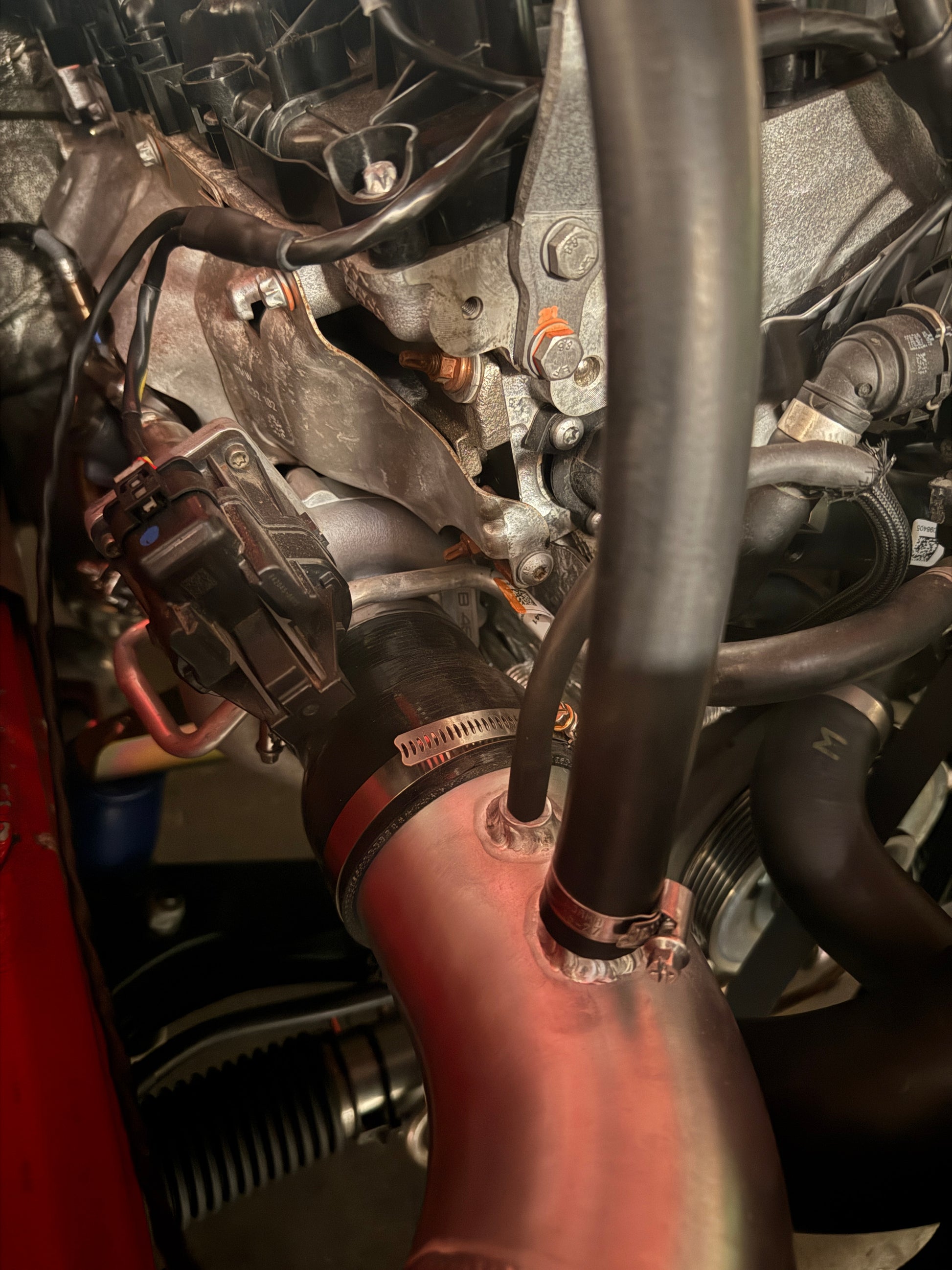

- 2.75" Inlet requires use of aftermarket or modified intake but allows for greater flow than stock housing.
- Anti-surge inlet housing.
- Depending on load these can make peak torque around 2800rpm and 3200rpm.
Installation Instructions
