STROM BMW Camber Plate Set for E46, E36, E9x, E8x

Our new Race Camber Plates were developed out of a constant frustration of aligning race cars and having the adjustments be difficult to get to when running large amounts of caster or camber. If you know, then you know. Our completely new design reduces the overall complexity of the normal race camber plate and allows complete freedom of movement with an emphasis on being able to move camber or caster without having to unweight the wheel.

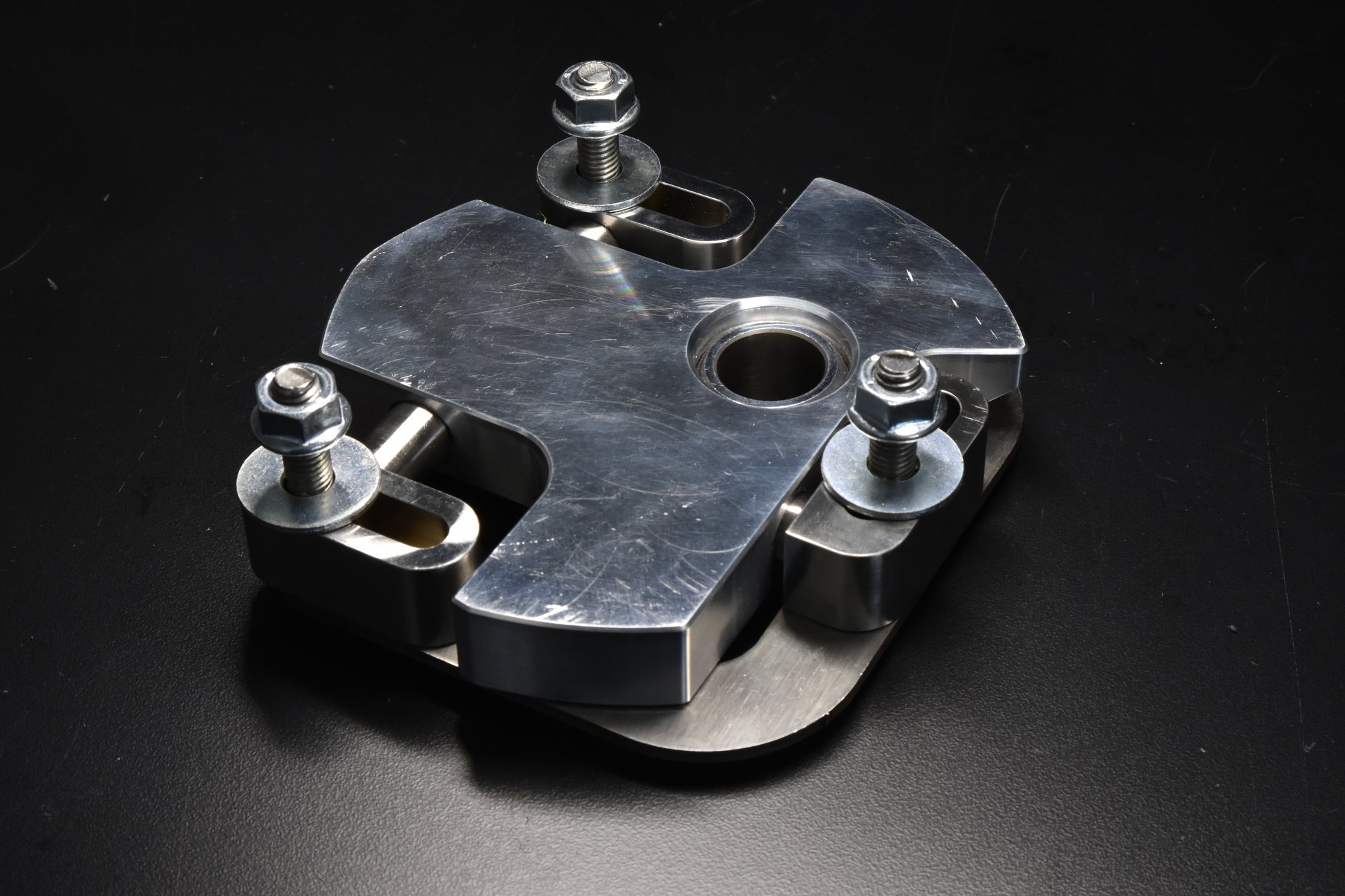

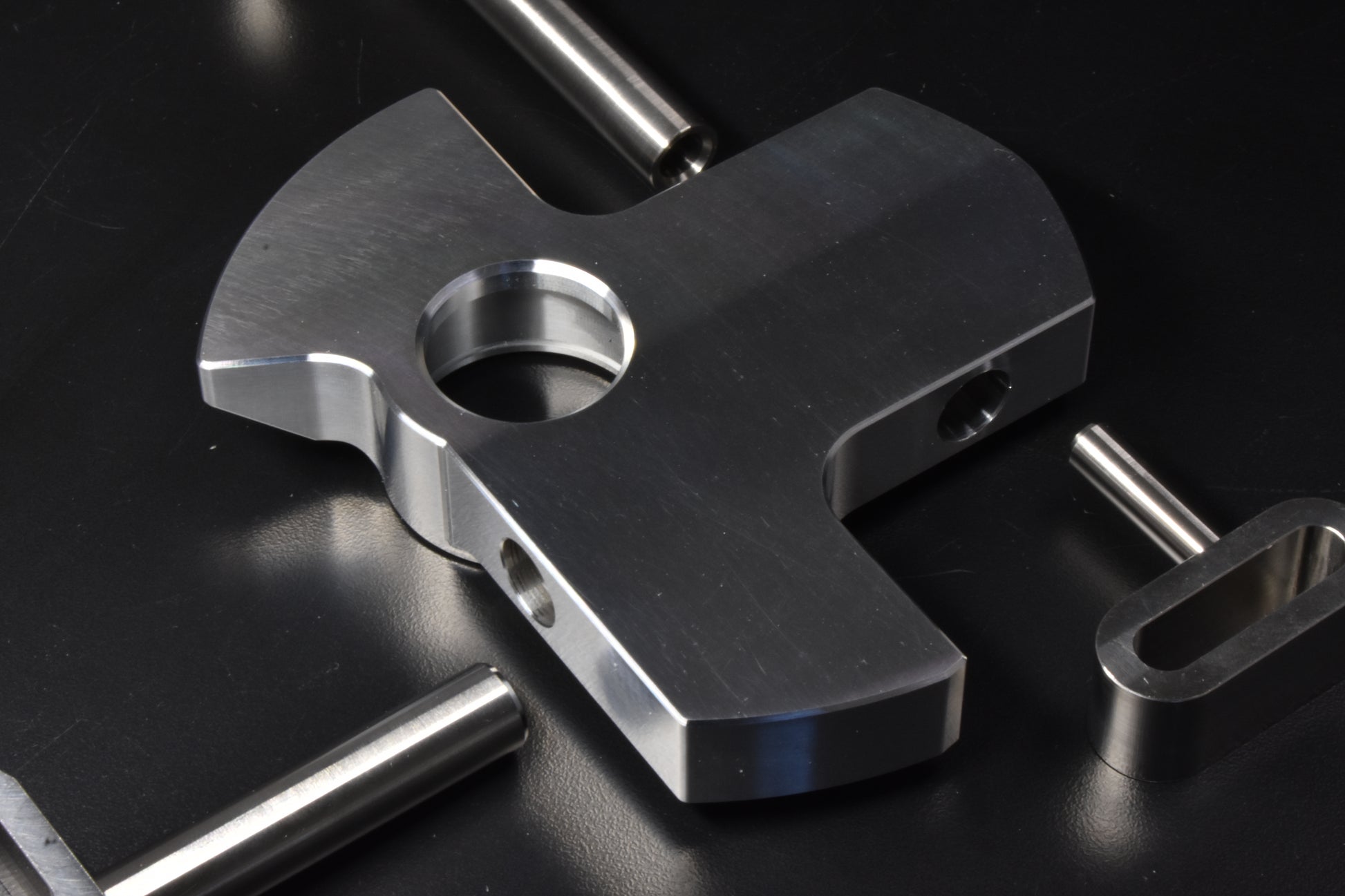

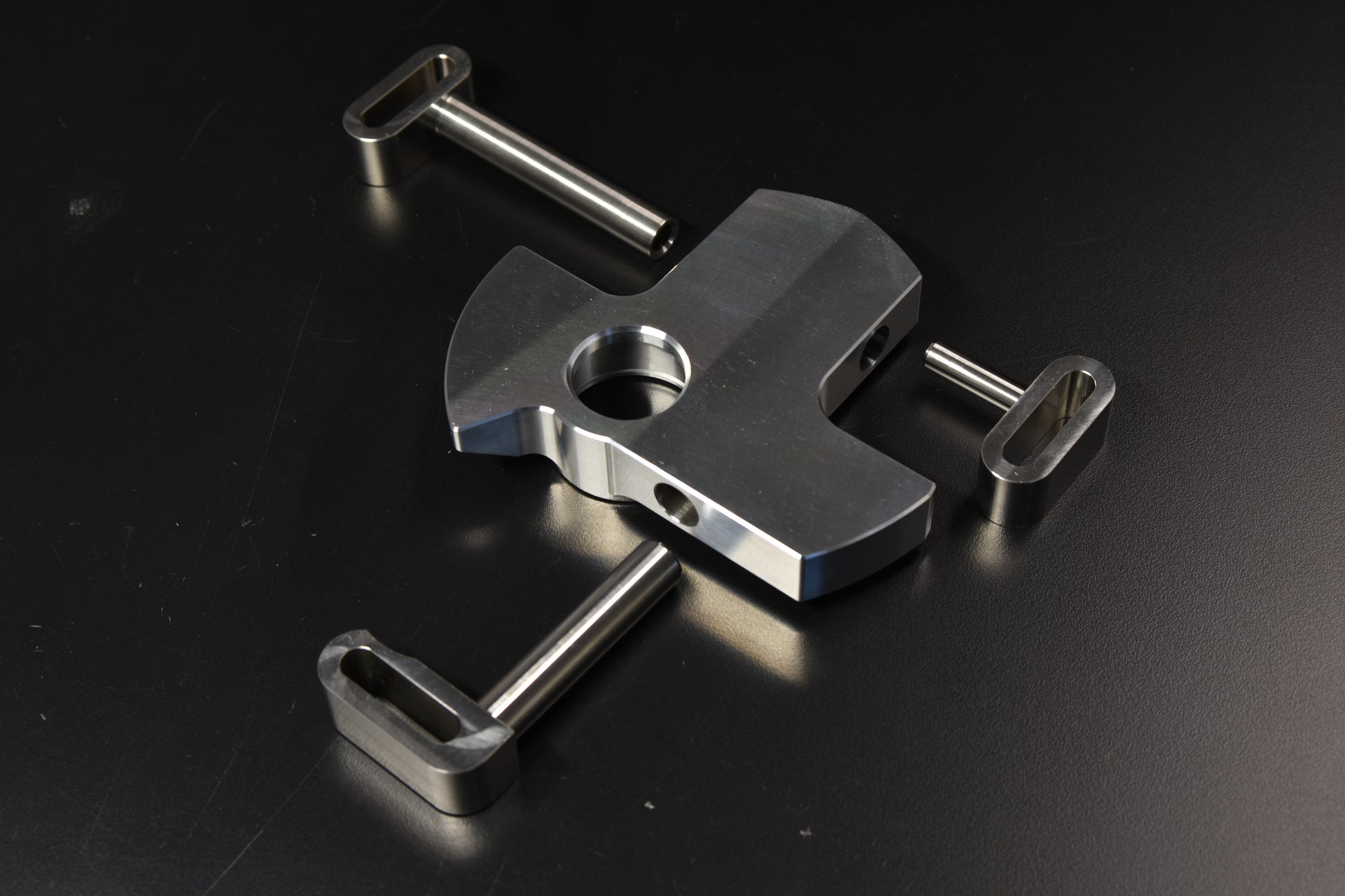

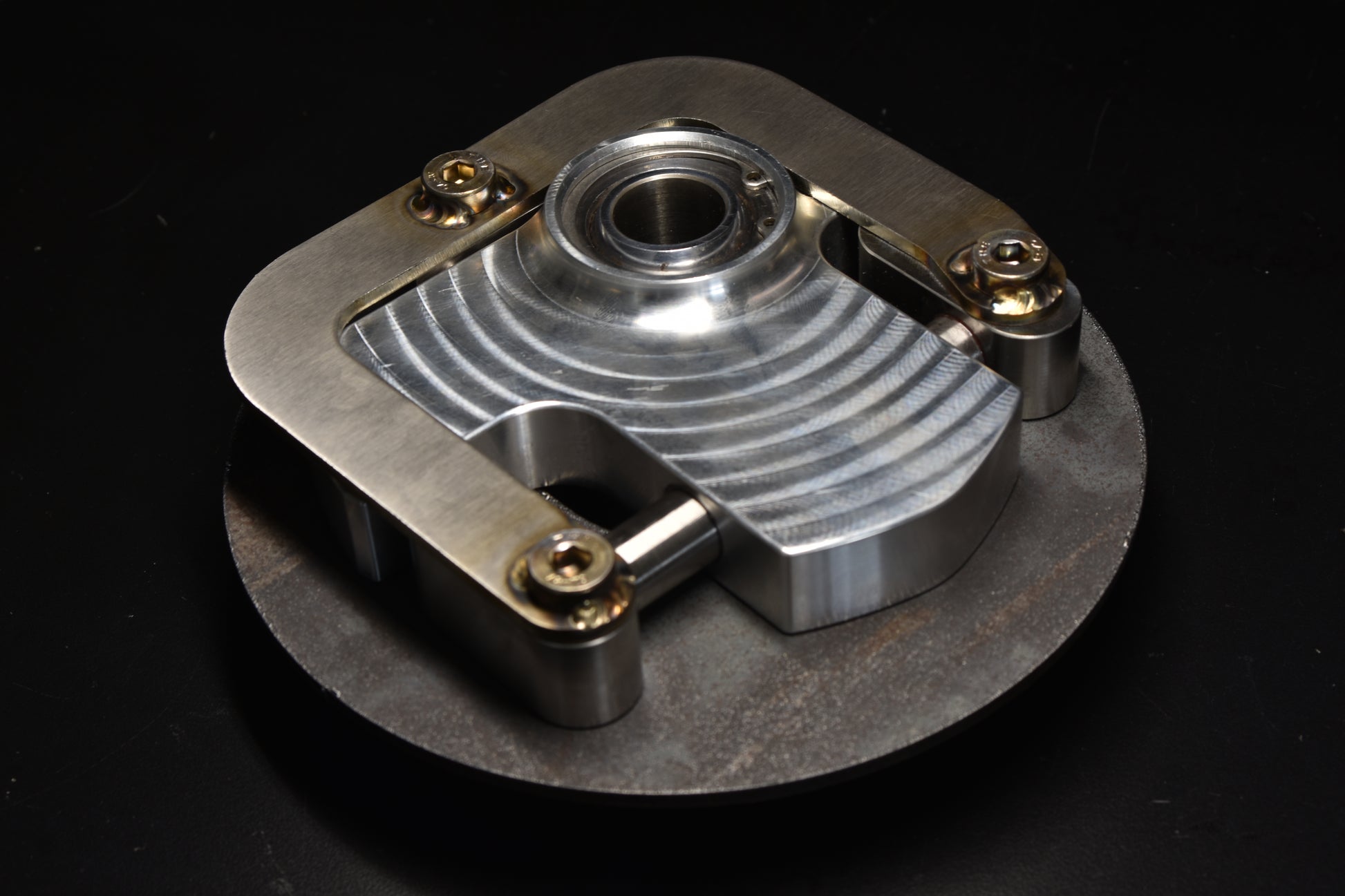

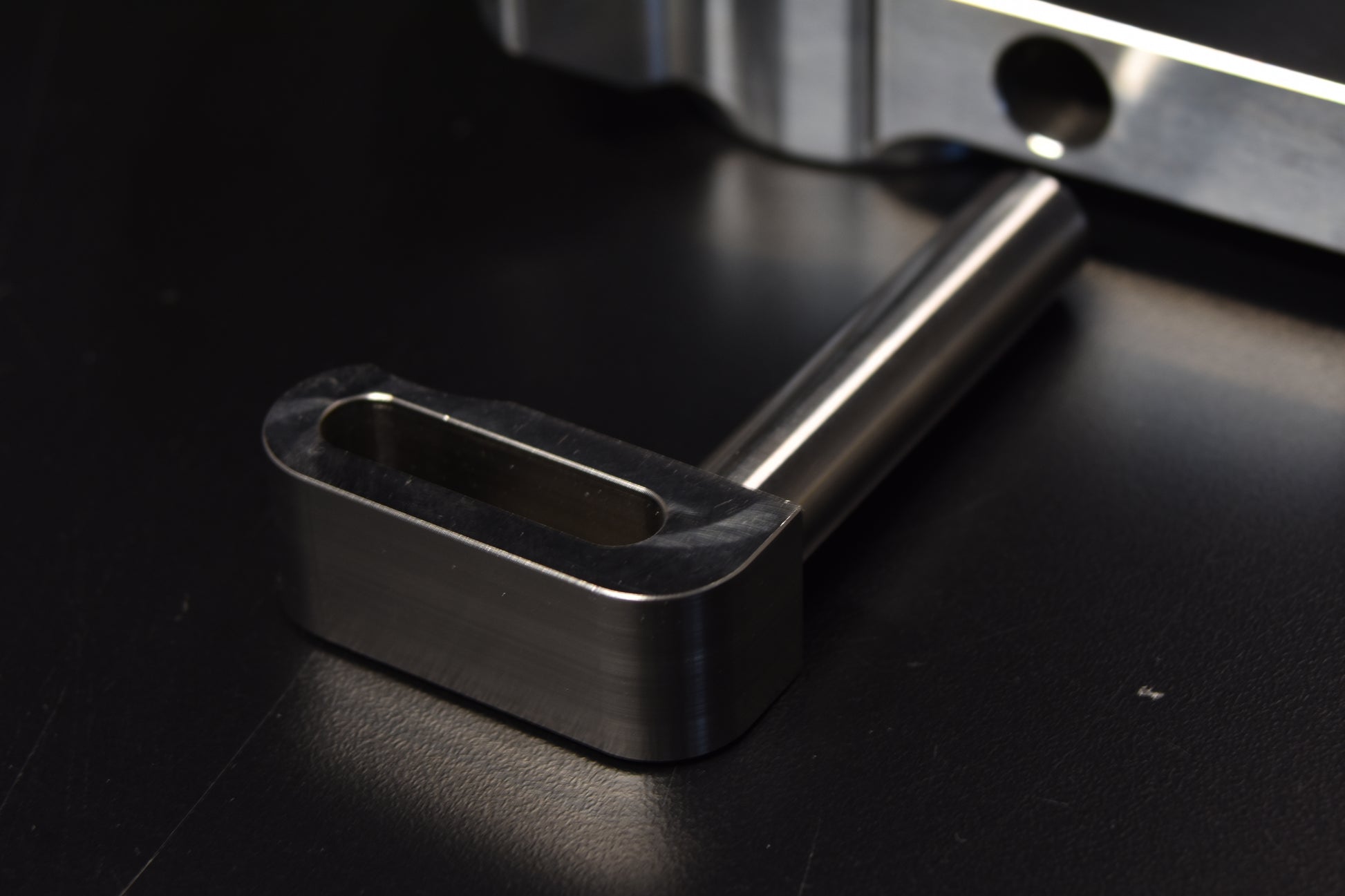

Constructed with a 7075-T6 aluminum body and 316 stainless steel slide pins, these camber plates are designed to work for street and motorsport applications.

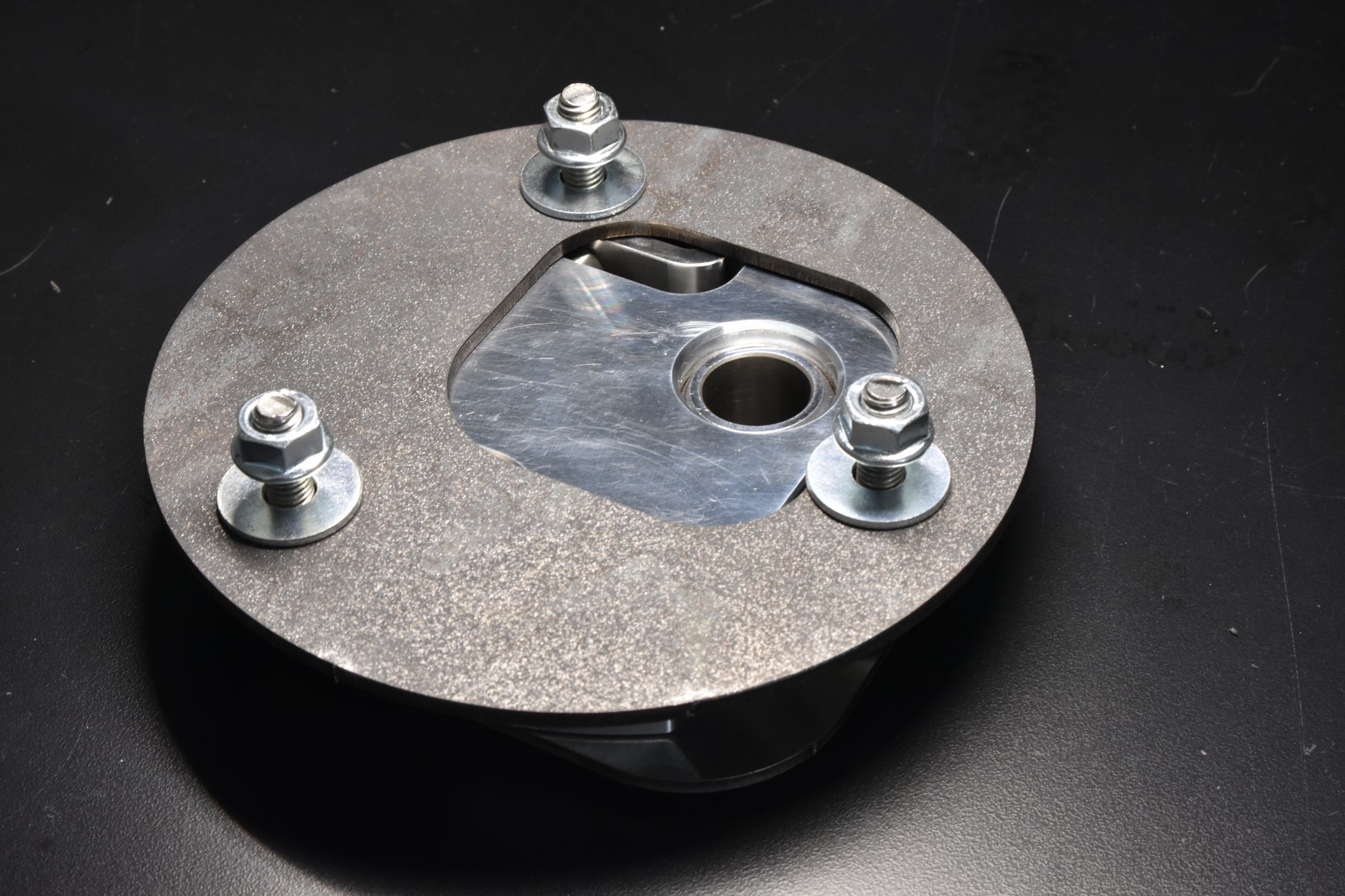

Each camber plate comes with a 0.125" AR500 steel reinforcement plate for added strength and easy adjustment. While this plate may look unfinished we specifically are using the AR500 alloy for its extreme hardness. Common uses for it include vehicle armor and mining equipment. This allows for smooth sliding of the aluminum body when making adjustments and prevents galling.

Full camber and caster adjustment using only the top three mounting nuts, no more hidden bolts!

Heavy duty 3/4" ID spherical bearing, standard sizing to accommodate most spacer and perch combinations. If you are not replacing a current set of camber plates then purchase our STROM 60mm Spring Perches.

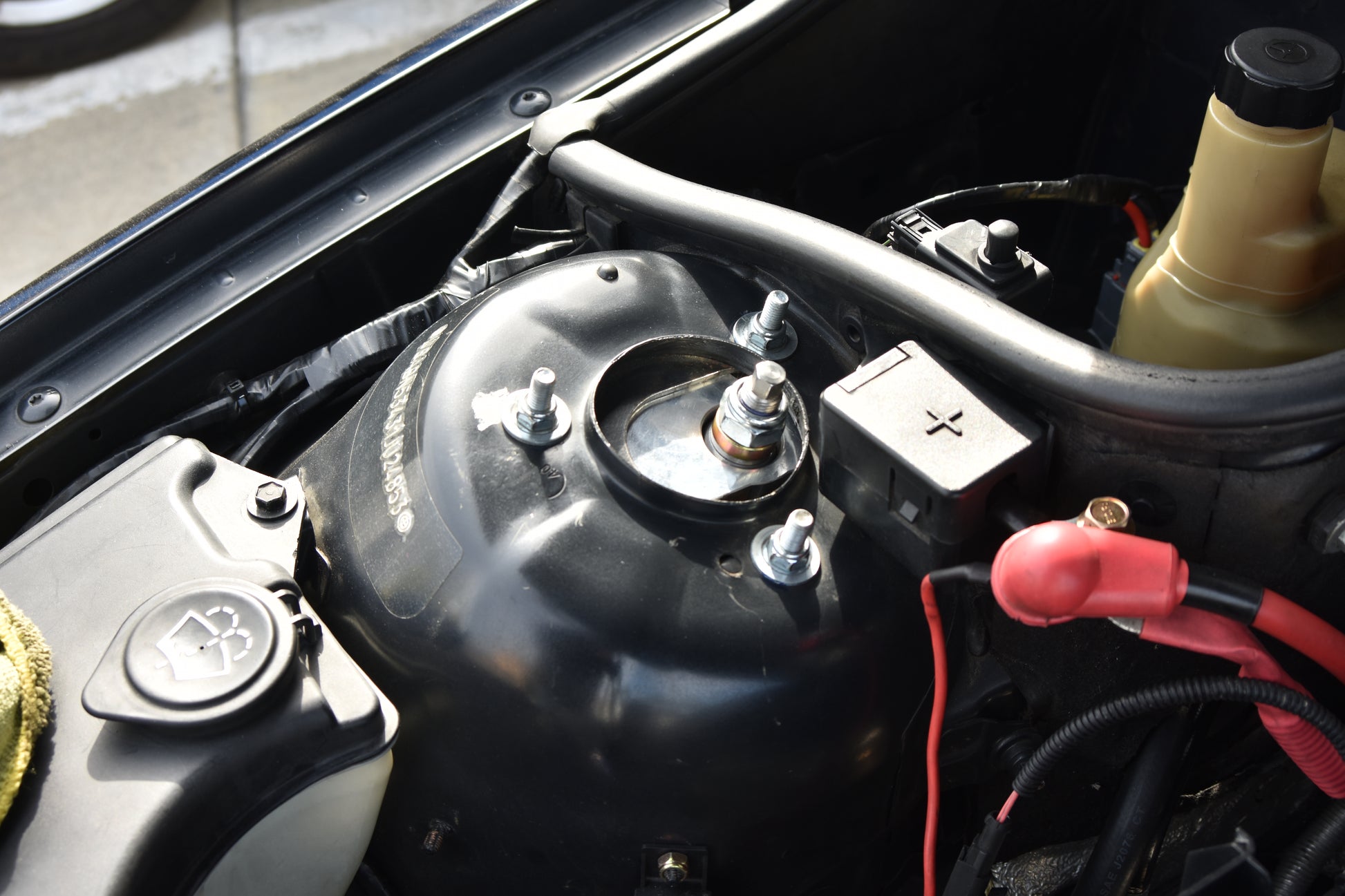

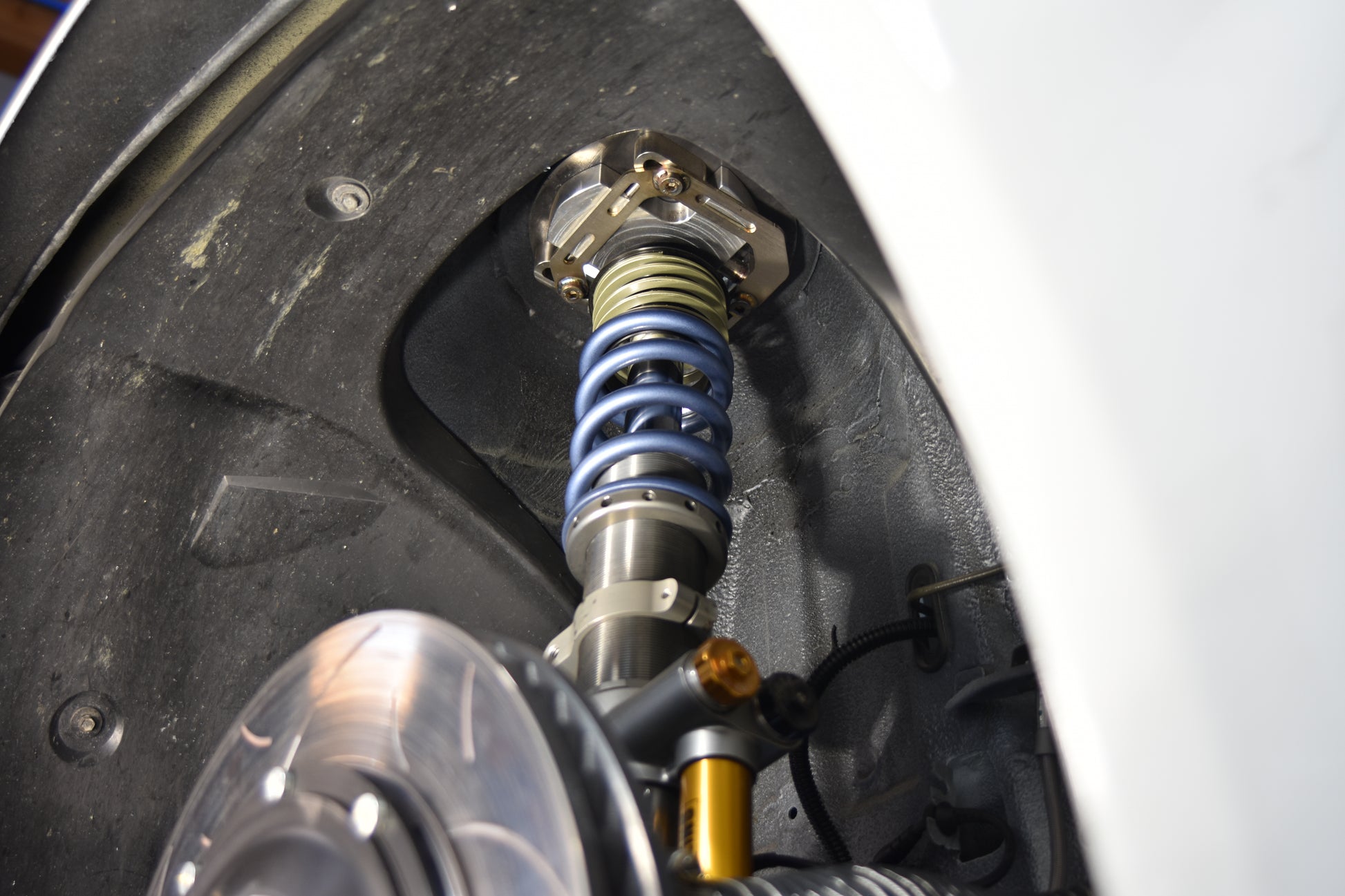

Shock towers may be cut to take advantage of the full range of adjustment but you still don't have to cut your towers more than necessary to access hidden adjustment bolts.

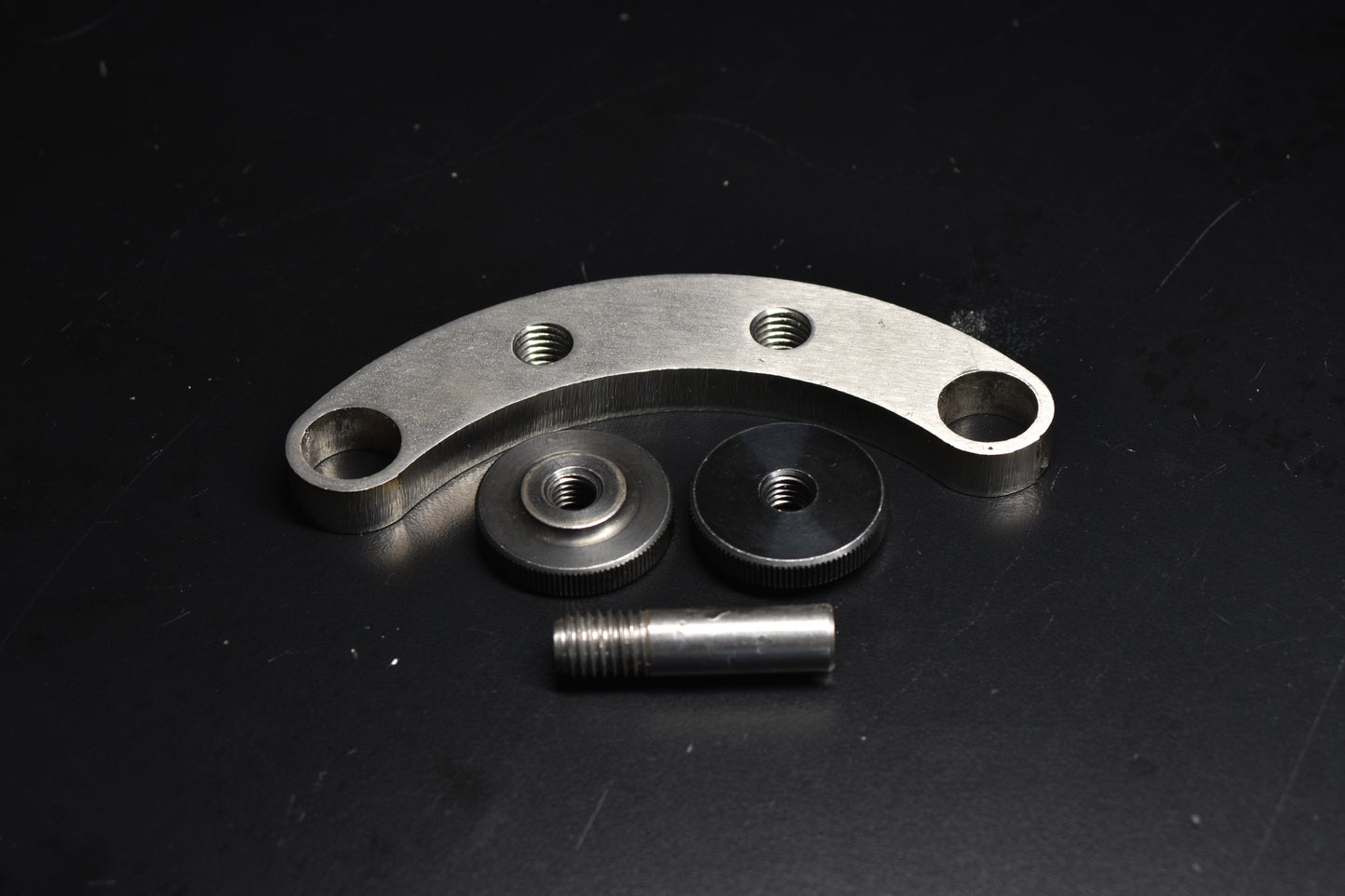

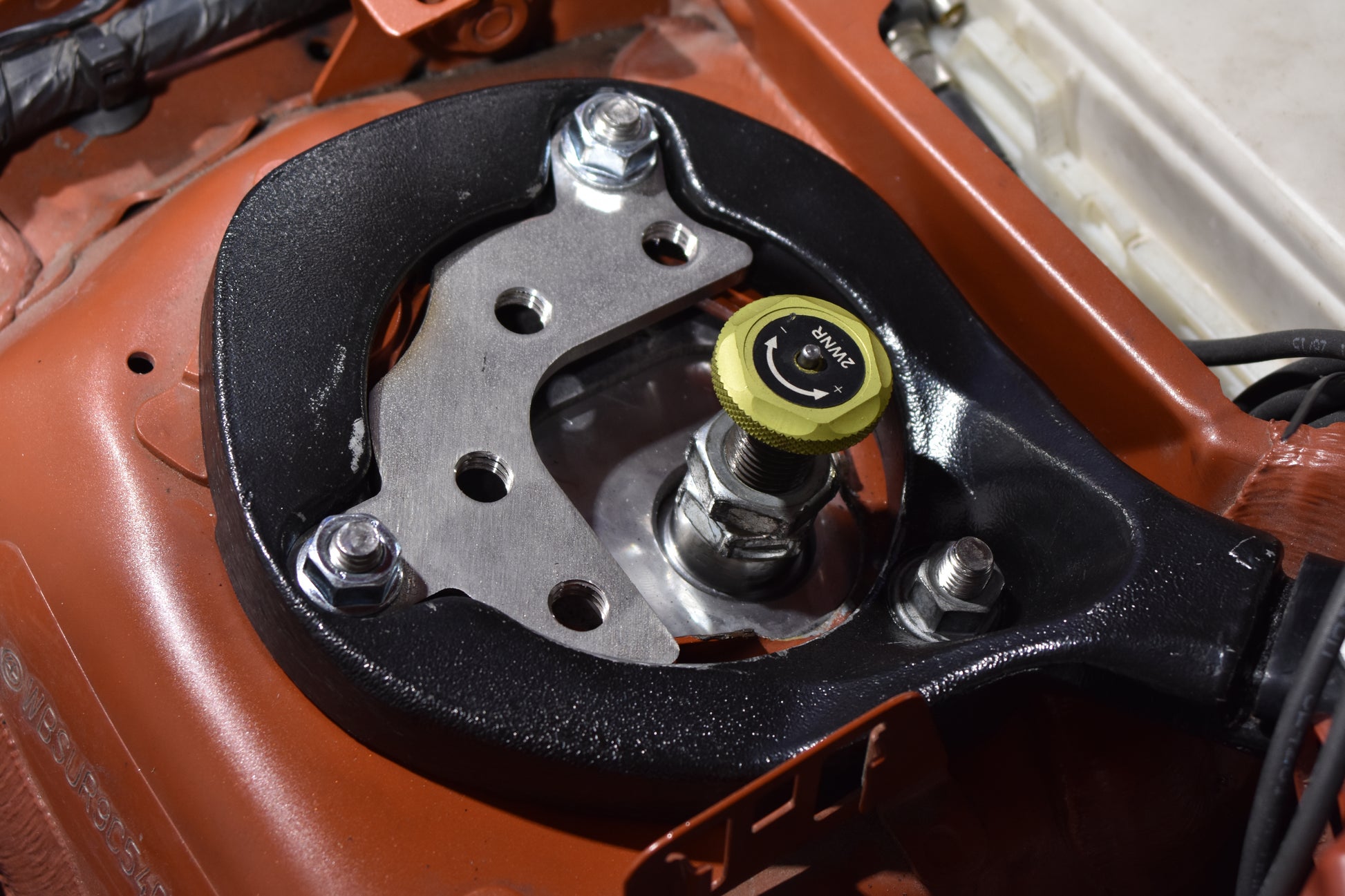

All camber plate sets come with an adjuster that temporarily bolts to the shock tower and provides leverage for making adjustments quick and easy while preventing damage to the shock towers.

SPRING PERCHES AND SLEEVES NOT INCLUDED!

If needed please select the option to add spring perches. These perches accommodate a 60mm spring and 14mm shock shaft diameter. STROM 60mm Spring Perches.

Please refer to this technical document for more info and installation guidelines:

STROM E36/E46/E9x Camber Plate Install Guide
