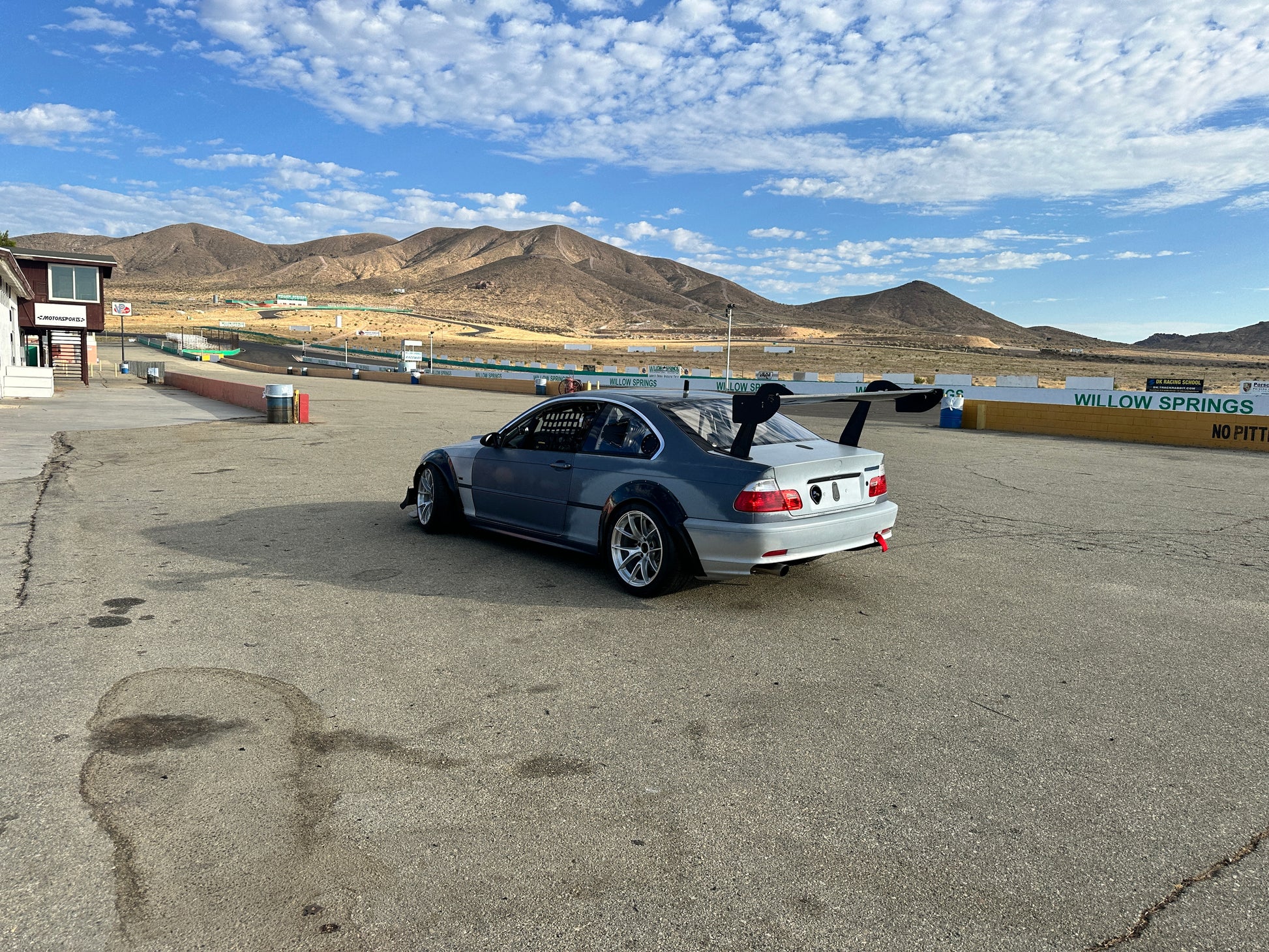

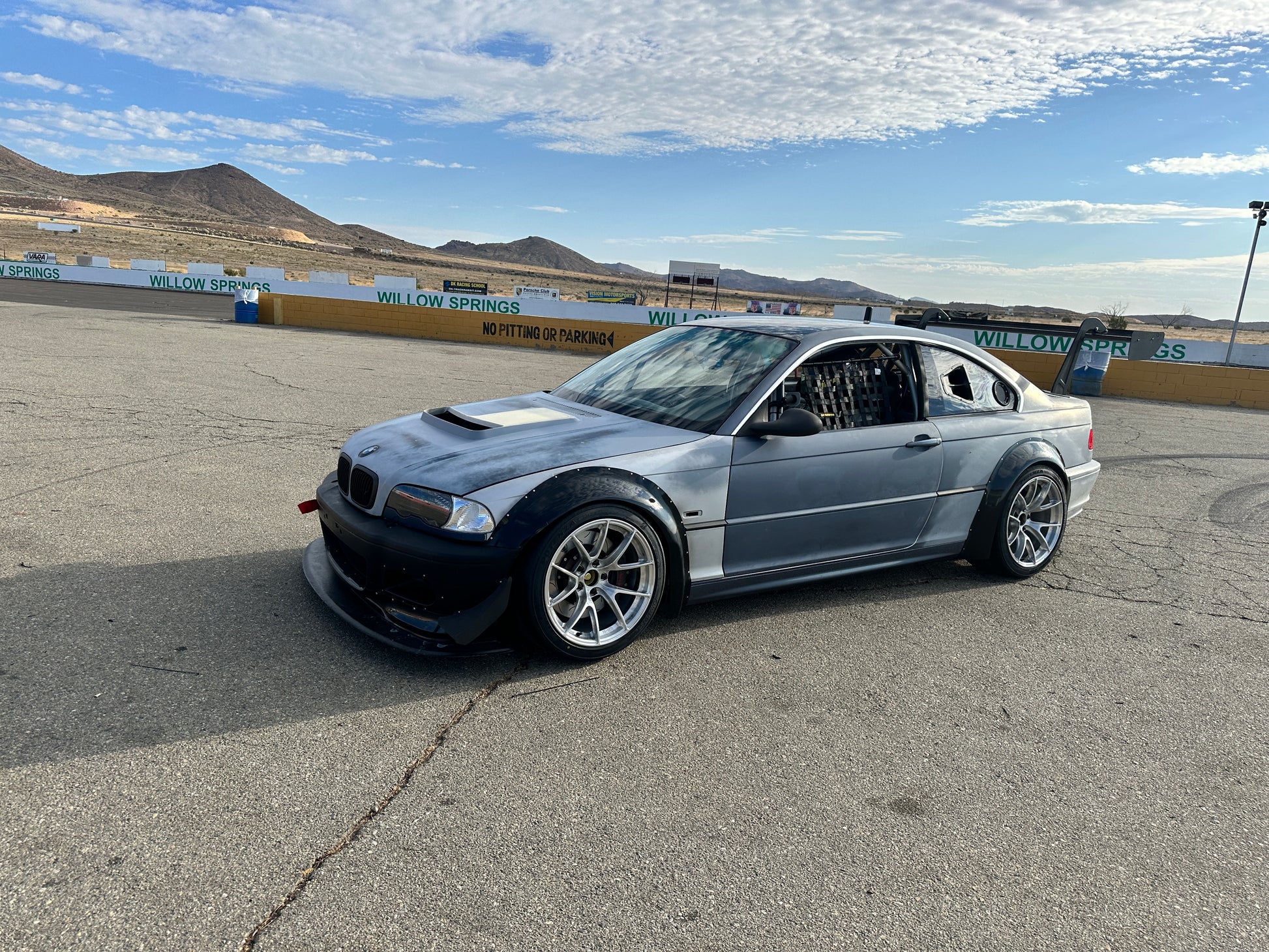

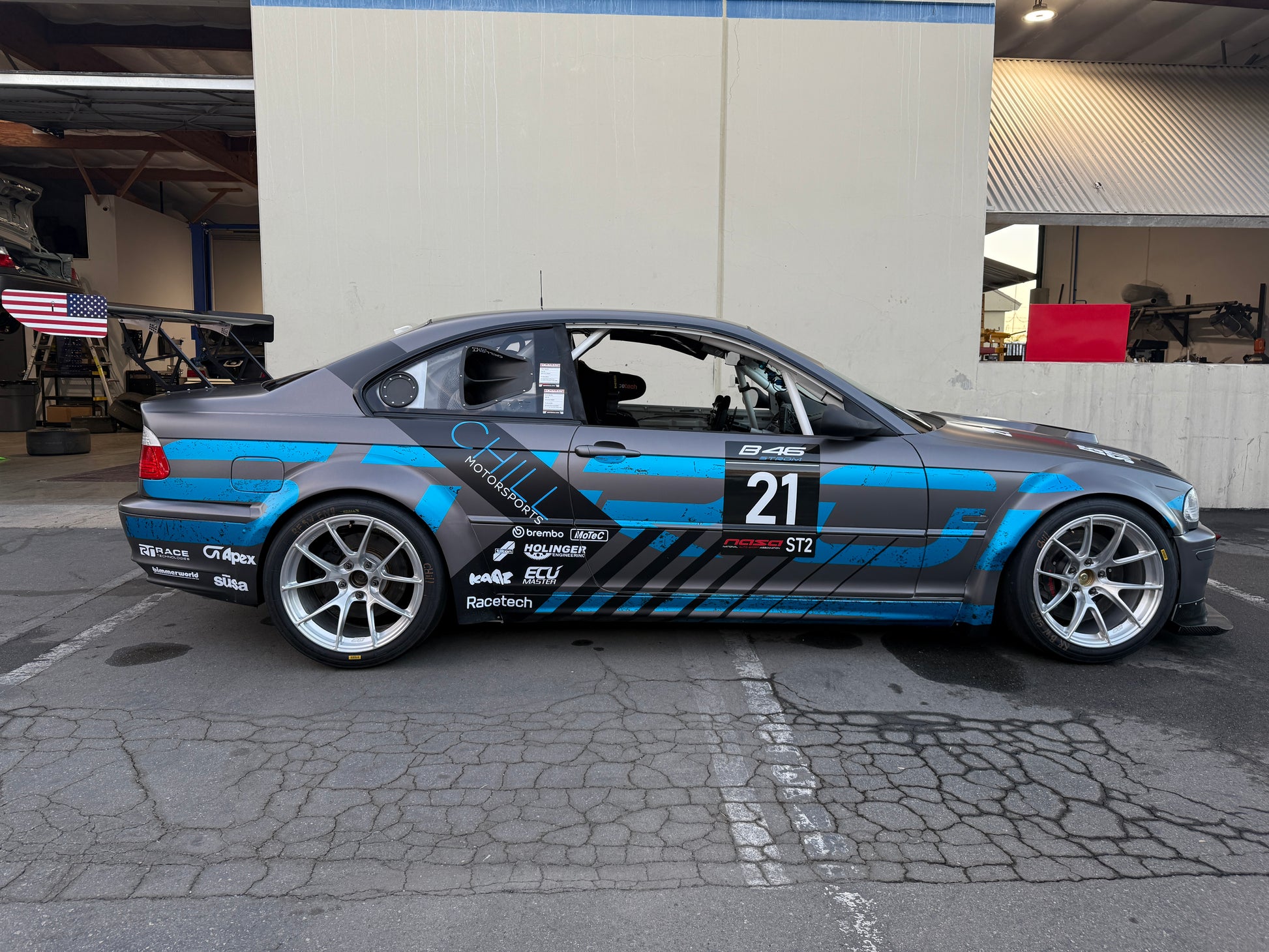

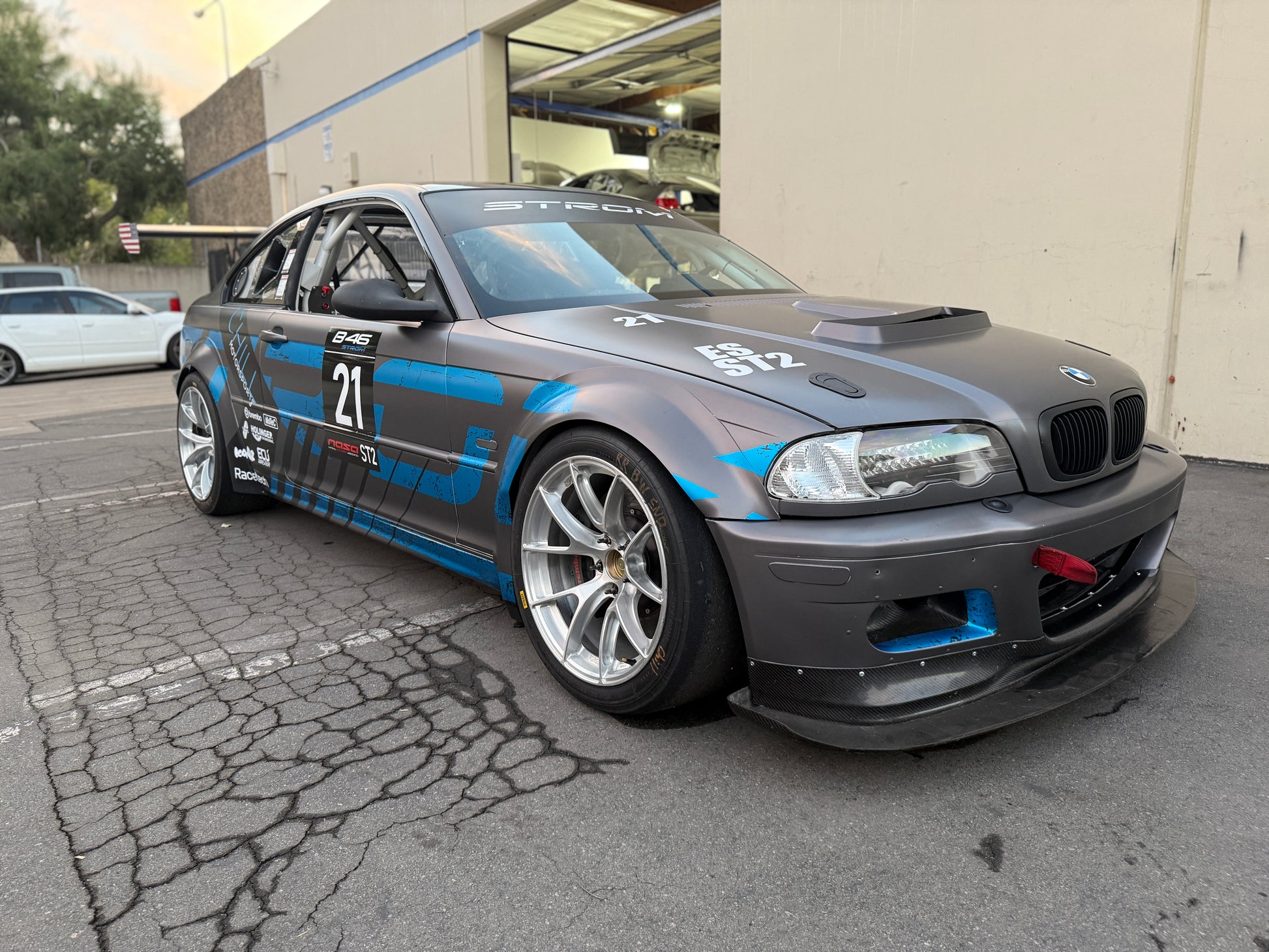

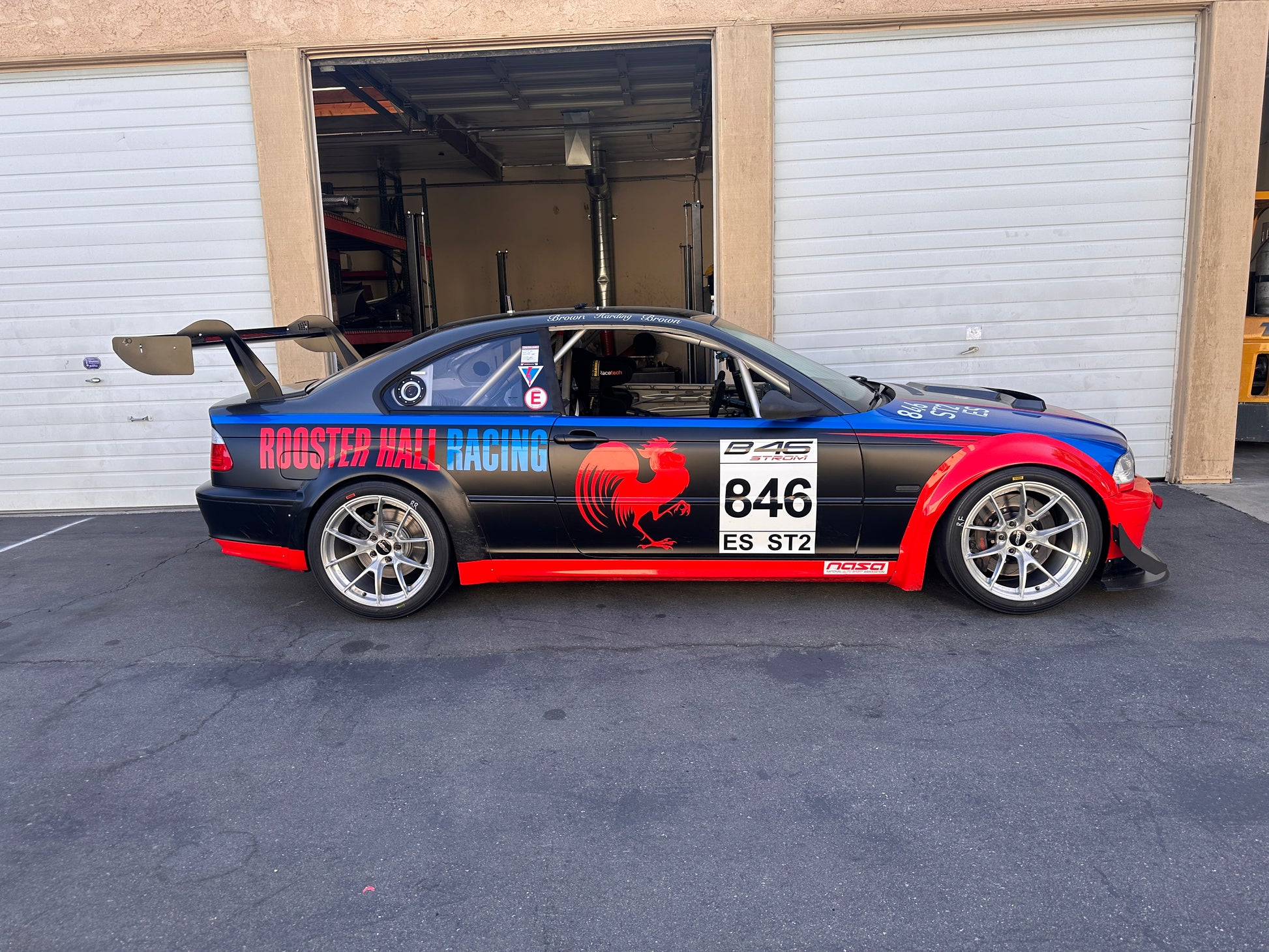

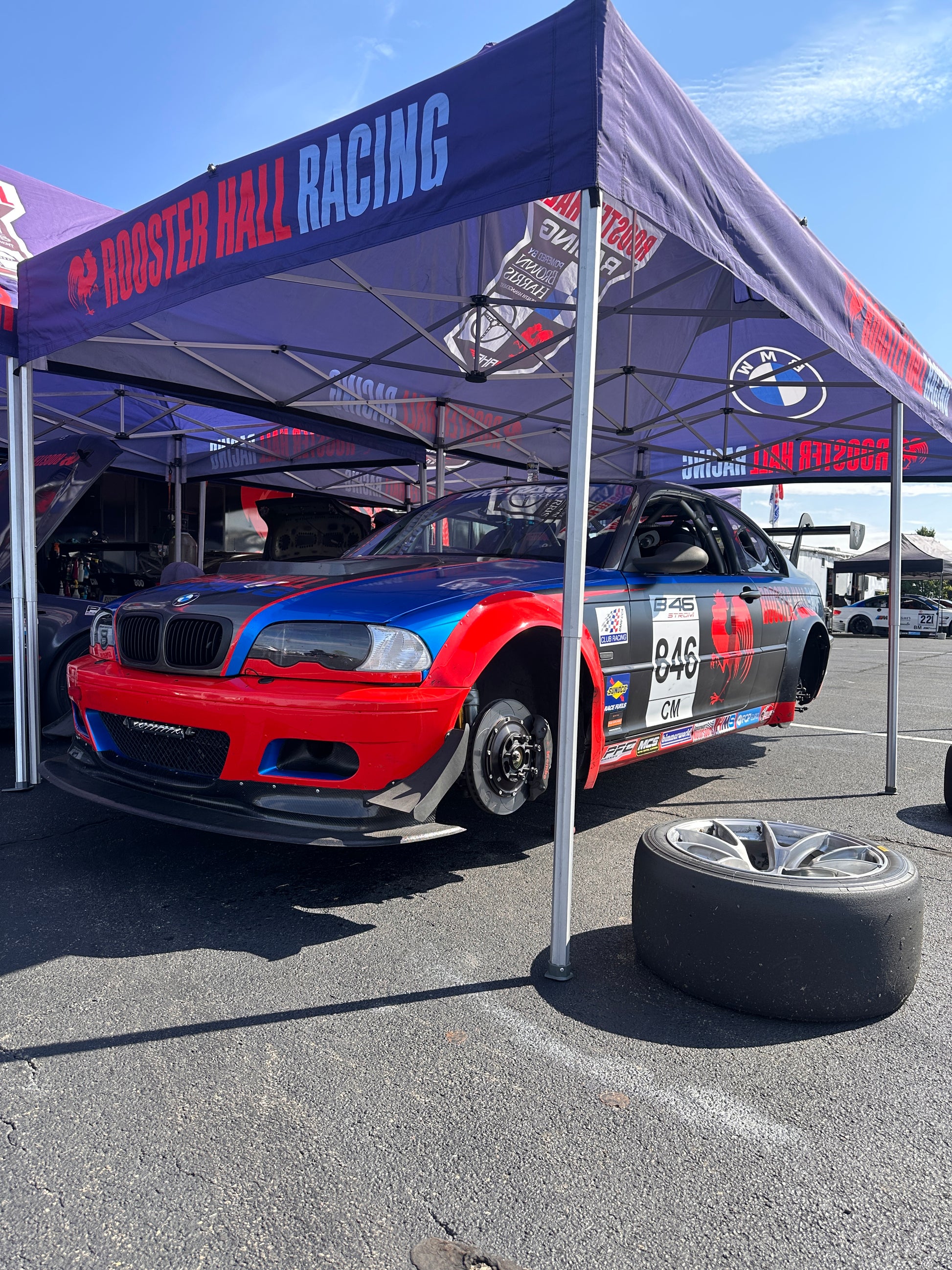

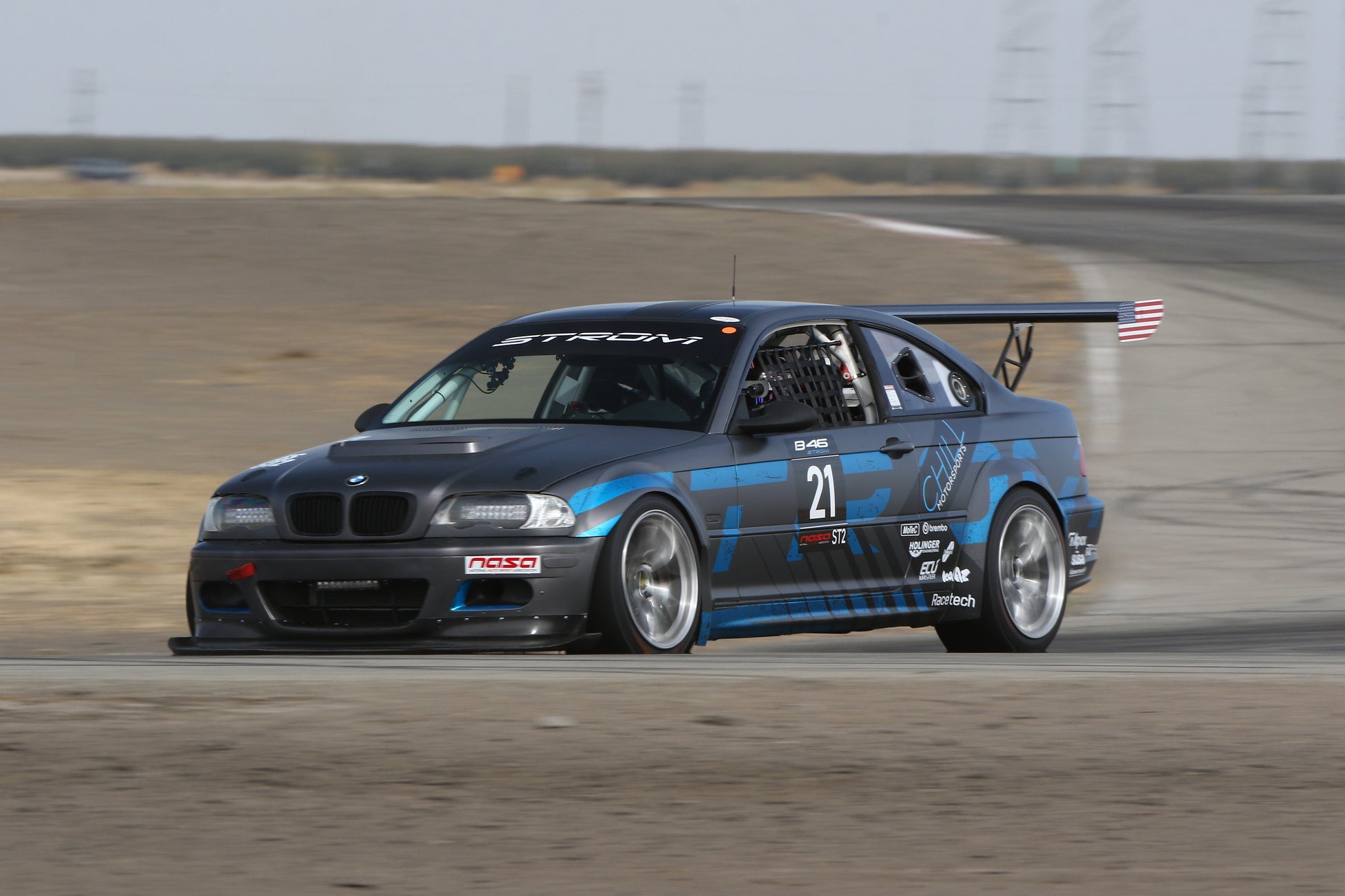

Designed in-house to meet our requirements when we needed something a little different than what was on the market. We did many CAD revisions followed by 3D printed prototypes to get these flares to look just right and match the body perfectly. These were designed for our B46 race cars to look great and be easy to install. They solve a number of fitment issues we had with other flares and allow for a larger tire fitment. We have started bonding these instead of riveting and so far they have held up great on the race track.

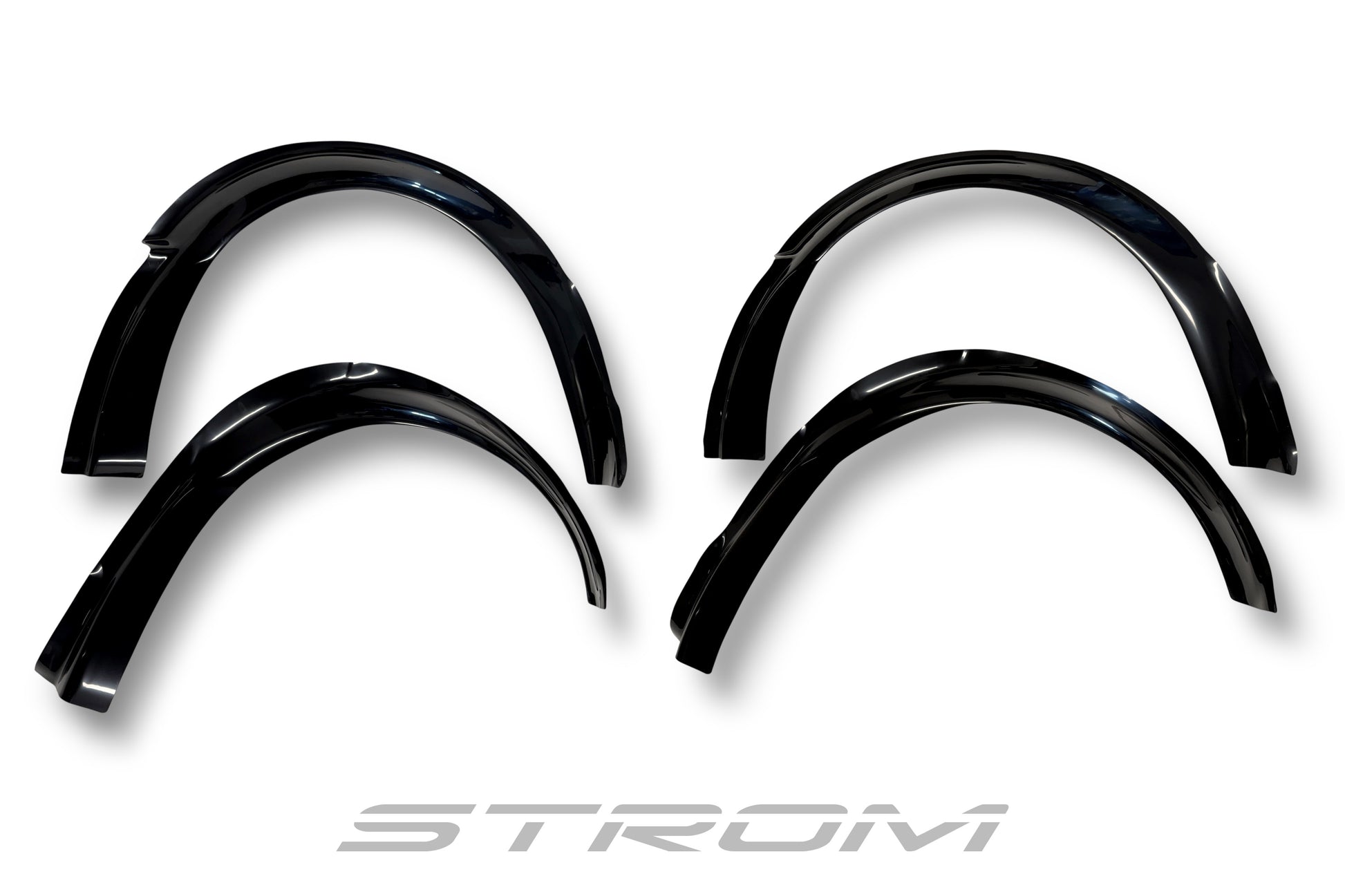

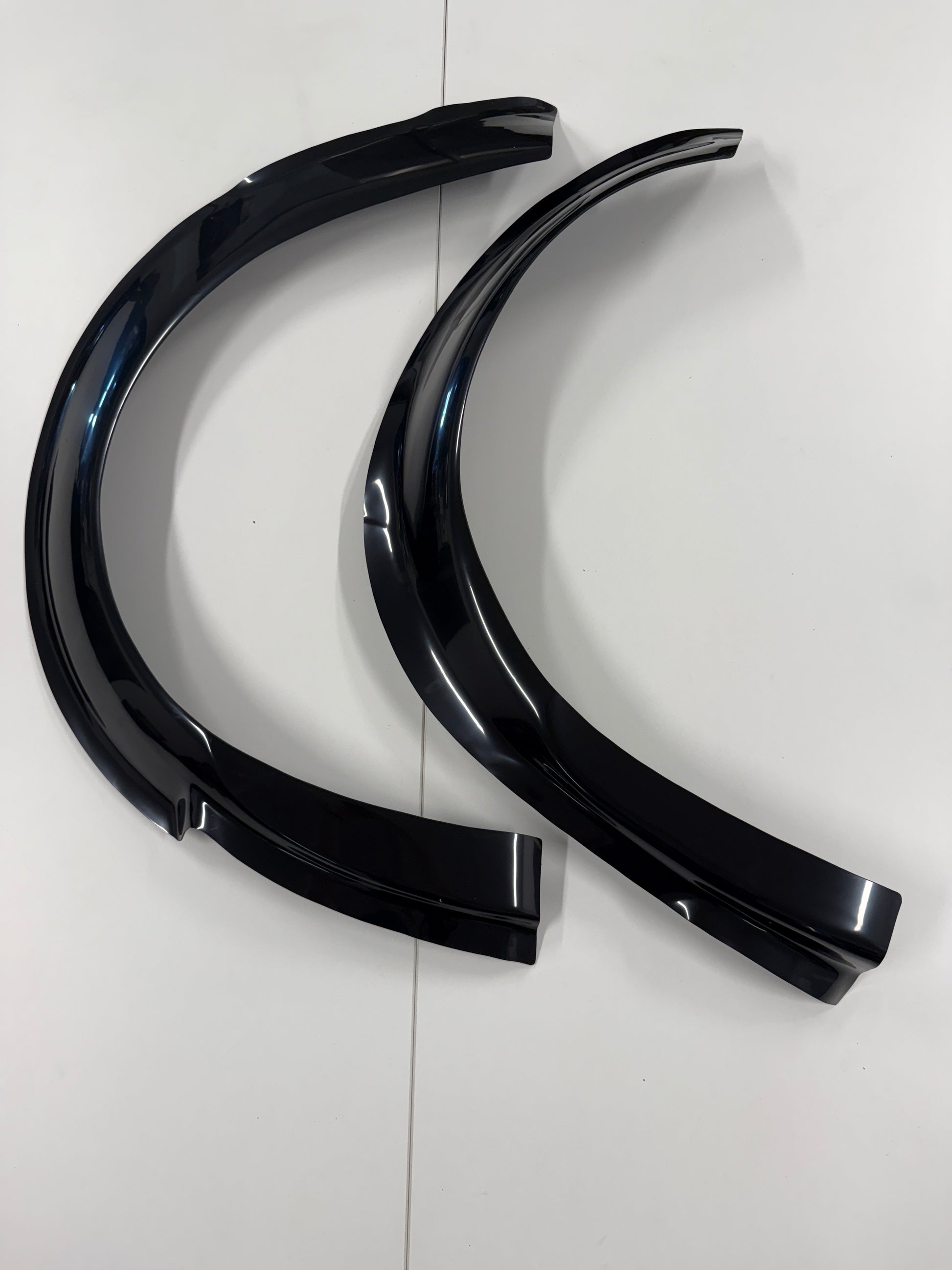

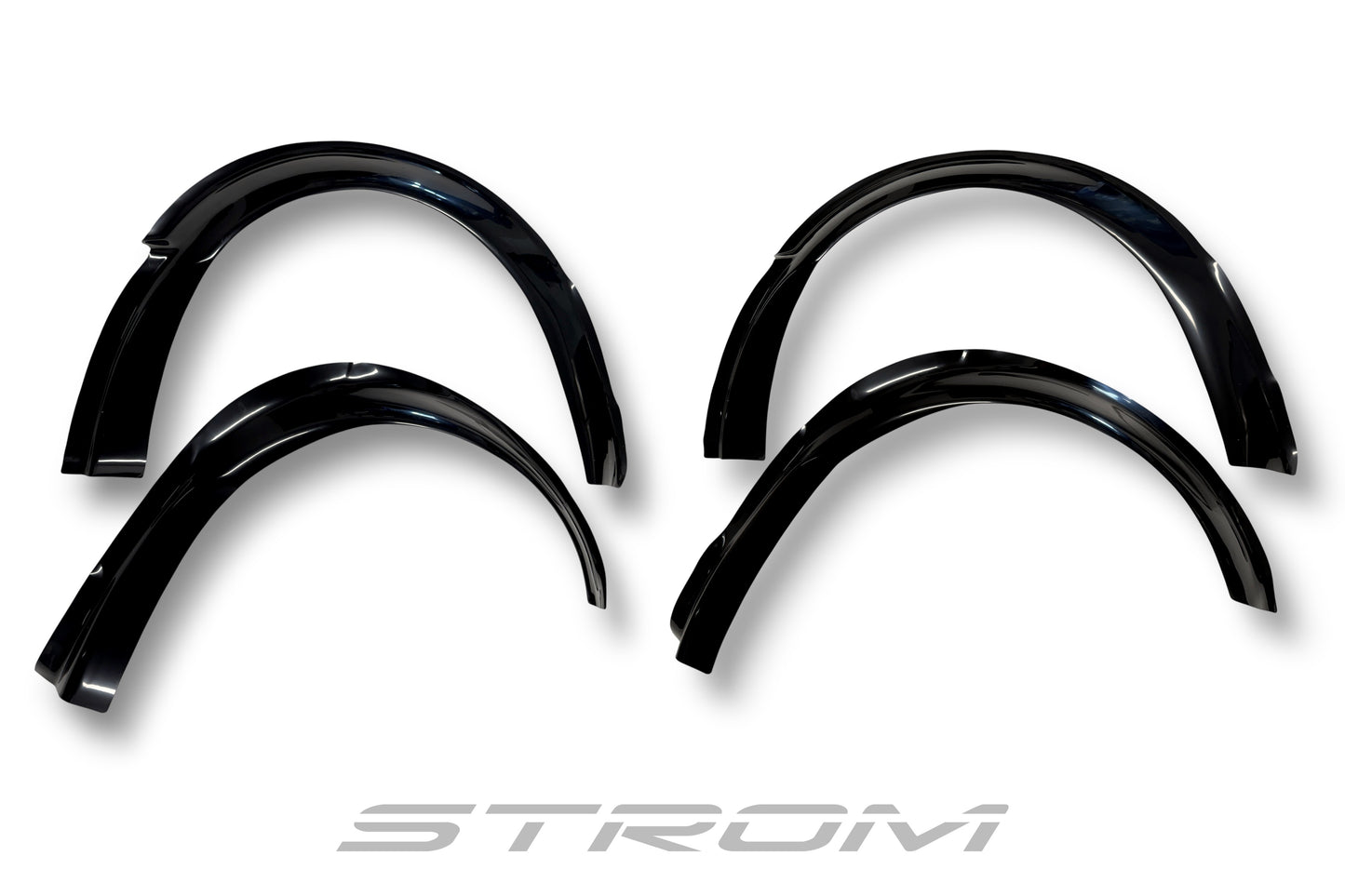

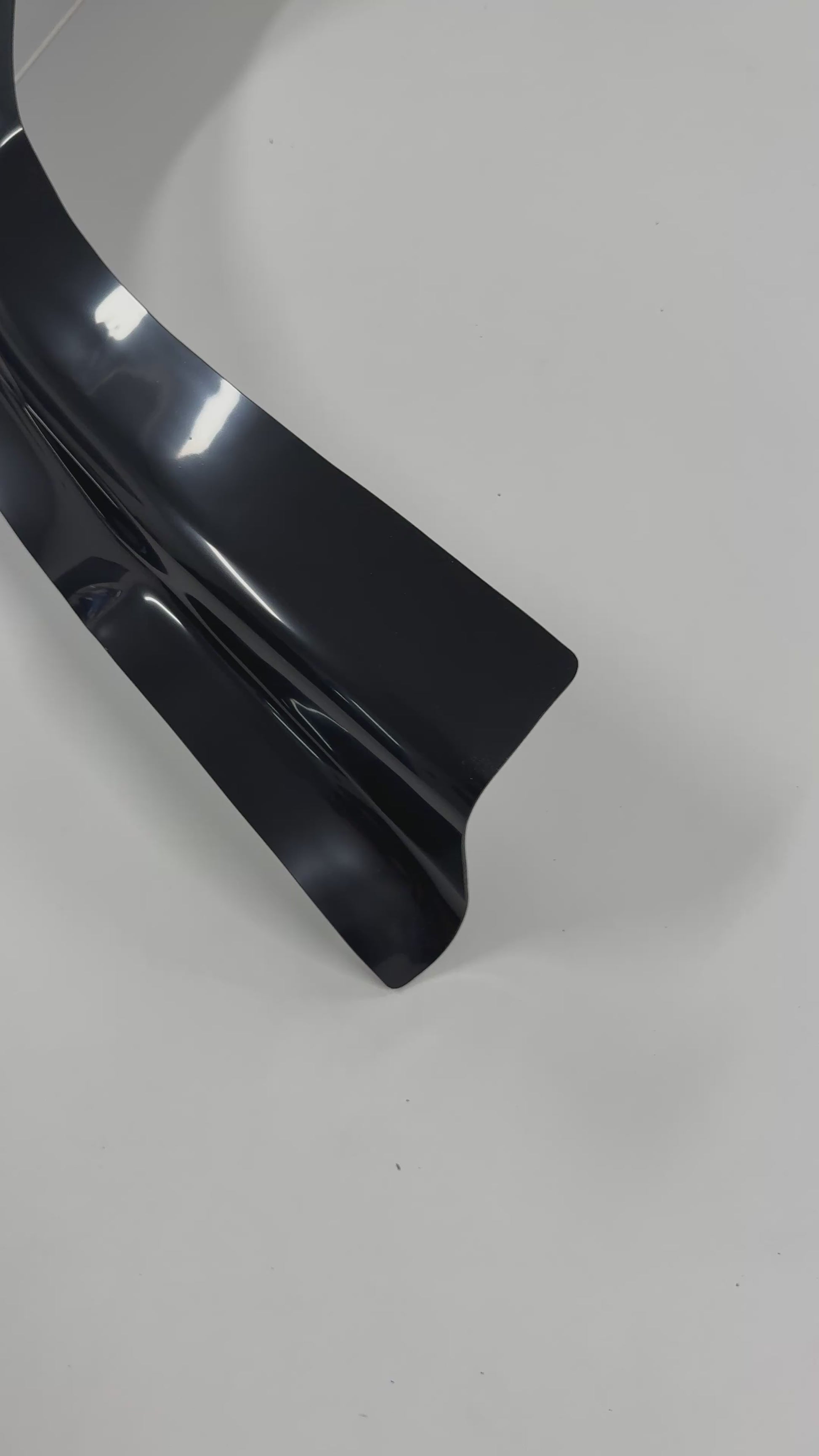

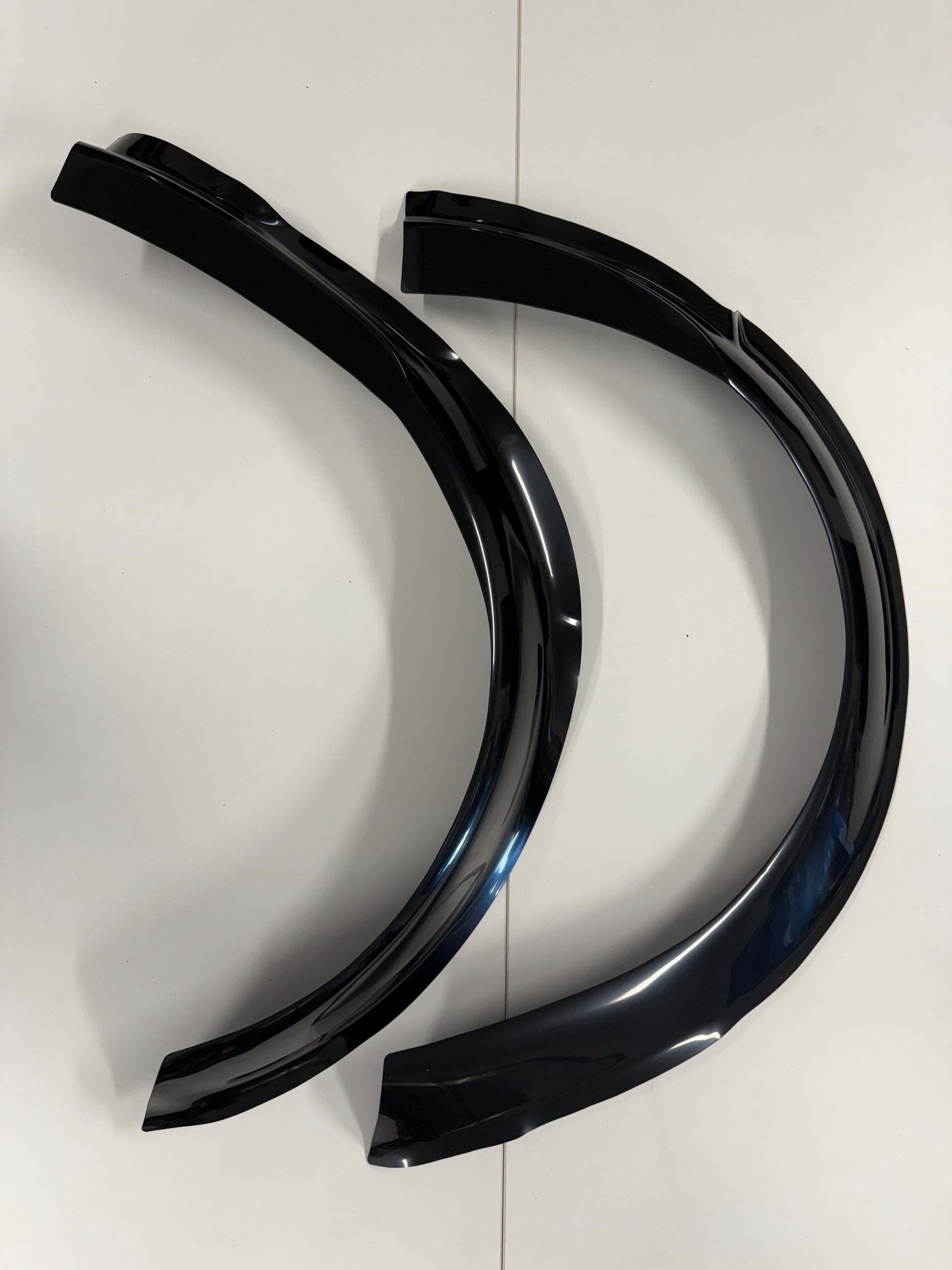

Manufactured from Thermoformed ABS plastic so they are durable and lightweight.

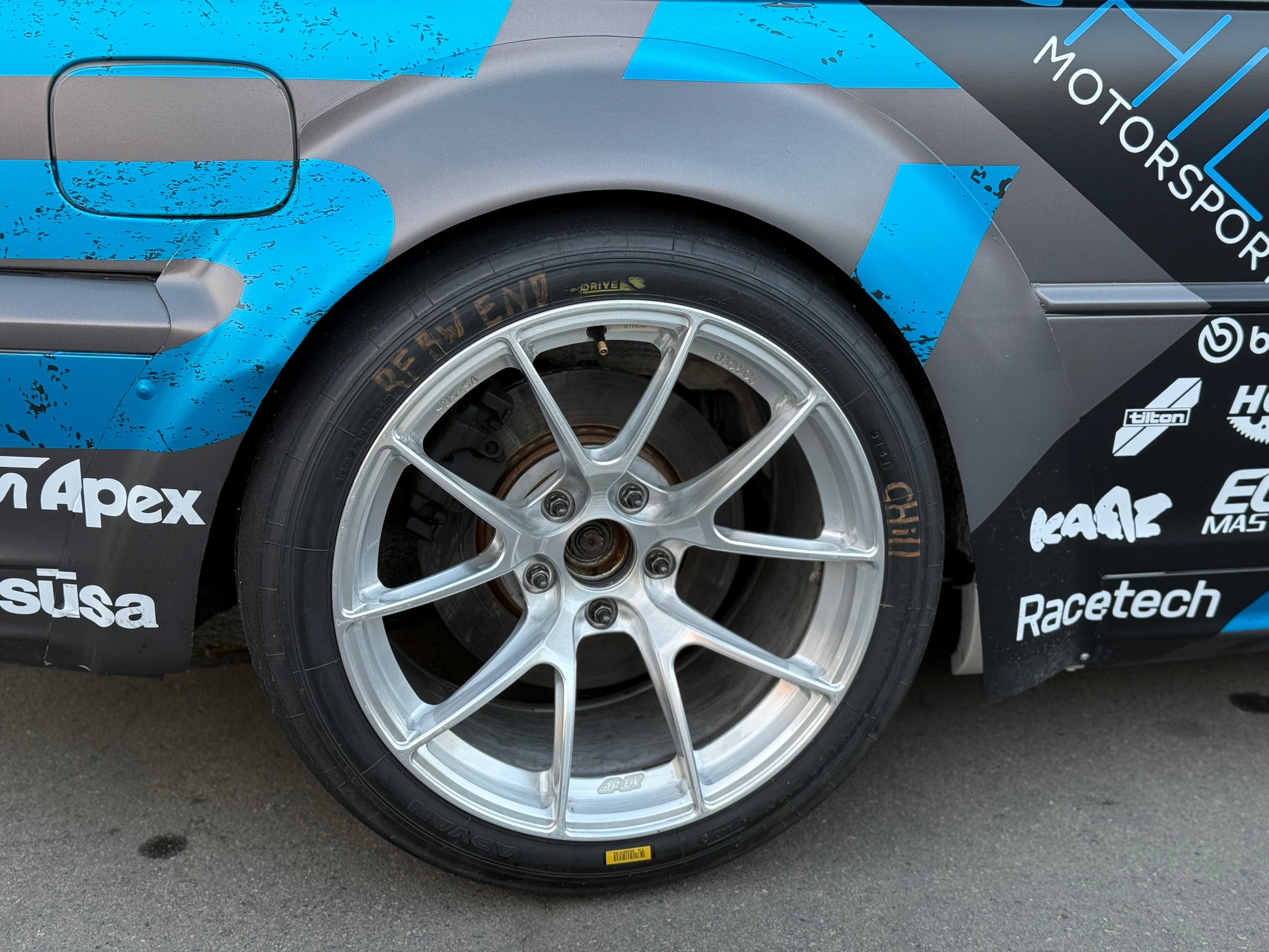

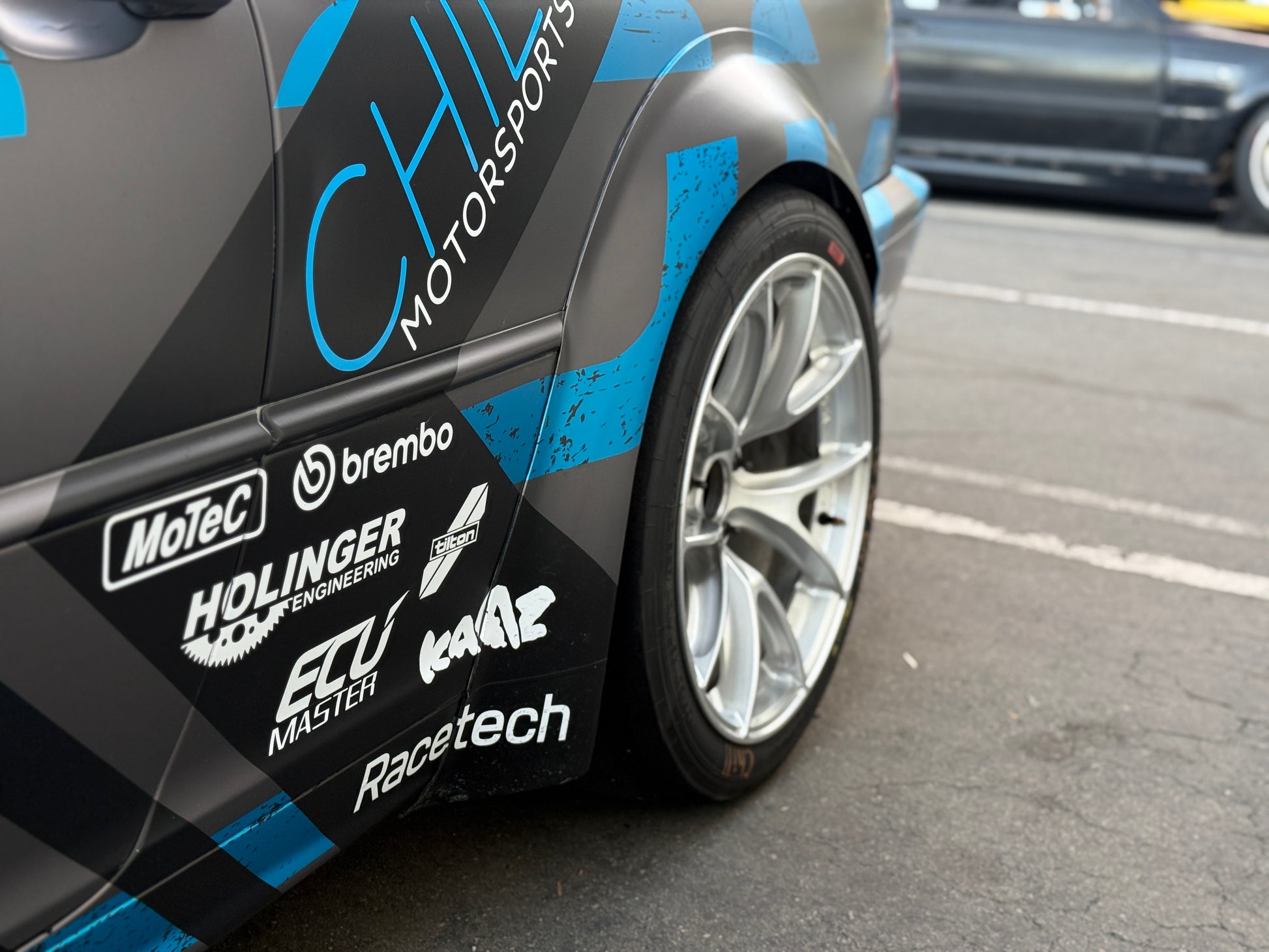

Tire size fitment depends on so many factor but we have fit the following on our B46 cars. The diameter of your front strut matter but we are running Ohlins TTX Pro dampers which is a larger diameter.
18x10.5 et32 Square with a 280/650 Yokohama Slick and 12mm front and 20mm rear spacers.
18x10.5 with a 275/35/18 Bridgestone RE-71RS
18x11 with a 295/35/18 ON THE REAR ONLY but with modifying the inner wheel well. Plan to do some work for this fitment.

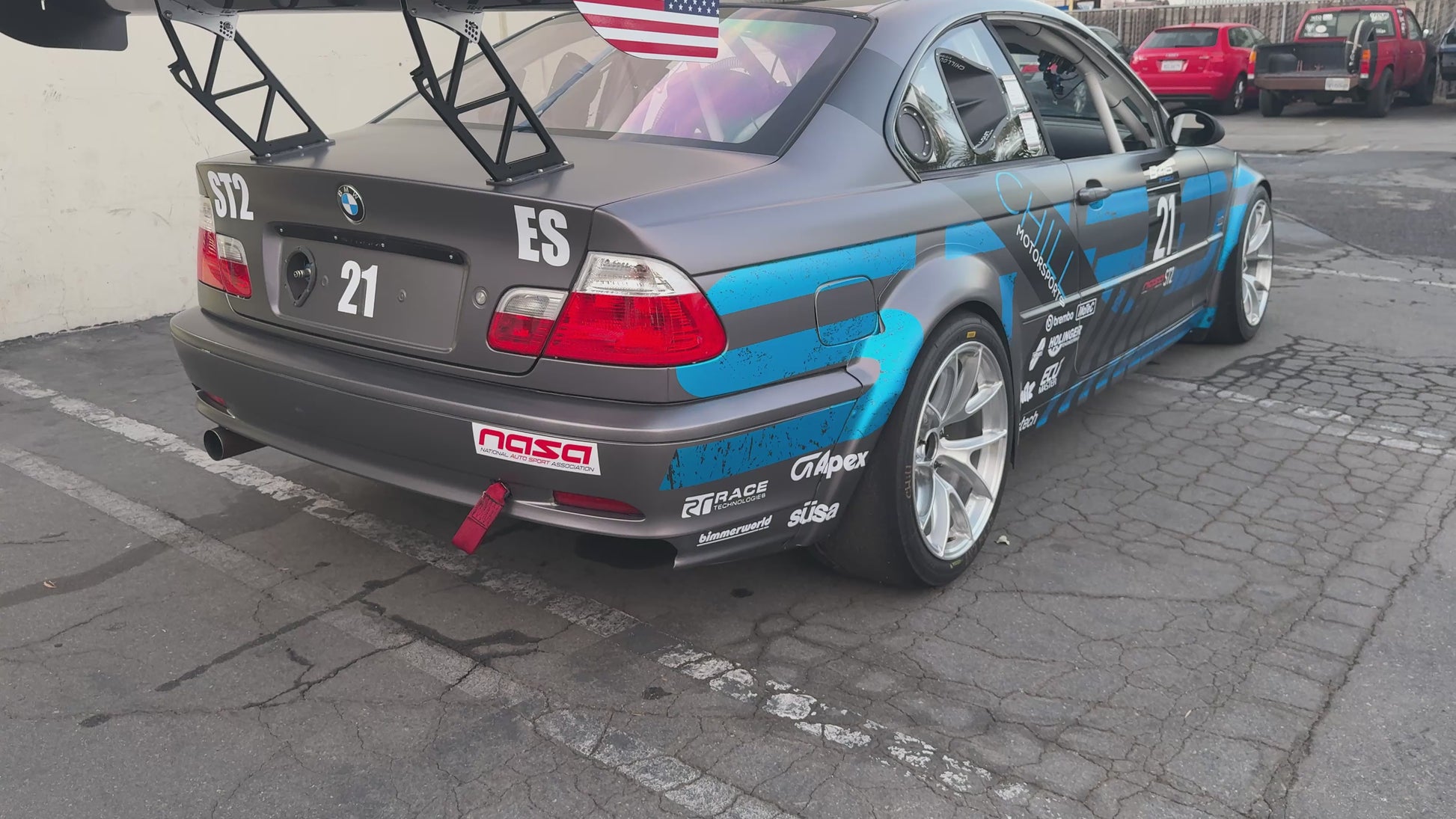

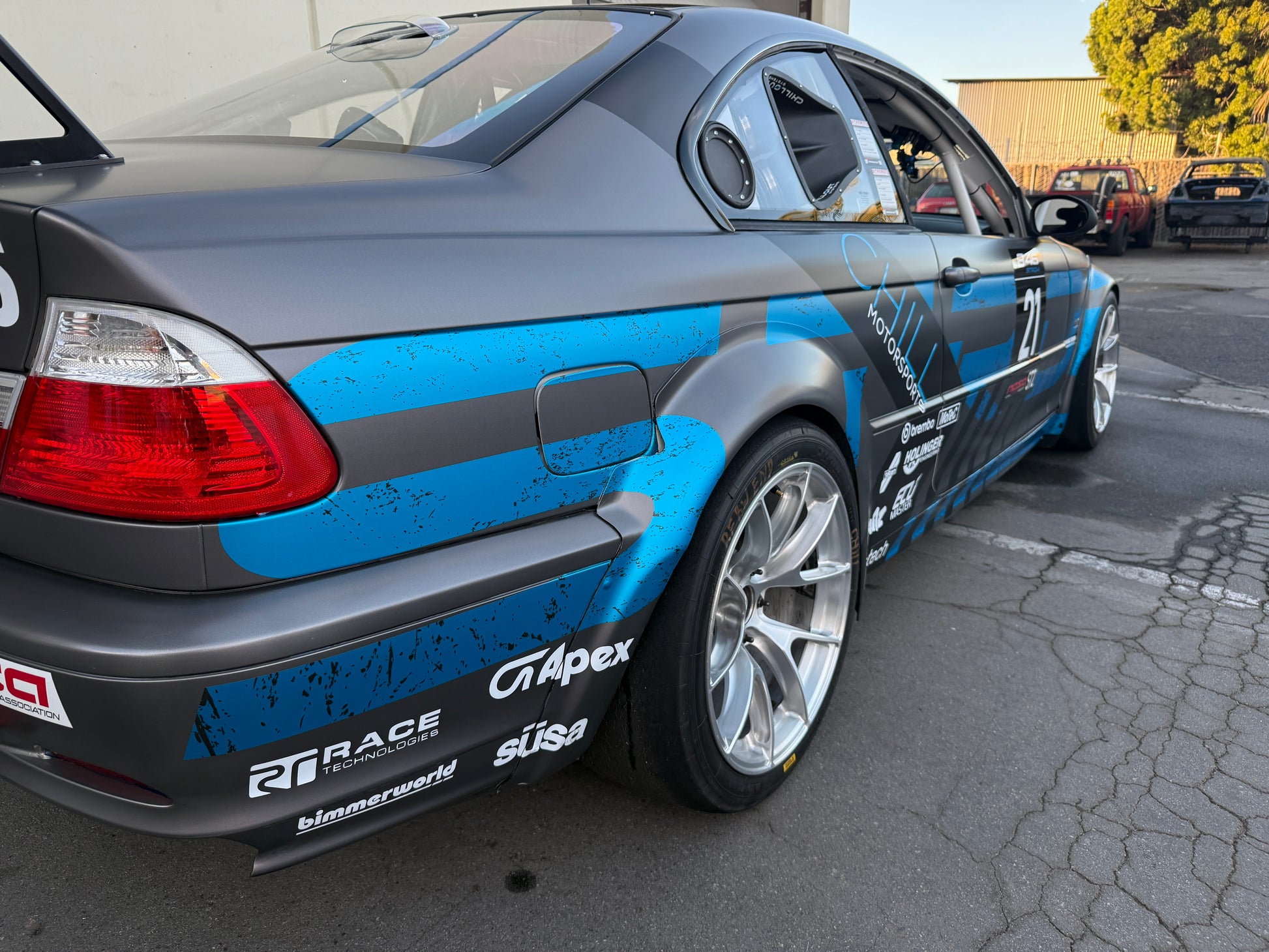

Flare contours perfectly match factory bodylines on the 2001-2003 E46 330 Coupe. They may also fit an LCI post 3/03 Coupe but we have not tried. We have set these up to fit over the rear 330ci bumper. You can cut the flare to meet up to the bumper instead.
