ECUMaster GPS to CAN with IMU V2

New and Improved GPS to CAN V2

• 25Hz refresh rate (20Hz on V1)
• IMU no longer needs to undergo calibration
• Improved measurement stability
•

ECUMaster GPS to CAN V2 module assures high-accuracy position tracking with a 25 Hz update rate. The module can use four navigation systems at the same time: GPS, GLONASS, Galileo, and BeiDou. An external, active antenna with a magnetic base is included with the module. Thanks to a built-in 3-axis accelerometer and gyroscope, the device can deliver information about speed, position, heading, altitude, accelerations, and angular velocities. All GPS data is transmitted via CAN bus. The GPS module is intended to work with the ADU display/logger and allows real-time lap timing, predictive timing, as well as data analysis after the session with a track map visualization.

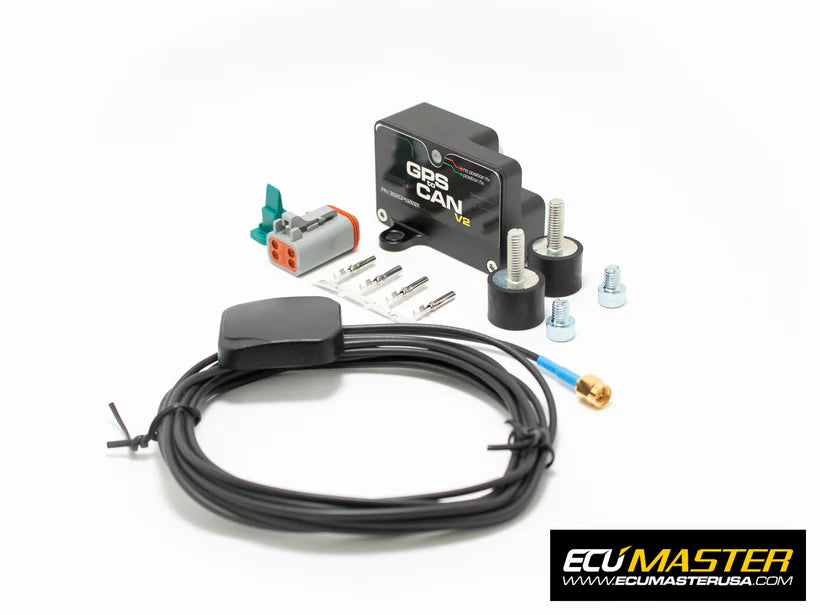

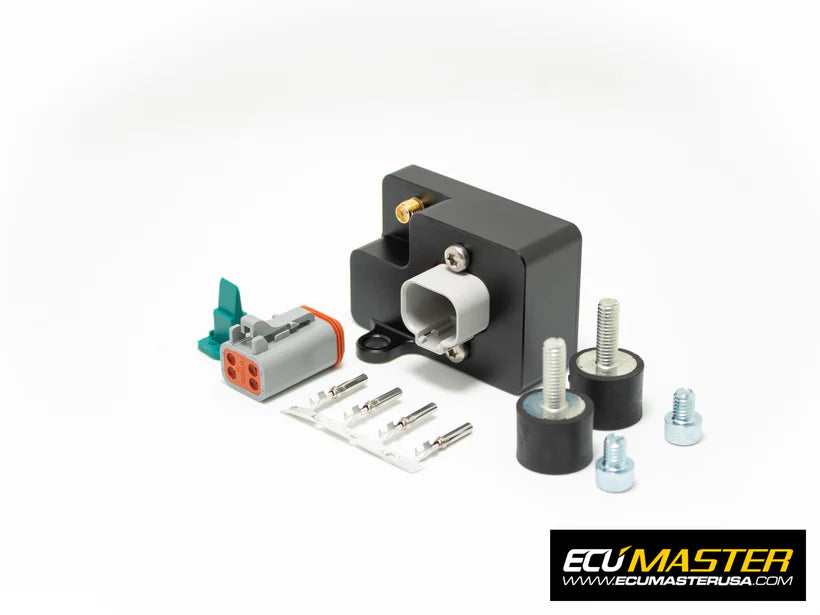

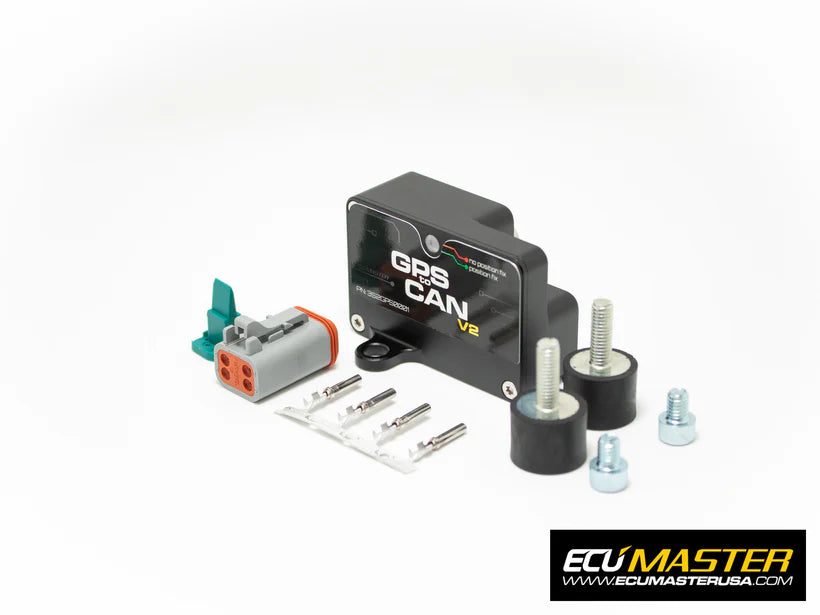

What's in the box?

• GPS to CAN Module
• Vibration isolating mounts
• 4 position Deutsch DT connector with terminals
• GPS Antenna
•

The GPS to CAN V2 device must be programmed using a CAN interface. The ECUMaster USB to CAN, Kvaser, or Peak PCAN may be used.

GPS TO CAN V2 - USER MANUAL

GPS TO CAN V2 - DRAWINGS
