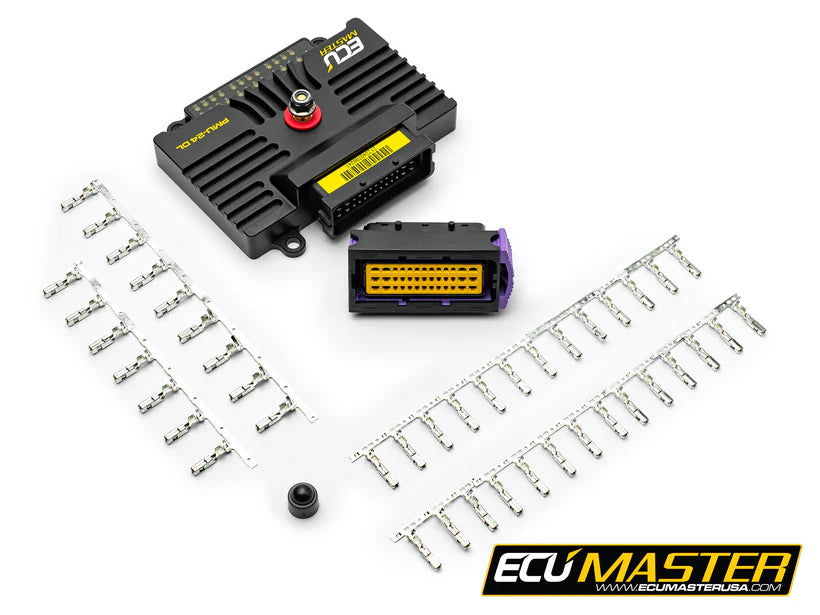

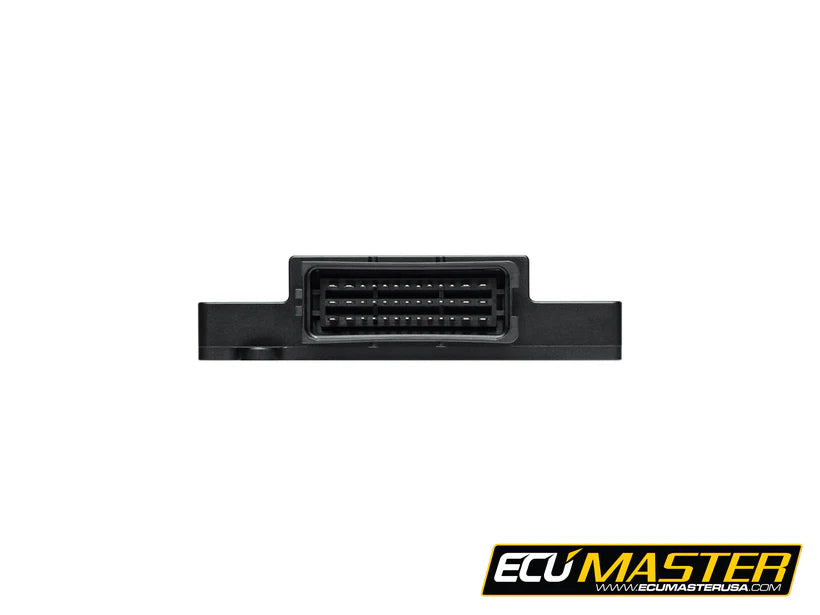

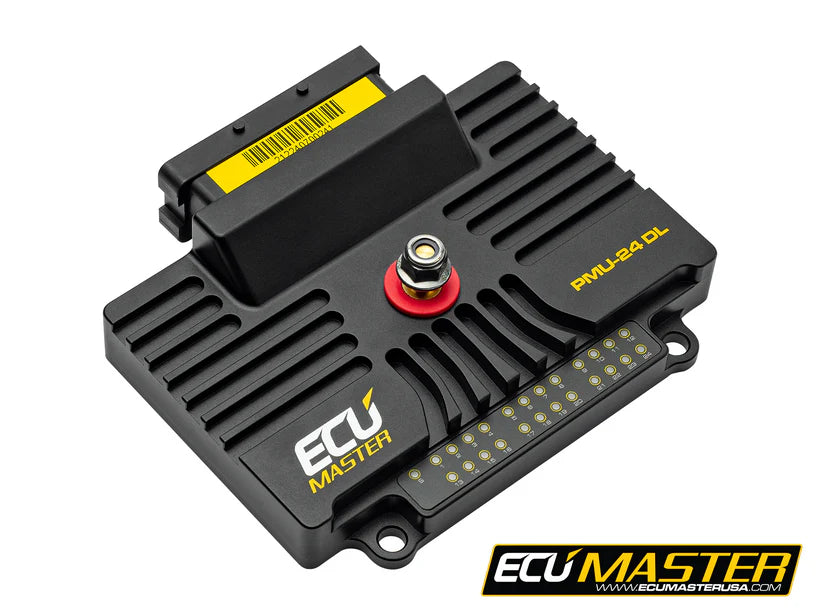

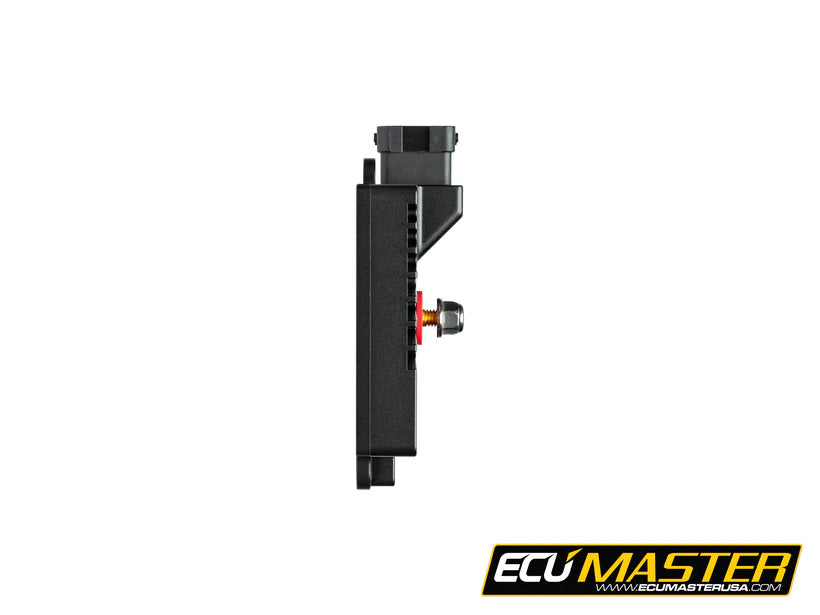

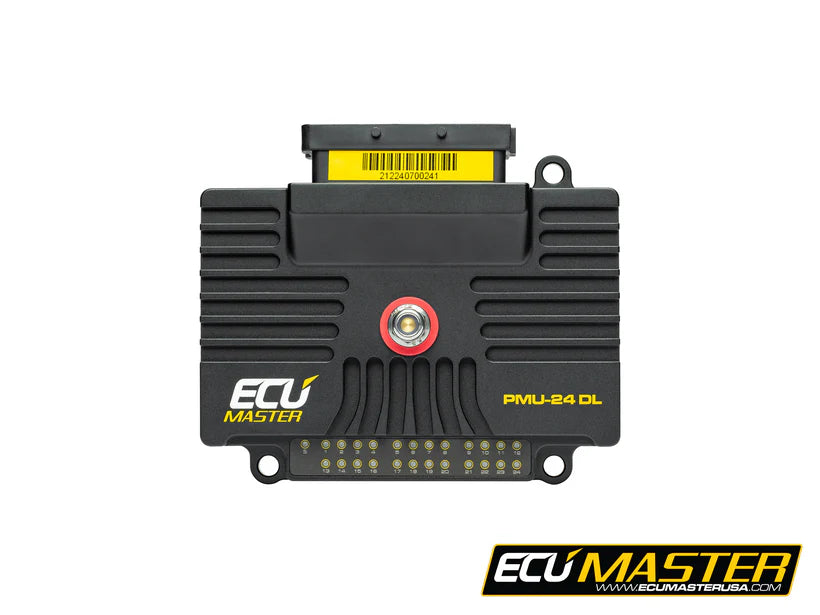

PMU-24 DL Power Management Unit
The PMU-24 DL is a new and enhanced Power Management Unit featuring all of the amazing functionality of the PMU-16, now with 24 high-side outputs and internal data logging memory as standard. Through clever engineering, 8 of the analog inputs may be utilized as 7 amp high side outputs. As standard with the PMU-16 series, all output states, voltage, and current information are able to be transmitted via CAN bus to a dash display to inform the driver of potential problems. In addition, all internally logged data can be downloaded from the device for later analysis.
KEY FEATURES
| 170 Amp continuous current capacity. | |
| Operating voltage: 6-22V (immunity to transients according to ISO 7637) | |
| Temperature range: AECQ-100 GRADE 1, -40 to +125°C. | |
| 10x 25 Amp high-side power outputs (PWM capable). | |
| 6x 15 Amp high-side power outputs. | |
| 8x 7 Amp high-side power outputs. | |
| Up to 16 analog inputs. | |
| 24x tricolor LED for each power output state. | |
| 2x CAN 2.0 A/B. | |
| 256 MB data logger memory. | |
| Up to 500 Hz logging frequency. | |
| Real-time clock for data stamping. | |
| 3D accelerometer/gyroscope. | |
| Built-in “inertia switch” in case of an accident. | |
| Easy access to CAN-bus data (imports and exports). | |
| Internal data processing using logical functions, numbers, timers, and tables. | |
| Custom PID controllers. | |
| Fully customizable ”logic” for each output. | |
| Flexible and intuitive client software. |
Option to add:
USB to CAN Module is used to communicate between your PC and the ECUMaster PMU. Multiple devices can be connected via CAN, and a single connection can be used to communicate with all devices at once (for example: race vehicles using multiple PMU units)
