This is a custom order part. Please contact us before ordering as input shaft, output shaft, gearing and bellhousing need to be selected.

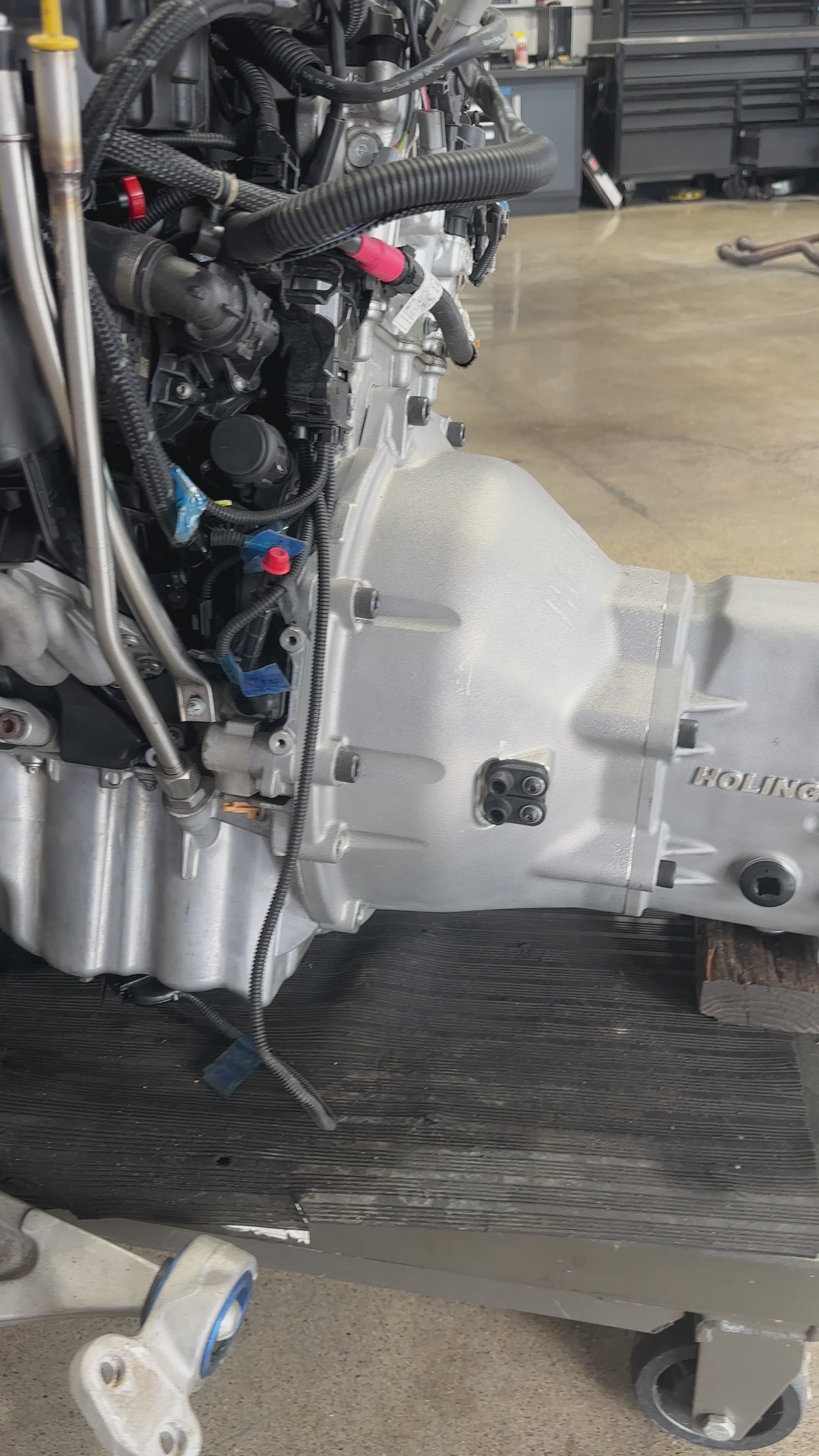

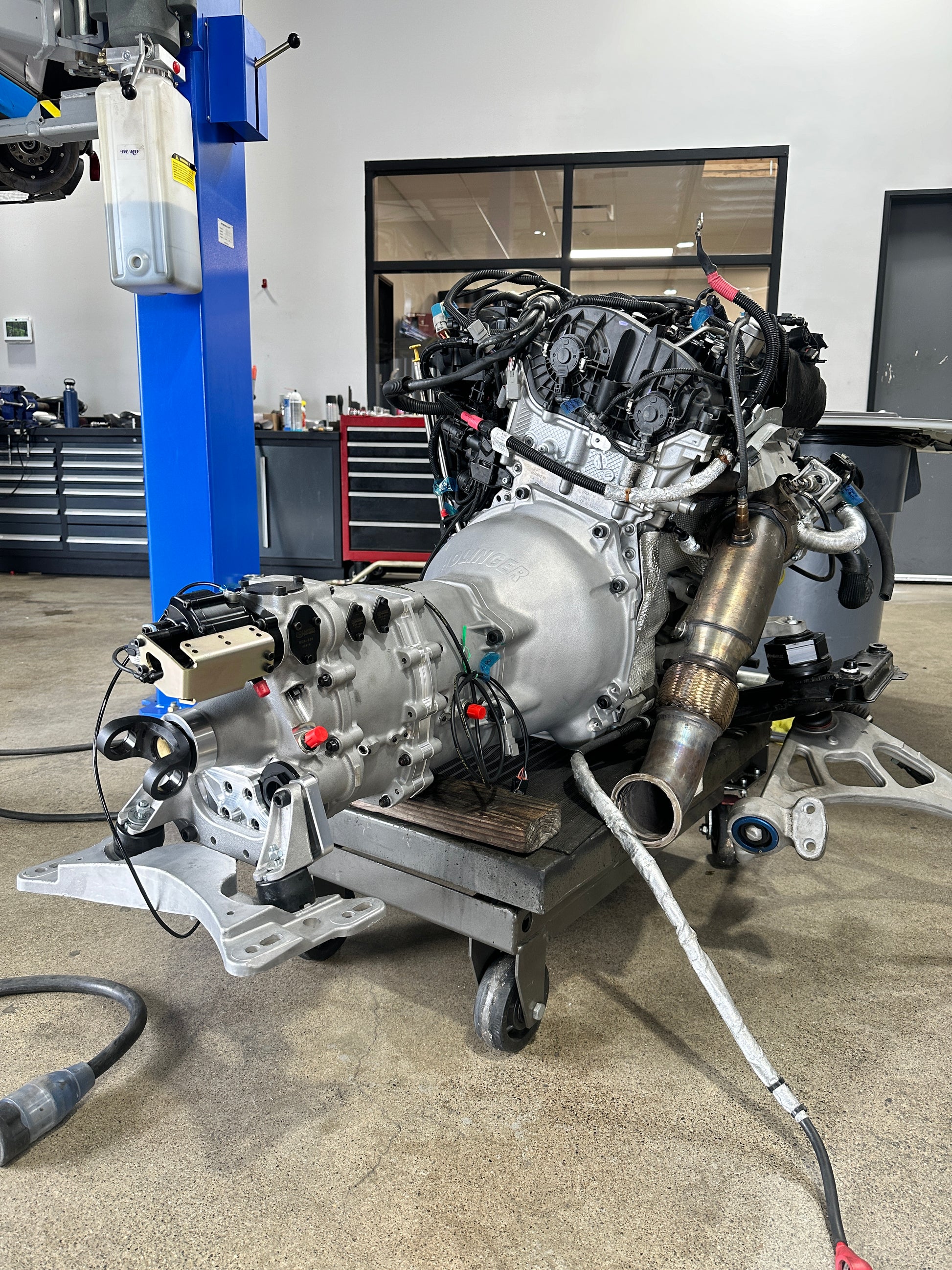

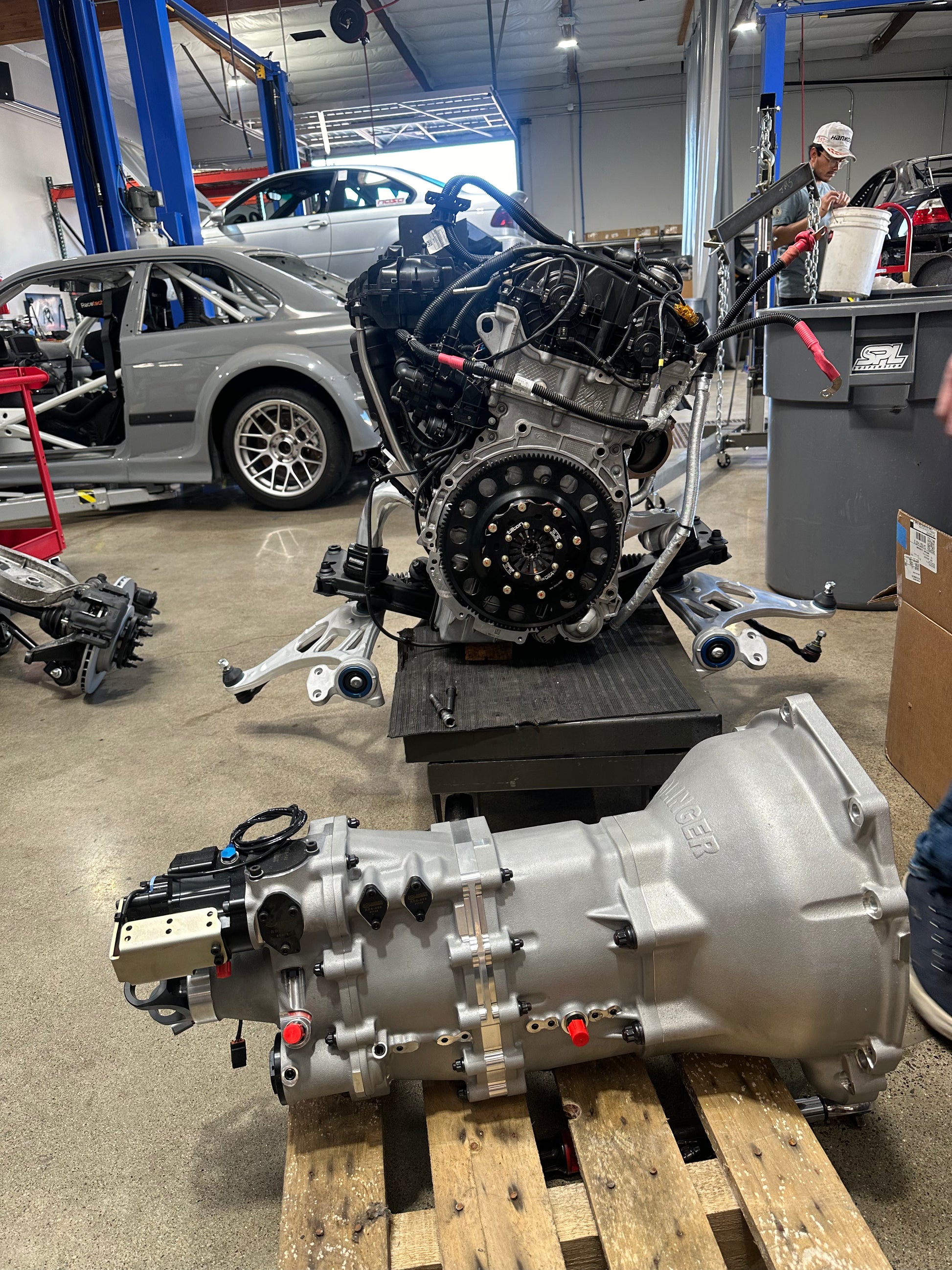

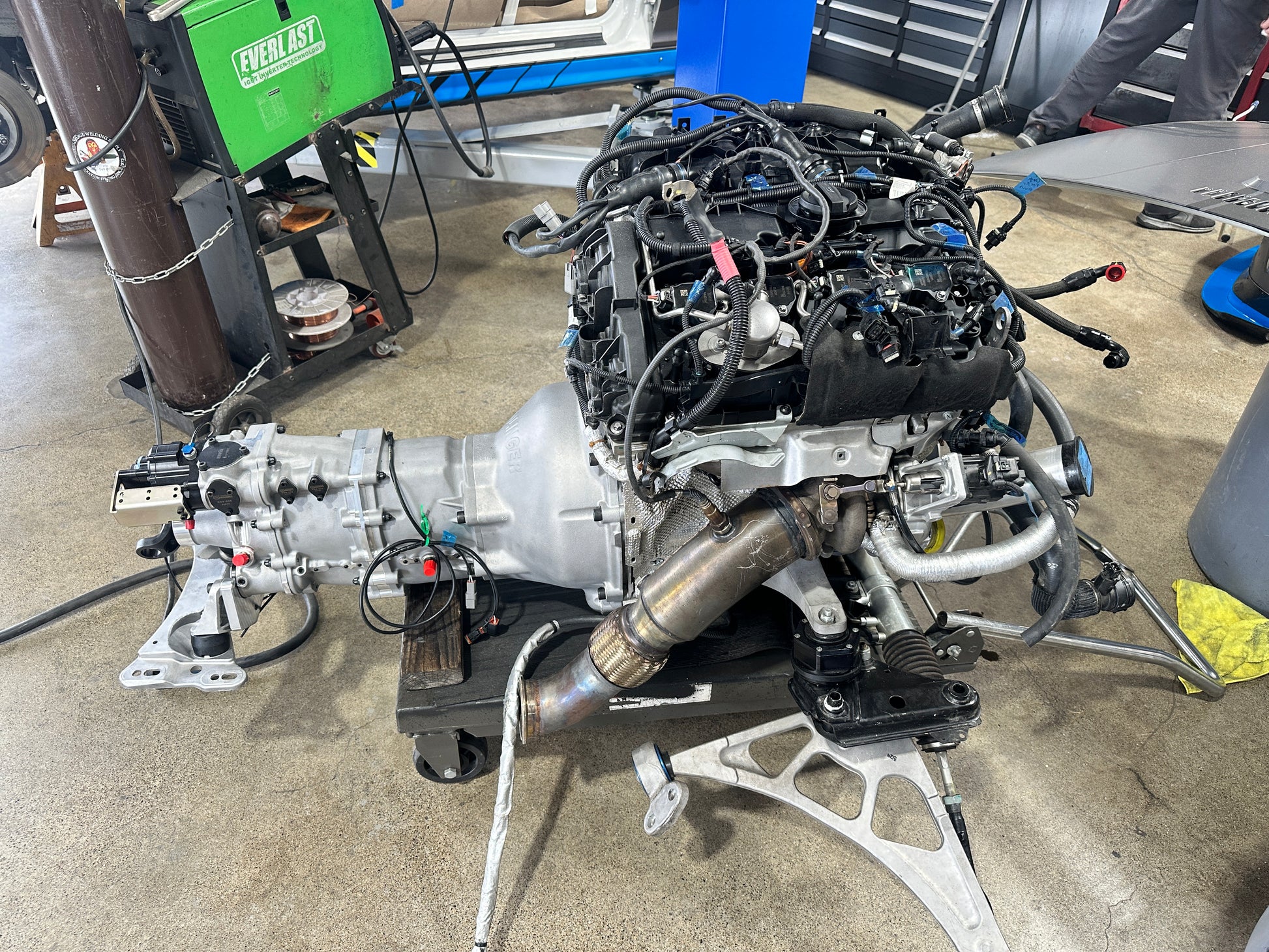

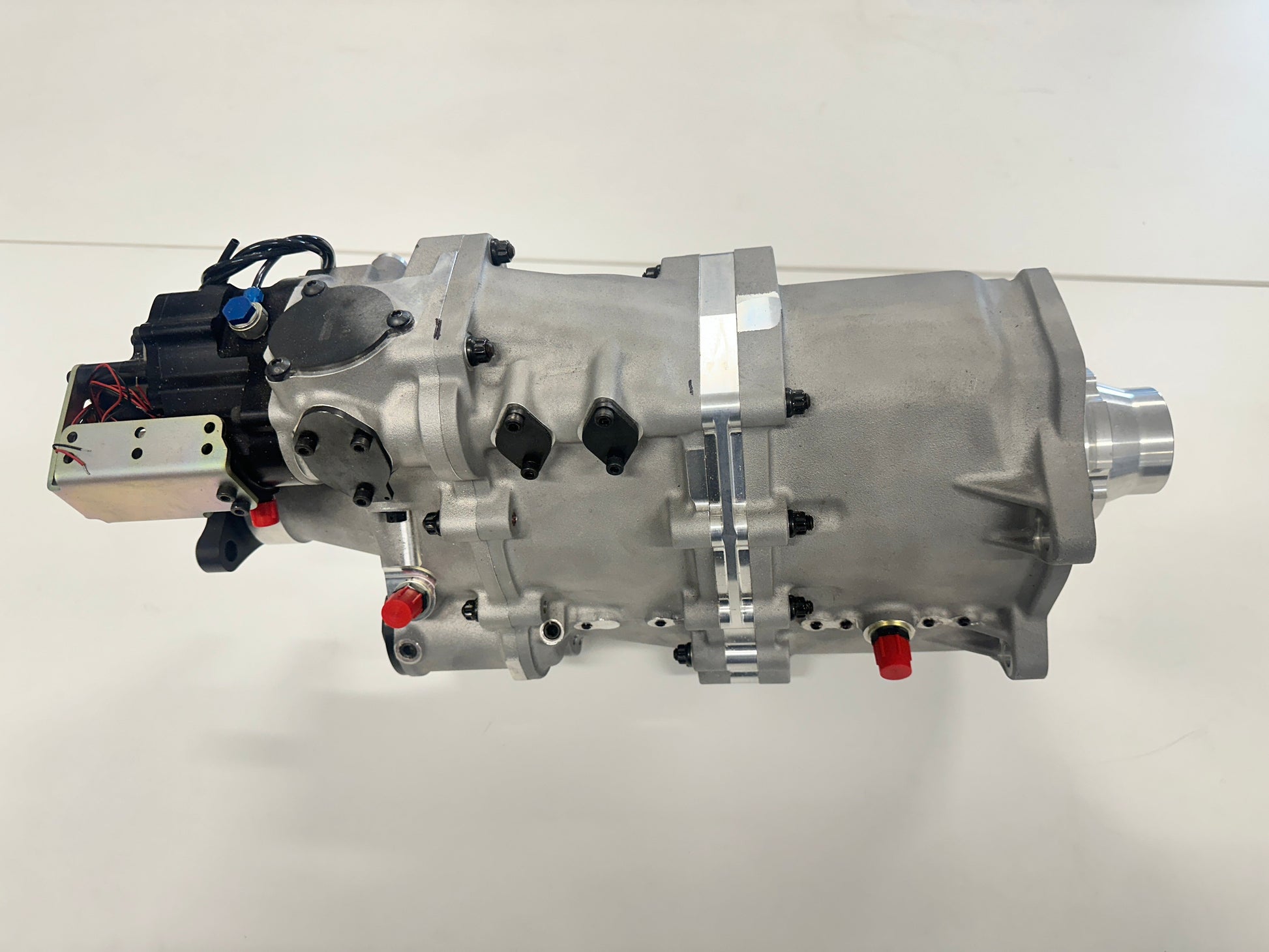

Sequential shift dog-change gearbox designed for use in longitudinal engined two-wheel-drive race cars.
As used in our B46 race cars.
Features
Torque rating for endurance events is 625Nm (460ft.lb).
The gearbox is fitted with 6 forward gears, a reverse gear and a pair of drop gears. The drop gears can be changed to alter the overall ratio of the transmission. All forward gears are profile ground for increased efficiency and durability.

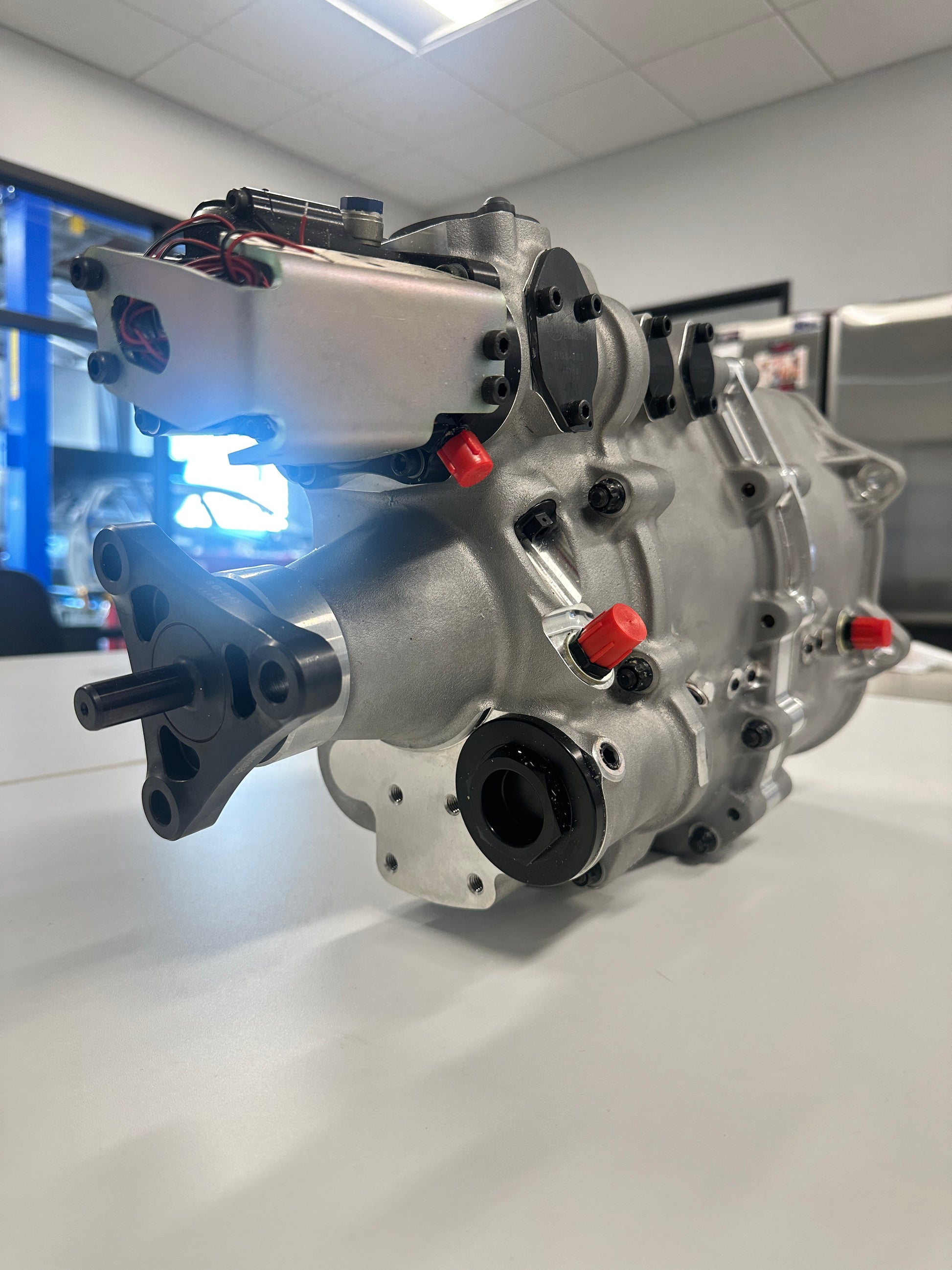

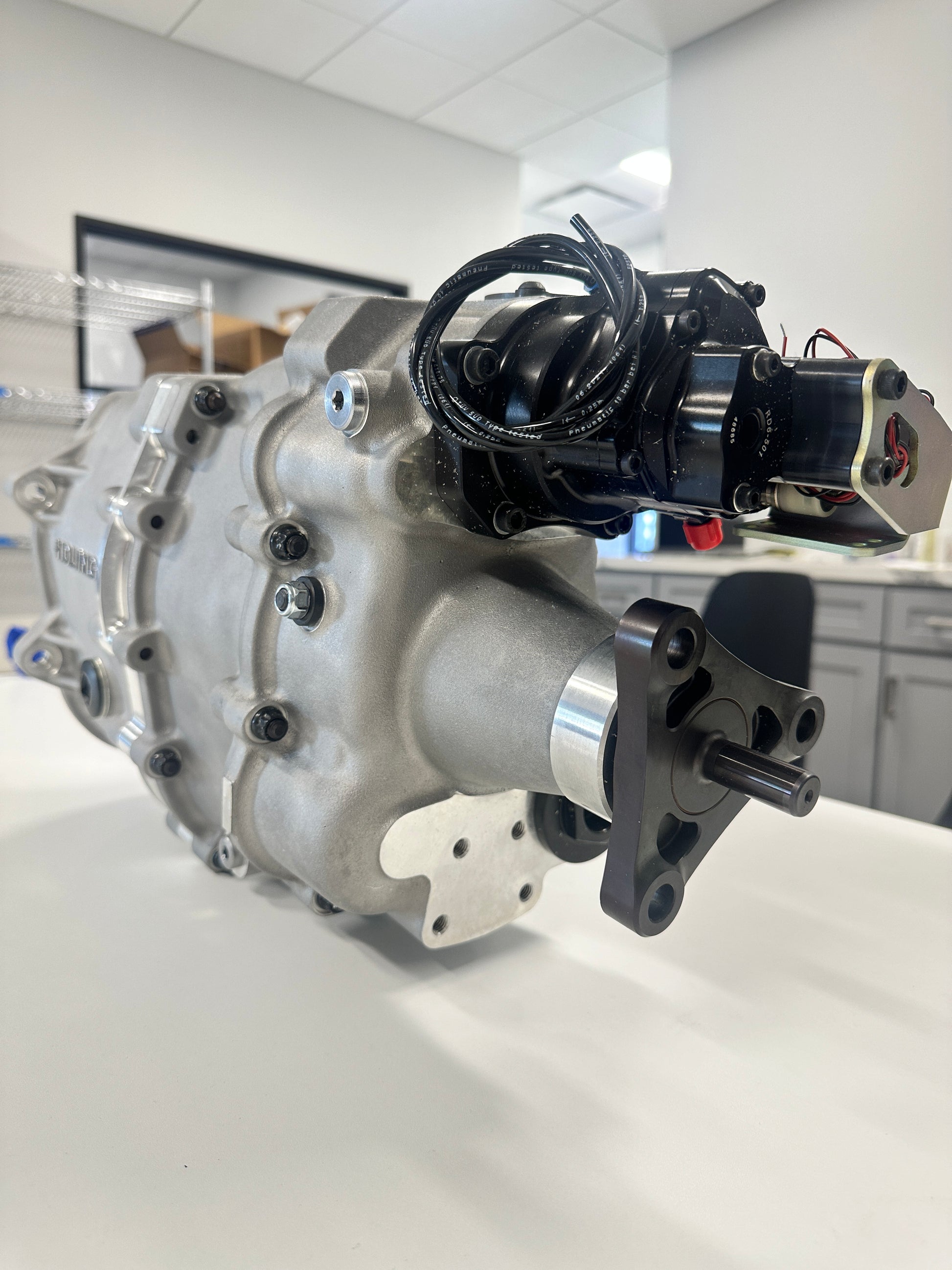

This version only comes pneumatically shifted and requires an air pump and a computer to operate.
The internal lubrication system consists of a magnetic / paper element filter, an oil pump with provision for an external oil cooler and an integral spray bar to feed cooled oil directly onto the gears.
All gears are removable from shafts with an extensive range of ratios available.

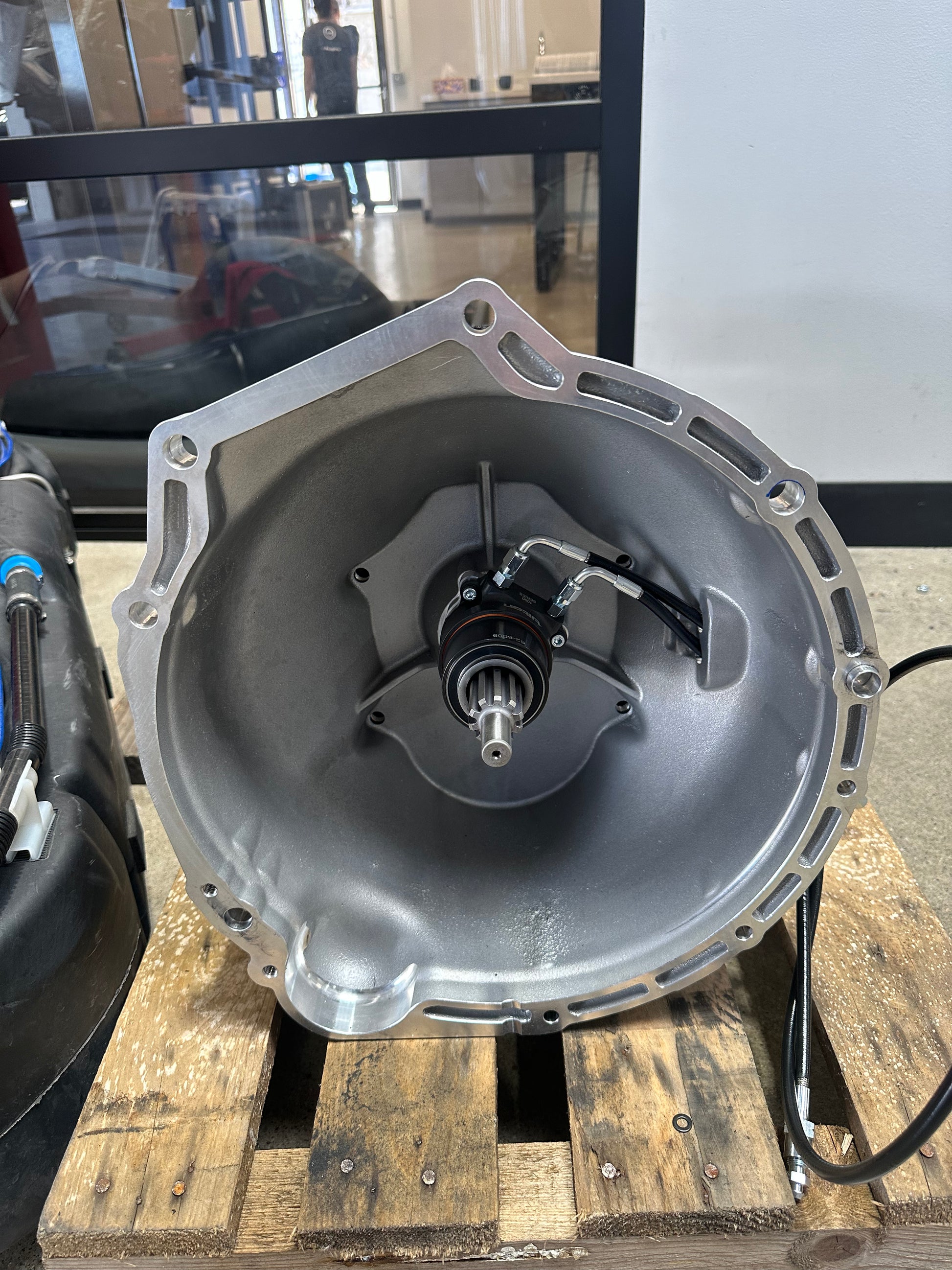

Input is via a removable quill-shaft which can be customized to suit individual requirements.

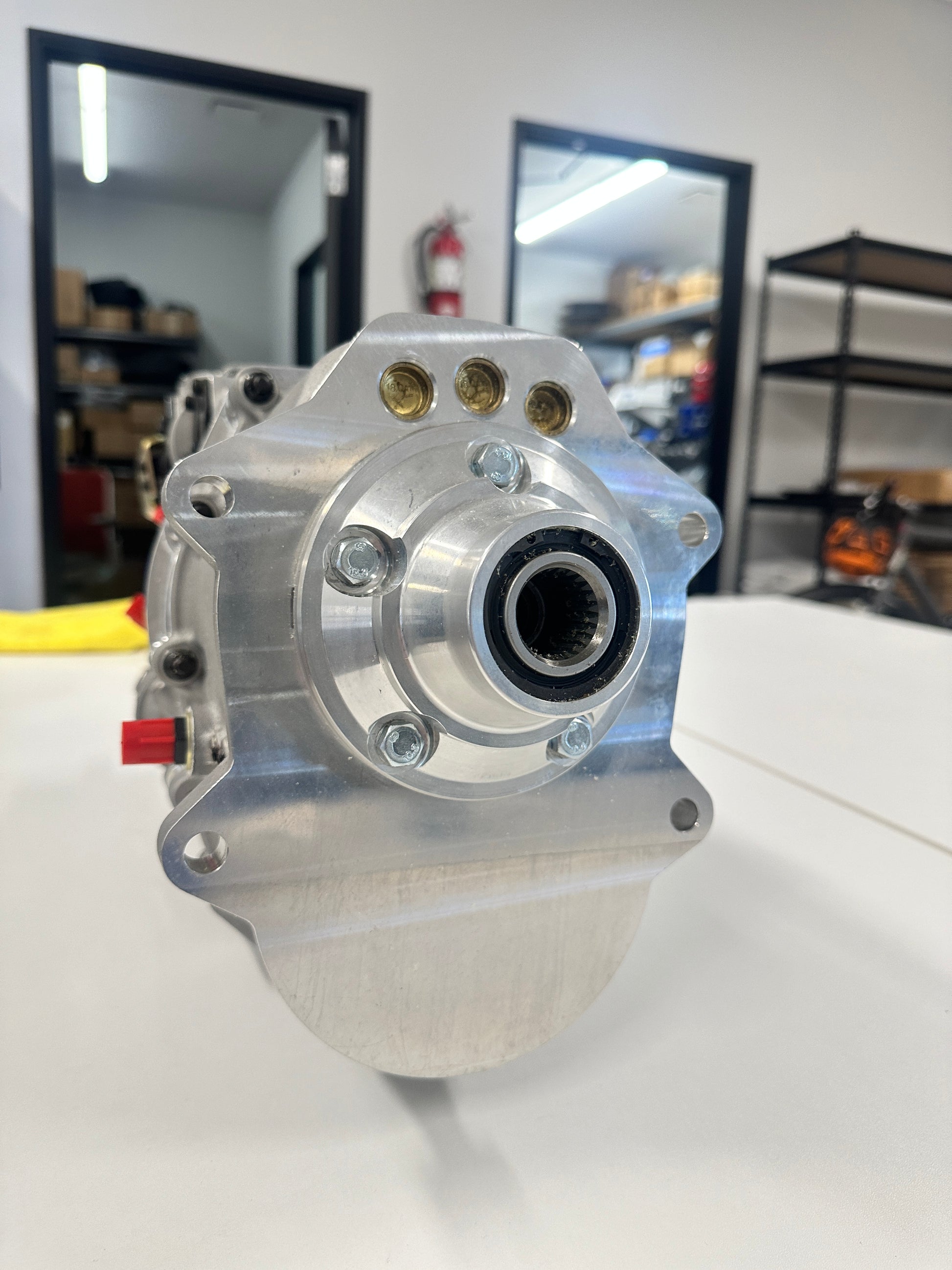

Output is via a fixed flange or slip yoke which can be customized to suit individual requirements.
