Motec

Motec C127 7" Color Display W/USB

Motec C127 7" Color Display W/USB

SKU:

Regular price $3,280.00 USD
Regular price Sale price $3,280.00 USD
Sale Sold out
Shipping calculated at checkout.
C127 Track Kit

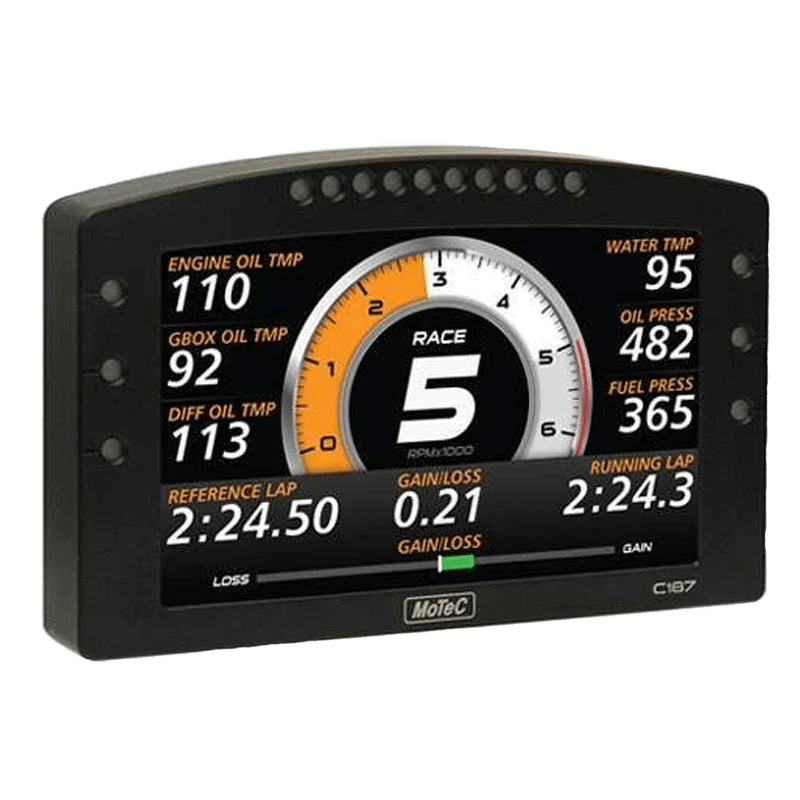

Motec C127 Display

The Motec C127 is our go to dash for street and track car builds. With nearly infinite programmability it can be adapted to any car and situation.

Main uses:

- Lap timing and logging including predictive

- Accurate and gear specific shift light settings

- Fully customizable warning lights. For example you can program an oil pressure light to come on at 8 psi if under 1500rpm but also come on at 30psi at 5000rpm if above 80% throttle for more than 1.2 seconds.

- Used to control outputs like engine fan, PWM thermostat, relays for other systems.

- CAN bus programming to both receive and transmit any signal.

- As a fully customizable microcontroller the C127 can perform any task in a race car that you can think up.

Call us for more unlock options like Display Creator, Pro Analysis etc.

NOW WITH UP TO 32GB OF LOGGING VIA USB!

The C127 is a popular model in MoTeC's range of color Displays and Display Loggers. Striking in design and powerful in functionality, the C127 offers display, data logging, auxiliary control and programmable LED's all in one compact device.

The vivid 176mm screen (approx 7") is high resolution, ultra bright and anti-reflective for easy reading in direct sunlight. Choose from numerous selectable layouts and configure the channels and labels to suit, or opt for the new Display Creator upgrade and treat your screen as a blank canvas; design your own unique graphics, incorporate images, logos and custom icons. Create multiple pages to suit different scenarios, optimizing the screen space for your application.

The C127 also features an array of ten full color LED's integrated into the unit for use as shift lights, warning lights or other driver alerts. The color, function and intensity of each LED is programmable, allowing users to develop their own unique strategies and sequences.

BASIC SPECIFICATIONS

Display

NEW: For full customization of the display layout and graphics add the new Display Creator option.

  • Screen: Color TFT LCD, anti-reflective
  • Resolution: 800 x 480, anti-aliased graphics
  • Selectable fixed layouts with channel and label configurability
  • 48 user-defined, scrollable message lines with programmable overrides
  • 3 programmable 'pages', for example Practice, Warm-Up, Race

Communications

  • 2 x Configurable CAN buses with individually programmable CAN bus speeds
    • One can be used as RS232 Receive
  • RS232: 2 x RS232 ports
  • One with Transmit and Receive
  • One with Receive only

Physical

  • Dimensions 196.2 x 122.5 x 24.9 mm excluding connector
  • Weight 615 g
  • 1 x 34 pin waterproof connector

Logging (optional - requires Logging Upgrade)

  • 120 MB logging memory
  • Logging rates up to 500 samples per second
  • Fast Ethernet download
  • Includes i2 Standard data analysis software (i2 Pro available as an upgrade)

Inputs (optional - requires I/O Upgrade)

  • 6 x analogue voltage inputs
  • 2 x analogue temperature inputs
  • 2 x digital inputs
  • 3 x speed inputs

Outputs (optional - requires I/O Upgrade)

  • 4 x low side outputs
    • PWM or switched operation

Internal Sensors

  • 3-axis G sensor
  • Dash temperature sensor
  • Sensor supply voltage
  • Battery voltage

Expanders

  • Compatible with MoTeC E888 and E816 Expanders, providing full functionality.

Options Include:

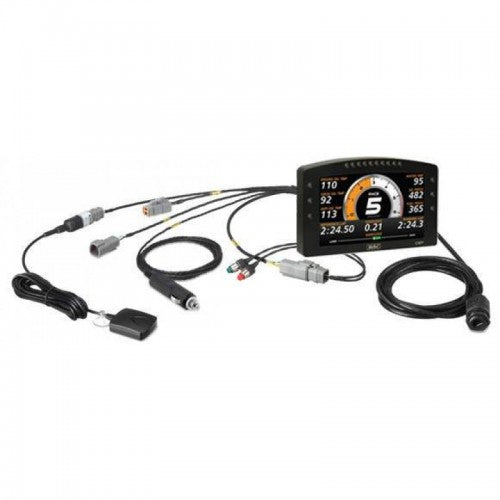

The C127 Track Kit is a cost-effective, plug-in display solution based on our new full color C127 Display. Offering professional level features at a club price, the kit is quick and easy to connect, requiring no previous experience with MoTeC systems. Each component simply plugs into the professionally wired and terminated loom, which comes complete with a handy plug-in power adaptor. The kit is expandable and can be adapted and expanded to suit various applications.

The C127 Track Kit includes:

  • C127 Display
  • 10 Hz GPS
  • Two buttons, pre-wired
  • Professional quality plug-in loom, terminated and labelled, with plug-in power adaptor
  • Ethernet Cable

C127 Track Kit Options -

  • The C125 will connect directly to the factory ECU of many late model vehicles using the optional plug-in OBD-II adaptor, providing access to important engine data.

  • Customers with MoTeC ECUs can connect to the C127 with our plug-in CAN or RS232 adaptors. Some other aftermarket ECUs may also connect with these looms.

  • Logging can be added to the C127 at any time, allowing for comprehensive data analysis in MoTeC's i2 software. This option is conveniently enabled using a password activation.

  • For those wishing to expand their C127 Race Kit further, an I/O upgrade will activate additional inputs and outputs for greater functionality. A pre-wired, terminated I/O Loom is available, or customers can use their own.
