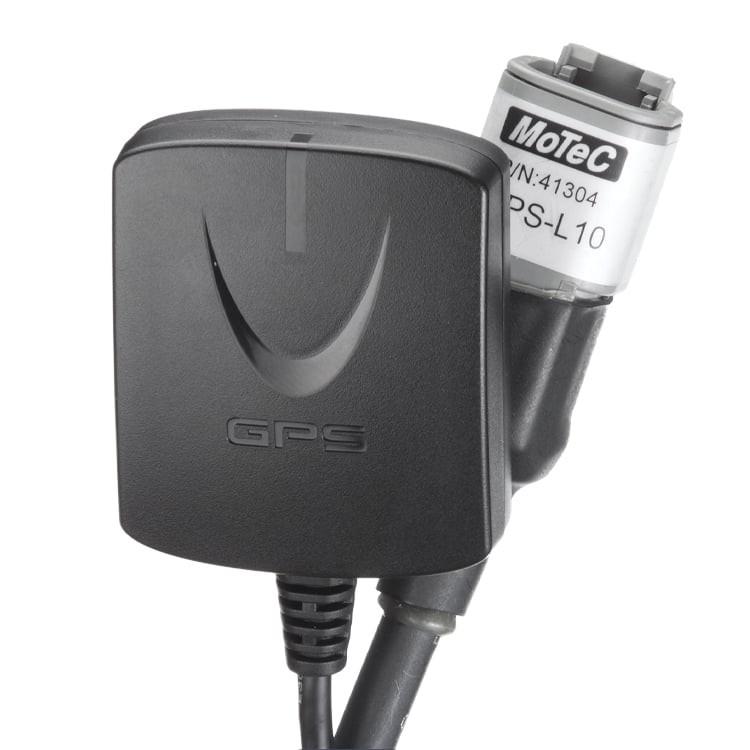

Motec GPS-L10

The GPS-L10 is a 10 Hz GPS which combines the electronics and antenna into one small unit. A highly sensitive receiver allows the GPS to lock onto signals even in difficult environments. It is fitted with a DTM connector and is pre-configured to be compatible with MoTeC Dash/Data Loggers. It is not compatible with MoTeC Mx00 ECUs. (See GPS-L5)

This unit is suitable for speed, position and lap timing.

Compatible with

• MoTeC M1 Series ECUs
• MoTeC C125, C185
• MoTeC ACL
• MoTeC ADL3, ADL2 (not compatible with original ADLs)
• MoTeC SDL3, SDL

SPECIFICATIONS

Performance

• Update rate 10 Hz

• 66 satellite channels

• Dynamics 4 G

• Power supply voltage 4.0 – 6.0 V

Communications

• RS232
• Baud rate: 38400

Physical

• Case size 48 mm x 41 mm x 14 mm

• Weight 106 g

• 1 x 4 pin Deutsch DTM, 3 m flying lead

• Built in antenna

• Mounting - magnetic base
