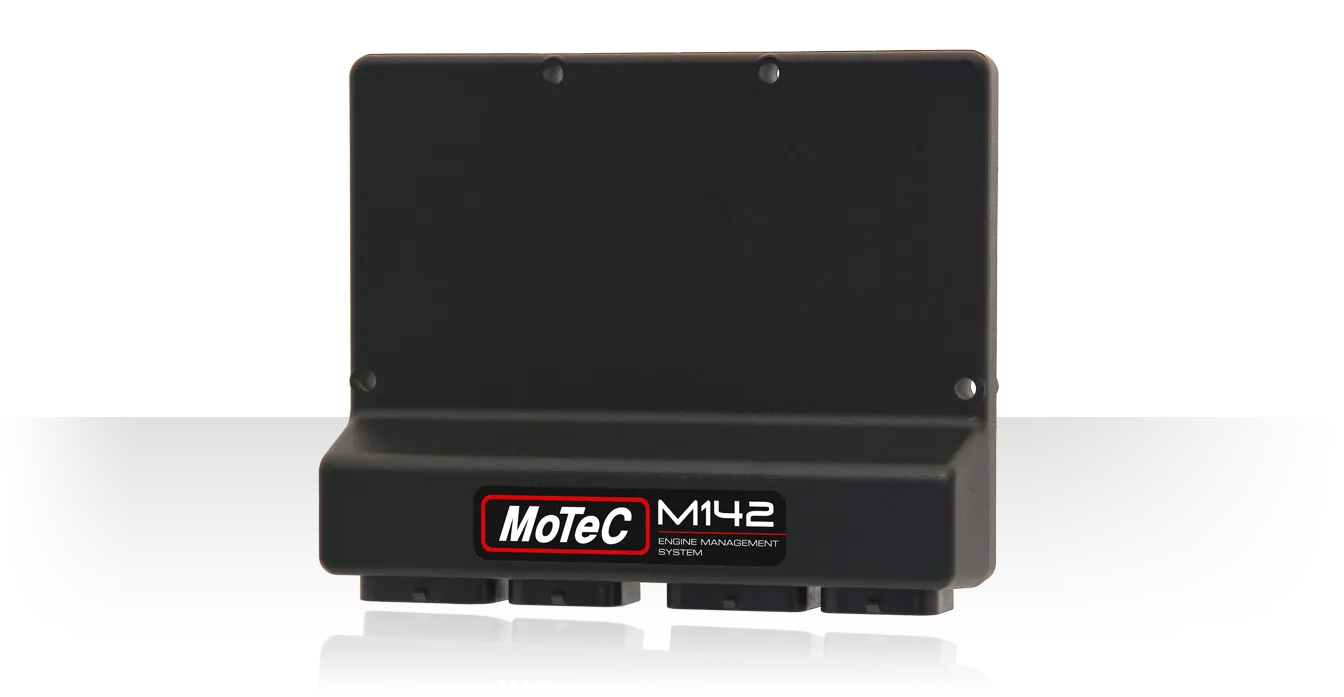

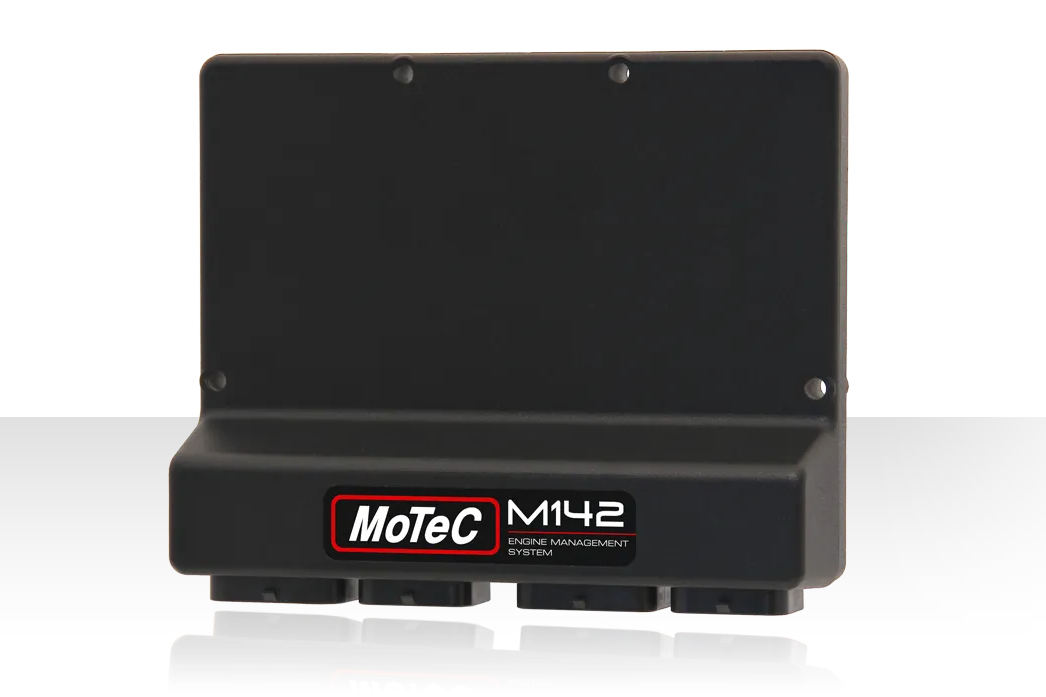

MoTeC M142 ECU

MoTeC M142 ECU

M142

$3,995.00 USD
$3,995.00 USD
Sale Sold out
Shipping calculated at checkout.
Logging Level

Out of stock

MoTeC's unique M1 technology redefines the meaning of customization, delivering total control without compromise, while highly advanced security strategies make these ECUs ideal for both category managed and unrestricted applications.

The M142 is a Diesel/Direct Injection ECU that offers full control for most modern, high pressure, solenoid direct injectors, without the need for additional amplifier boxes.

Features

  • Small and light in robust magnesium enclosure
  • Latest generation high performance processor
  • Suitable for modern engines with DBW, Cam Control and multiple CAN buses
  • Robust and comprehensive security features
  • Flexible tuning software
  • Programmable injector drive characteristics
  • Programmable digital inputs for Ref/Sync, wheel speeds etc.
  • Programmable trigger levels and diagnostics
  • All Low Side and Half Bridge outputs have PWM capability
  • With Logging Level 3 enabled:
    • Advanced logging features, high speed, multiple logs (with access logins)
    • Logging sets can be partitioned with access logins granting different information for different users from the same device. For example judicial (scrutineering) and team member access
Injector
  • Direct Injector Outputs: 8
  • Max Peak / Hold Current: 20 A / 15 A
  • Injector Voltage min / max: 20 V / 80 V
  • Low Side Injector Outputs*: 6
Ignition
  • Low Side Ignition Outputs*: 8
Unused ignition and injector outputs can be used for other functions like cam or boost control solenoid operation
Auxiliary Outputs
  • Half Bridge Output: 10
Inputs
  • Universal Digital Input: 12
  • Digital Input: 4
  • Analogue Voltage Input: 17
  • Analogue Temperature Input: 6
  • Narrowband Lambda*: 2
  • Knock: 4
Narrowband Lambda sensor function not supported in GP Packages
Data
  • CAN Bus / RS232 / LIN: 3 / 1 / 1
  • Logging Memory: 250 MB
Physical
  • Dimensions: 162 x 127.5 x 40.5 mm
  • Weight: 445 g
  • Connector: 2 x 34 pin + 2 x 26 pin Tyco
Electrical
  • Supply Voltage - Normal Operation: 8 V to 32 V
  • Typical no-load supply current: 0.34 A at 13.8 V supply
Logging Upgrades

There are three Logging License levels. The level determines the number of channels and sample rates available. Logging Level 1 License is diagnostic logging, which comes standard with the product, and includes a fixed log set and sample rates.

  • Logging Level 2 Licence: includes 2 log sets, up to 200 channels (including Level 1 diagnostics logging) and a maximum 200 Hz sample rate.

  • Logging Level 3 Licence: includes 8 log sets, up to 2000 channels (including Level 1 diagnostics logging) and a maximum 1000 Hz sample rate.
