STROM B46 / B48 Motec DI Super Swap Package for E46 (Kit 5)
STROM B46 / B48 Motec DI Super Swap Package for E46 (Kit 5)
SKU:100.005
Out of stock
Please contact us before purchase to discuss all of the details that apply to this kit.
B48 Engine Management FAQ
This package is meant to provide everything you need to convert your E46 into your project that closely matches the powertrain of a B46. It is a lot of parts and would be used if you are planning to build a car from scratch. It is also meant to give people an idea of what they could do and then delete parts as necessary. They key reason you would buy this package is that the software that is in each control unit is integrated to every other control unit so once you wire everything up we just remote in, load the software packages, calibrate some sensors and you start it up! You purchase the engine and trans yourself as we don't do anything major to these items and they are used parts so you are free to purchase as nice a part as you want.
What You Provide (we will send a doc with specifics):
- Junkyard B48D engine
- Junkyard 6 Speed manual transmission
- Labor
- Junkyard Volvo Power Steering Pump (Optional)
What we provide:
ENGINE AND TRANS BITS:

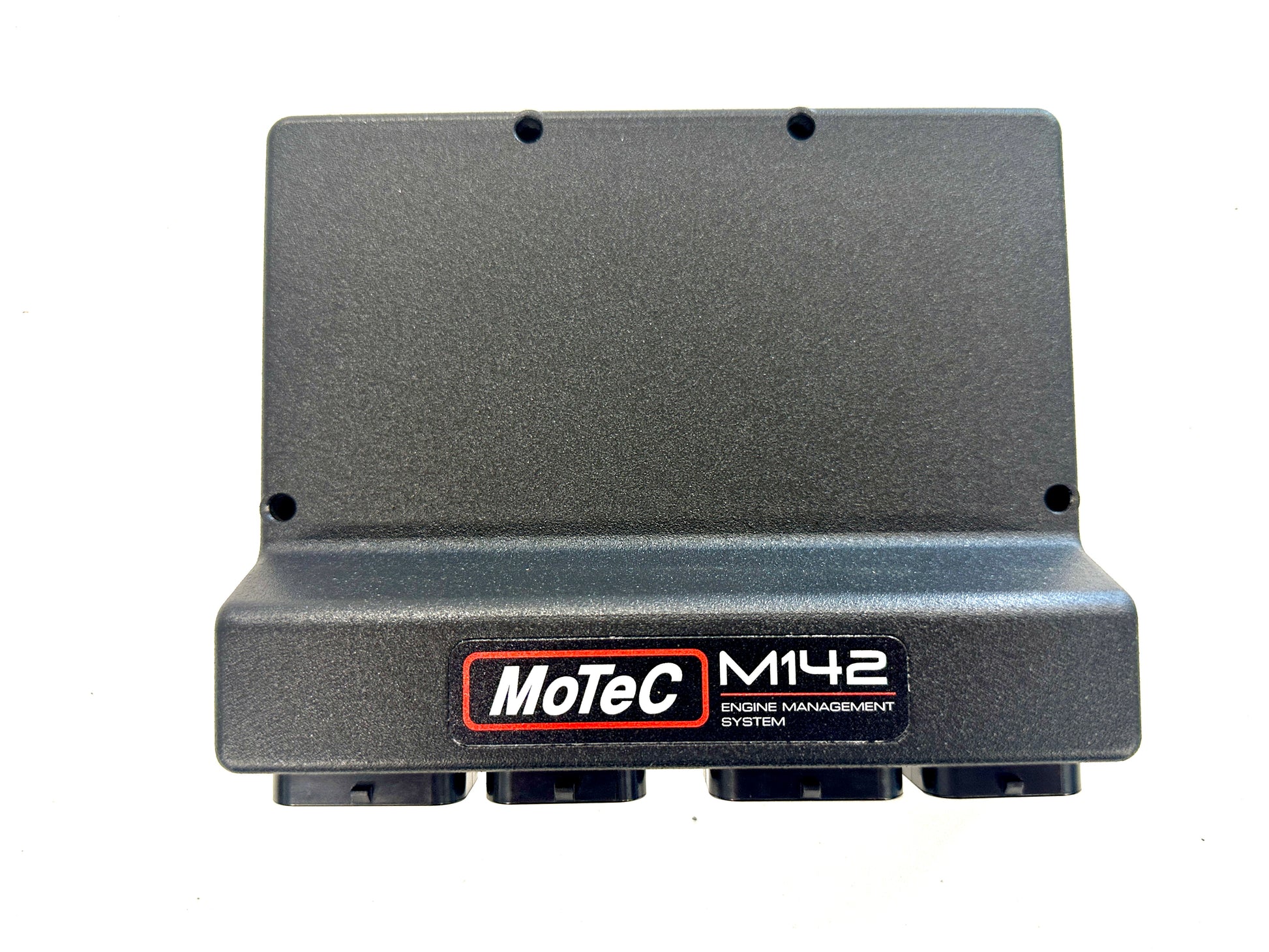

- M142 ECU
- Motec GPRP-DI Pro firmware with Level 2 Logging
- Wiring Diagrams and other info needed for integration
-
STROM B48 Tuning and Calibration Package with option for:
- 93 Octane Stock Turbo - Max 260whp
- 93 Octane Larger Turbo- Max 310whp
- 98+ Octane Larger Turbo - Max 350whp
- E85 flex fuel (with 91 as a base) and Larger Turbo - Max 430whp
- B48 Engine Mounts (CNC)
- B48 Valvetronic Lockout Kit
- B48 Oil Level Dipstick Kit
- B48 Oil Pan Baffle for 11138580122 Pan
- B48 PCV Plug
- B48 TTV Twin Plate Clutch and Flywheel
- E46/B48. Transmission Mounting Kit
- E46/B48. Manual Transmission Shifter Components
- B48D Oil Cooler Plate V4
- B48D 410whp TD04L Turbo
- B48 Fuel Distribution Block
- B48D Air Box
- Sensors
- WHP 7 Bar low side fuel pressure
- Haltech Oil Pressure and Temp
- ECUMaster CAN to Lambda Controller
- LSU 4.9 Lambda Sensor
- ACDelco Flex Fuel Sensor
- Bosch 3 bar TMAP Sensor
- Bosch Ambient Pressure Sensor
- Honeywell 500PSI Clutch Pressure Sensor (or a clutch switch)
- Coolant Temp Sensor for radiator outlet
PLUMBING:
- Modified Charge Pipe (Charge Air System)
- B46 Radiator and Intercooler Mounting Brackets
- B46 Expansion Tank Mounts
- B48 Intercooler Cooling System Kit (includes Mishimoto intercooler radiator)
- B48D Engine Cooling System Kit (Designed to C&R M3 radiator not included)
- Volvo Power Steering E46 Front Mount Kit
Electronics:
- STROM CAN Bus Race Wheel
- x2 ECUMaster ADU7 Displays
- ECUMaster PMU-24DL Power Module
- ECUMaster GPS to CAN
- ECUMaster Battery Isolator Club
- B46 Center Dash Keypad and Dataport Assembly
- Bosch Ignition Control Unit
- Connector Kit for everything
OTHER:
- E46 M150 PMU 16 Weld-In Mount
- E46 M150/ M142 mounting plate with stand off for igniter
- PMU mounting plate kit
- Flex Fuel Sensor Mount
- E46 ADU7 Cluster Mount
- ADU7 Dash Mount for E46 Center Vent Location
- E46 Shifter Cover with switches
